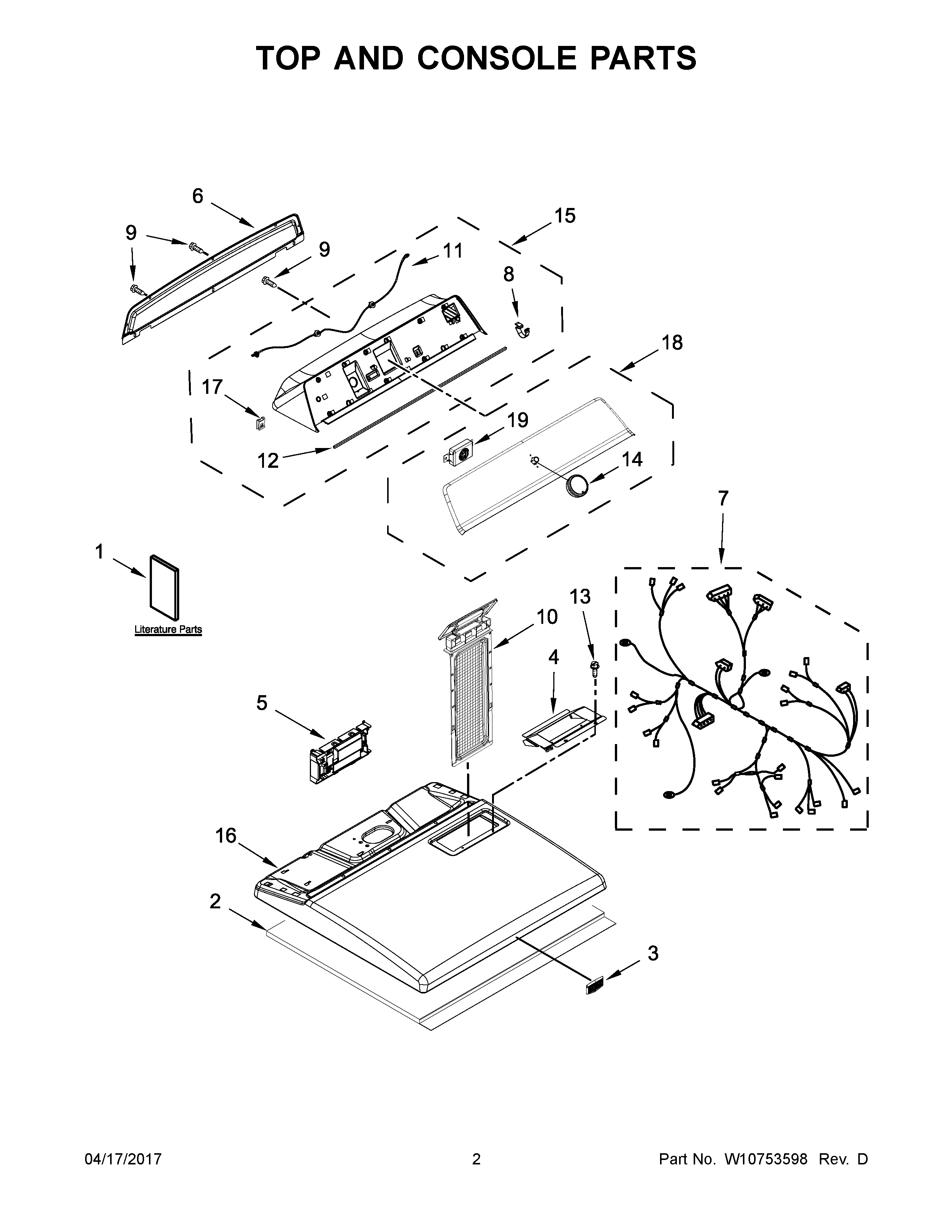

MGDB755DW0 02 – TOP AND CONSOLE PARTSadmin2025-04-26T13:05:21+00:00MGDB755DW0 02 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1C | QUICKSTART GUIDE |
| 1 | USE AND CARE GUIDE |
| 1A | INSTALLATION INSTRUCTIONS |
| 1B | TECH SHEET |
| 2 | MAY W10123956 |
| 3 | BADGE |
| 4 | COLLAR, LINT CHUTE |
| 5 | CONTROL, ELECTRONIC |
| 6 | PANEL, REAR |
| 7 | HARNESS, WIRING |
| 8 | MAY 8312709 |
| 9 | Screw |
| 10 | LINT SCREEN (WHITE) |
| 11 | HARNESS, USER INTERFACE |
| 12 | MAY W10726632 |
| 13 | SCREW |
| 14 | ASSEMBLY, CONTROL KNOB (CHROME) |
| 15 | ASSEMBLY, CONSOLE (WHITE) |
| 16 | TOP (WHITE) |
| 17 | NUT, "U" |
| 18 | ASSEMBLY, FASCIA |
| 19 | ASSEMBLY, SPEAKER |
