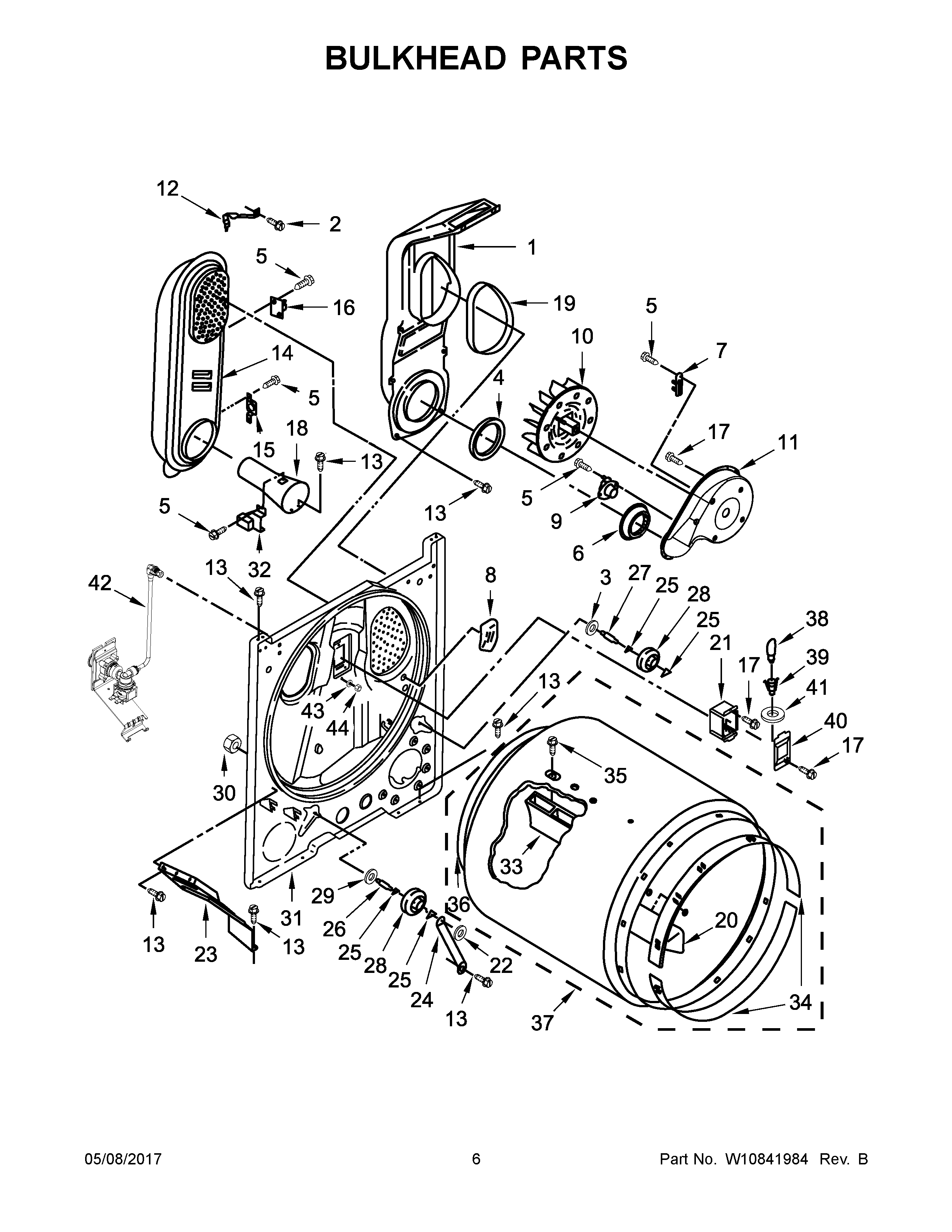

MGDB755DW2 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, LINT CHUTE
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	PAD, SENSOR
9	THERMISTOR
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	THERMOSTAT, HIGH LIMIT SPST (180F)
16	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
17	SCREW
18	FUNNEL, BURNER LIGHT
19	MAY 339956
20	BAFFLE, DRUM (SHORT)
21	MAY 3977373
22	NUT, PUSH ON
23	BRACKET, BULKHEAD CHUTE
24	BRACKET, SUPPORT
25	WASHER, TRI RING
26	MAY W10359270
27	MAY W10359269
28	ROLLER, SUPPORT
29	WASHER
30	MAY W10298789
31	BULKHEAD
32	MAY 338906
33	BAFFLE, DRUM (LONG)
34	Bearing, Ring
35	MAY W10219342
36	SEAL, REAR DRUM
37	ASSEMBLY, DRUM (COMPLETE)
38	MAY 3406124
39	MAY W10214261
40	MAY 3402841
41	SEAL, DRUM LIGHT
42	VALVE AND HOSE ASSEMBLY
43	MAY W10044579
44	NUT, BRASS
