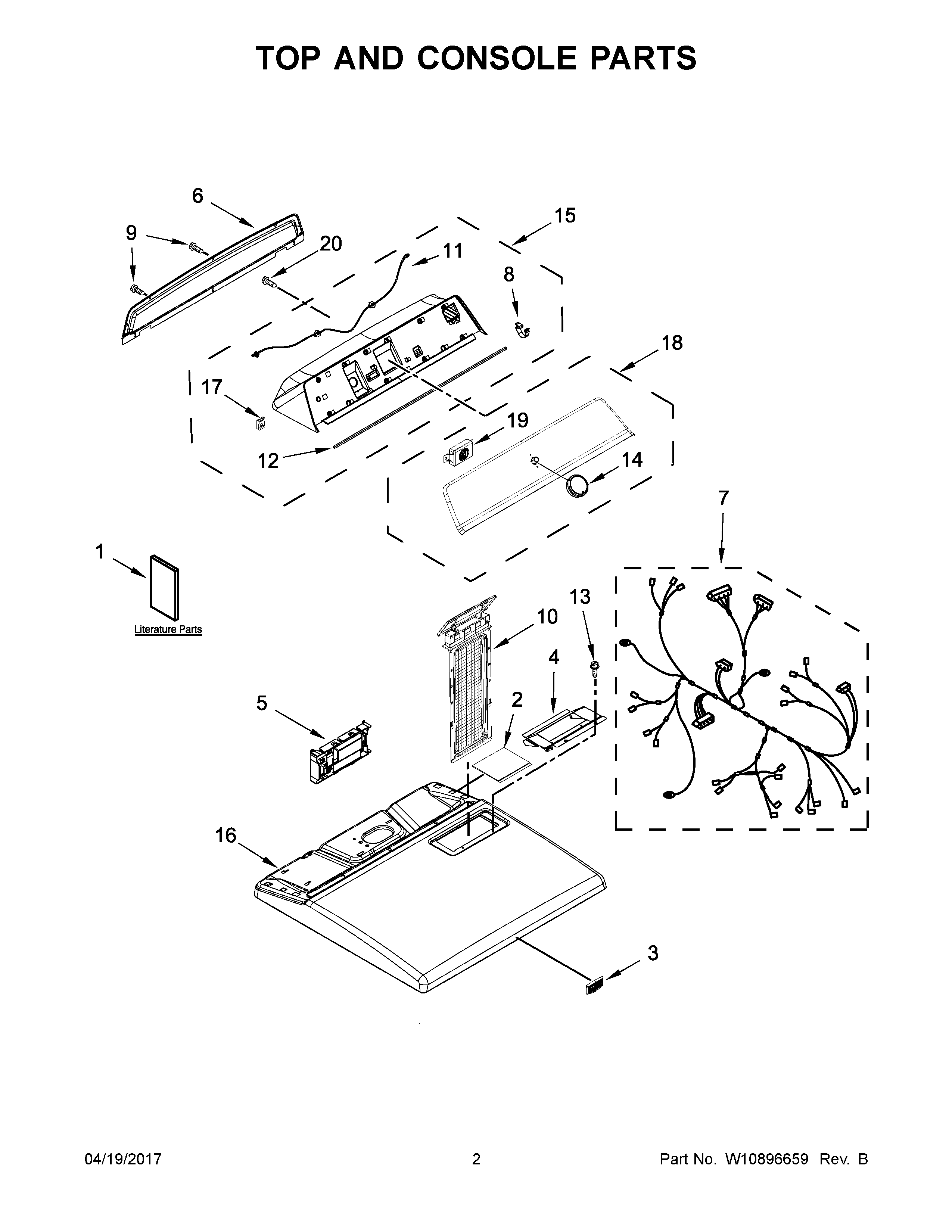

MGDB755DW3 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10848818
1B	TECH SHEET
1C	QUICKSTART GUIDE
1	USE AND CARE GUIDE
2	MAY W10836097
3	BADGE
4	COLLAR, LINT CHUTE
5	CONTROL, ELECTRONIC
6	PANEL, REAR
7	WIRING HARNESS
8	MAY 8312709
9	Screw
10	LINT SCREEN (WHITE)
11	HARNESS, USER INTERFACE
12	MAY W10726632
13	SCREW
14	ASSEMBLY, CONTROL KNOB (CHROME)
15	ASSEMBLY, CONSOLE (WHITE)
16	TOP (WHITE)
17	NUT, "U"
18	ASSEMBLY, FASCIA
19	ASSEMBLY, SPEAKER
20	SCREW
