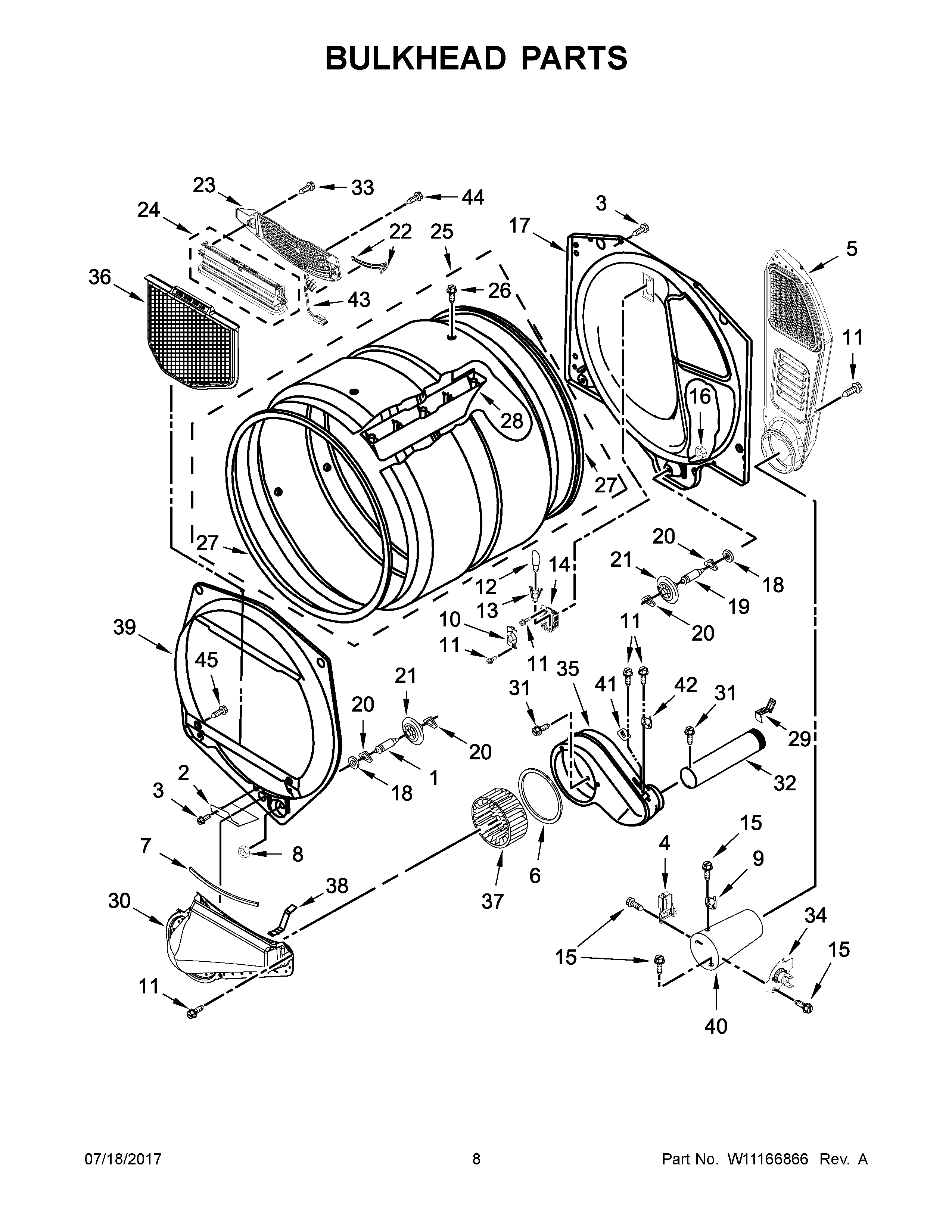

MGDB765FC0 05 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY W10128629
3	SCREW
4	MAY 338906
5	ASSEMBLY, AIR DUCT
6	SEAL, PLATE COVER
7	MAY 697814
8	NUT, HEX
9	THERMOSTAT, HI LIMIT
10	MAY 3402841
11	Screw
12	MAY 3406124
13	MAY W10214261
14	MAY 8578825
15	SCREW,8-18 X 3/8
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SENSOR, ELECTRODE
23	GRILL, OUTLET
24	ASSEMBLY, OUTLET HOUSING
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	BAFFLE, DRUM
29	CLIP, EXHAUST
30	Lint Duct Assembly
31	Screw
32	PIPE, EXHAUST
33	SCREW
34	CUT-OFF, THERMAL
35	MAY 8544362
36	LINT SCREEN (WHITE)
37	MAY W10349492
38	CLIP, SPRING
39	BULKHEAD, FRONT
40	MAY 8573824
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	MAY W10298258
44	SCREW
45	Screw, 8-18 x 1/2
