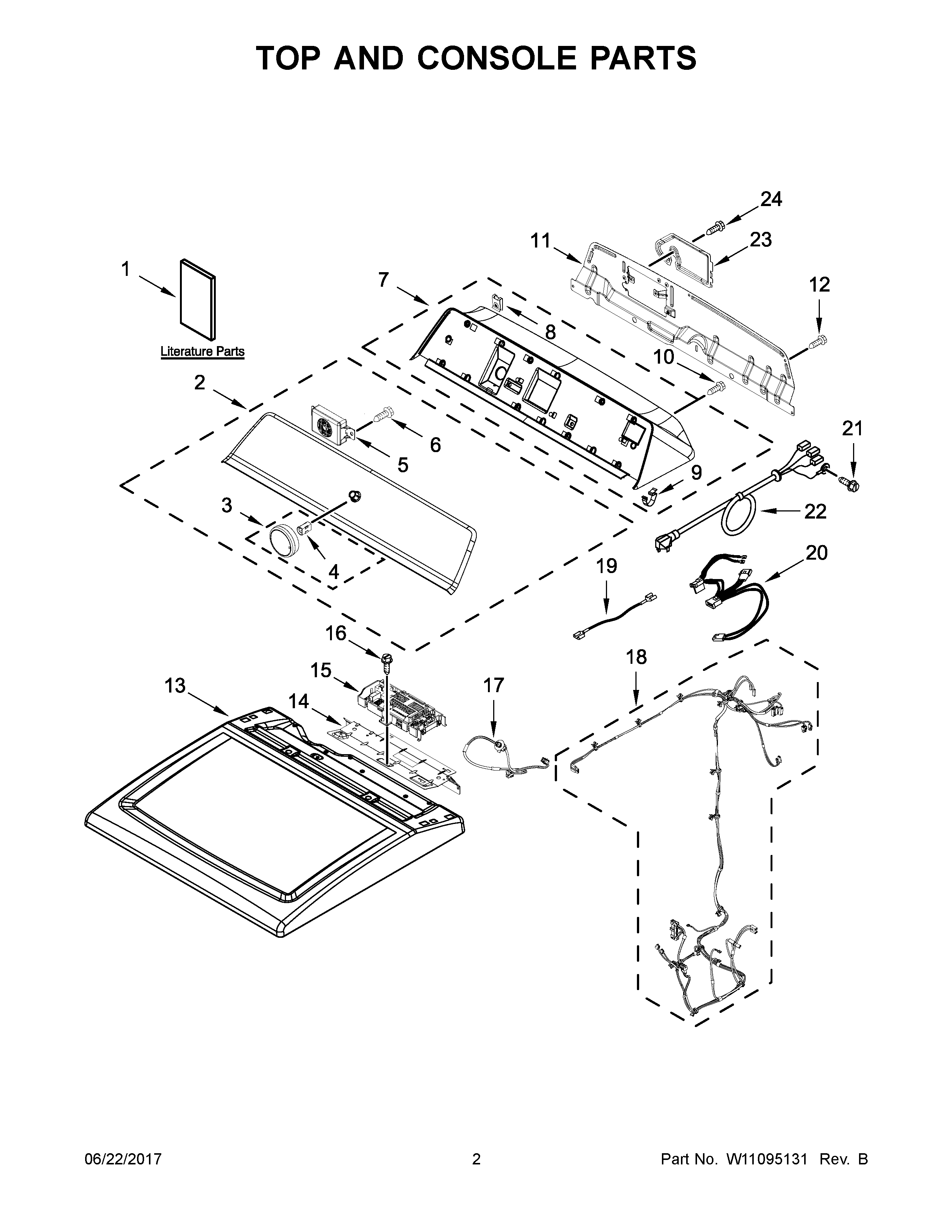

MGDB765FW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1C	QUICK START GUIDE
1B	TECH SHEET
1A	GUIDE, USE AND CARE
2	FASCIA ASSEMBLY
3	ASSEMBLY, CONTROL KNOB (CHROME)
4	CLIP, SPRING
5	ASSEMBLY, SPEAKER
6	MAY 489470
7	CONSOLE (WHITE)
8	NUT, "U"
9	MAY 8312709
10	SCREW
11	PANEL, REAR CONSOLE
12	MAY W10219342
13	TOP (WHITE)
14	BRACKET, ELECTRONIC CONTROL
15	CONTROL, ELECTRONIC
16	SCREW
17	CABLE, USER INTERFACE
18	WIRING HARNESS
19	MAY W10525140
20	MAY W10305870
21	SCREW
22	CORD, POWER
23	COVER, POWER CORD
24	SCREW
