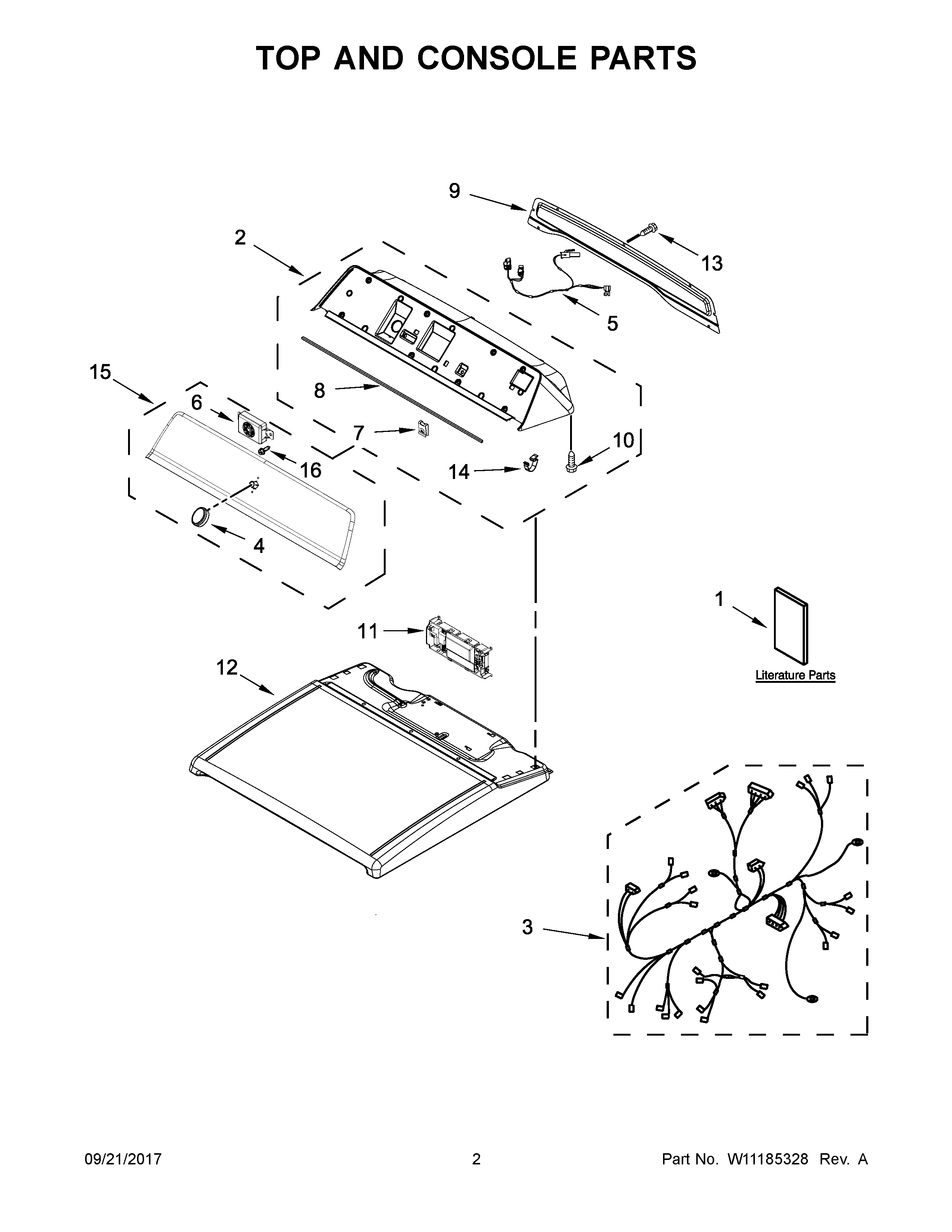

MGDB835DC4 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1B	MAY W10777449
1A	MAY W10680141
1	MAY W10725269
2	ASSEMBLY, CONSOLE (CHROME SHADOW)
3	WIRING HARNESS
4	ASSEMBLY, CONTROL KNOB (CHROME)
5	MAY W10788429
6	ASSEMBLY, SPEAKER
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	SCREW
11	CONTROL, ELECTRONIC
12	TOP (CHROME SHADOW)
13	SCREW
14	MAY 8312709
15	FASCIA
16	MAY 9740849
