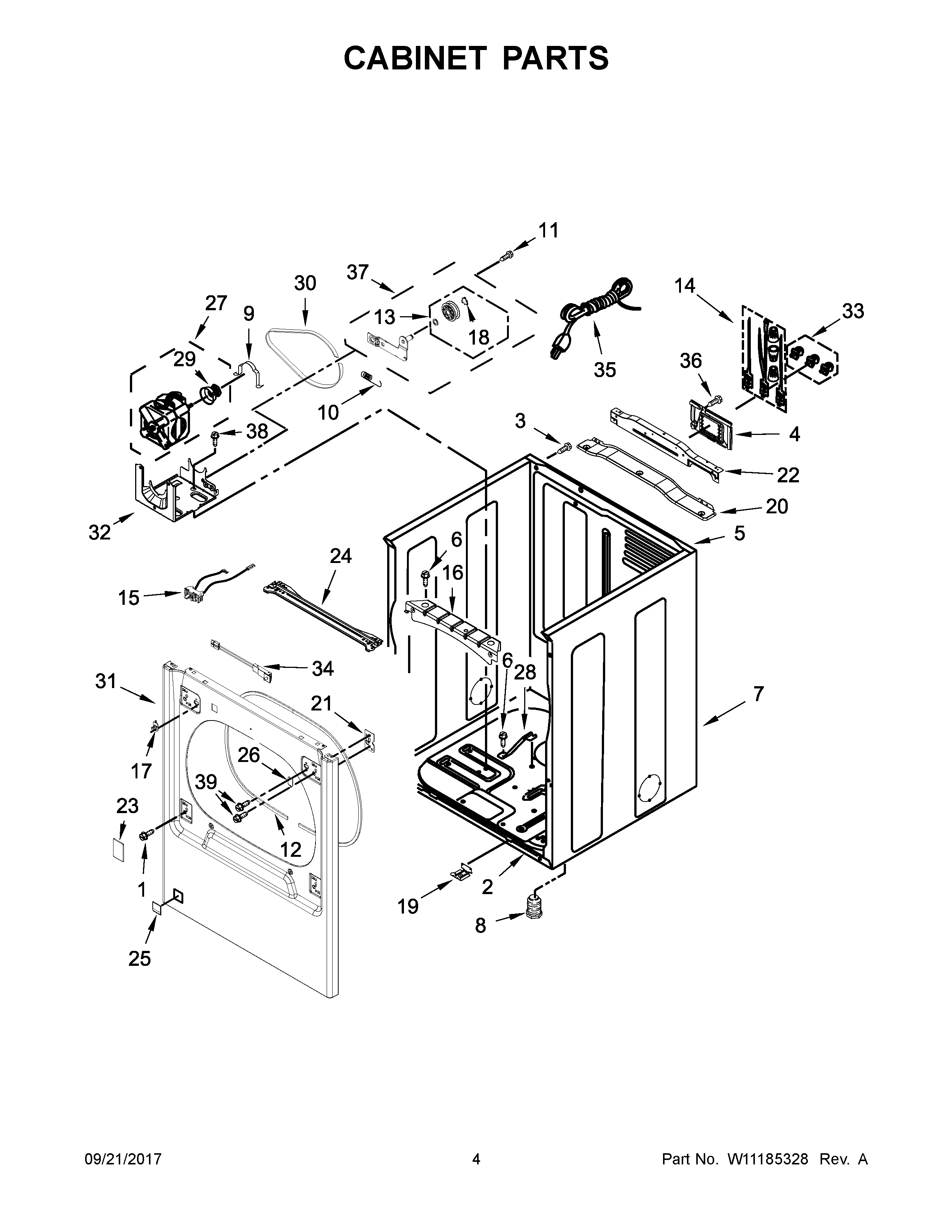

MGDB835DC4 03 – CABINET PARTS

MGDB835DC4 03 – CABINET PARTS

Written by

in

MGDB835DC4 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1SCREW
2MAY W10613683
3MAY W10636208
4MAY 8317339
5MAY W10824895
6Screw
7APANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
7CABINET (CHROME SHADOW (WITH CUTOUT))
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12MAY 3387242
13MAY W10468057
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15SWITCH, BROKEN BELT
16MAY W10632348
17MAY W10778071
18WASHER, TRI RING
19MAY W10632347
20BULKHEAD BRACKET, REAR PANEL
21MAY W10596959
22MAY W10622391
23PLUG, HINGE (CHROME SHADOW)
24MAY W10722502
25PLUG, FRONT PANEL (CHROME SHADOW)
26MAY W10111888
27MAY W10806761
28MAY 8529757
29MAY W10669447
30MAY W10610886
31MAY W10861065
32MAY W10578053
33MAY 279393
34MAY W10459026
35CORD, POWER
36MAY W10567155
37ASSEMBLY, IDLER
38SCREW
39MAY 3400805
