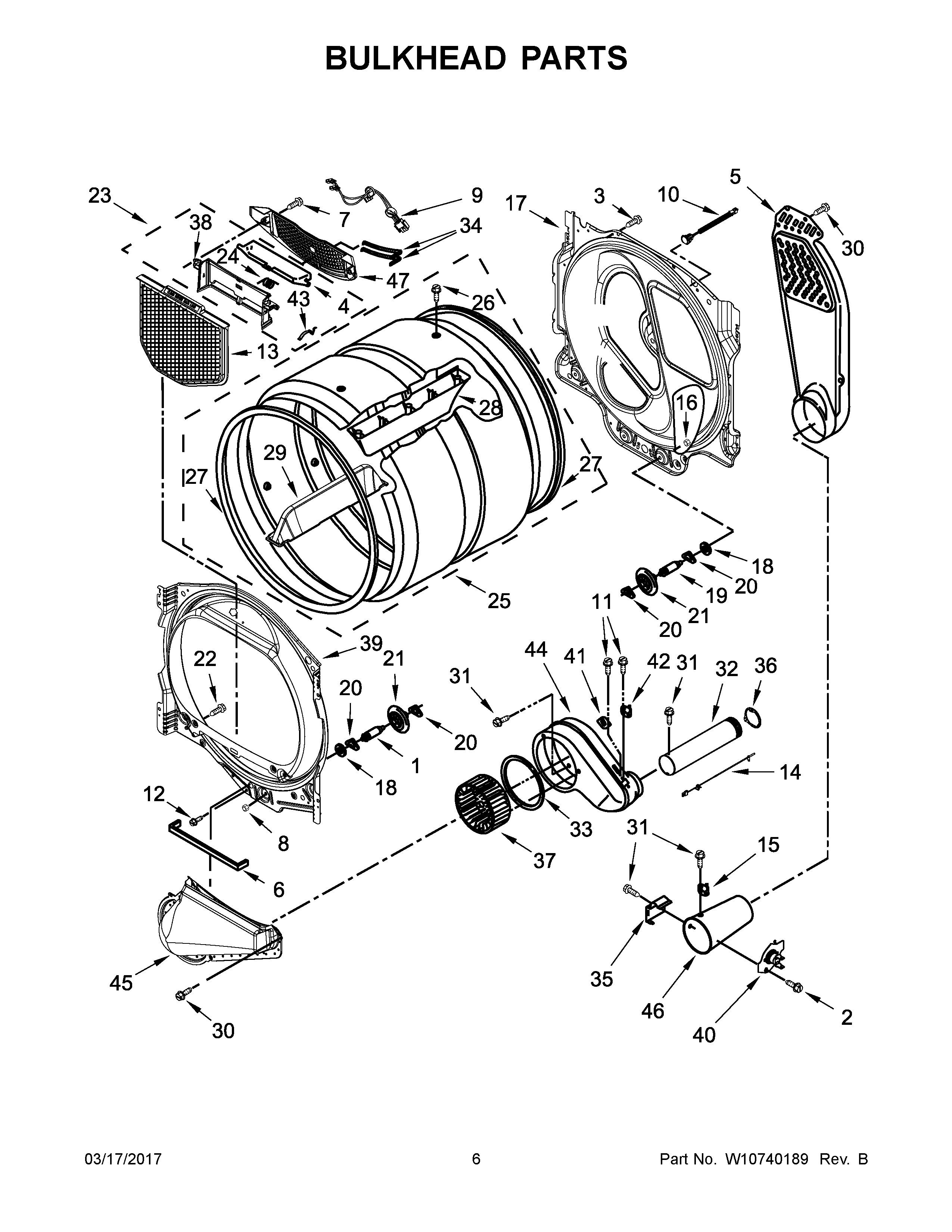

MGDB835DW0 04 – BULKHEAD PARTS

MGDB835DW0 04 – BULKHEAD PARTS

Written by

in

MGDB835DW0 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2Screw
3SCREW
4MAY W10608808
5DUCT, INLET ASSEMBLY
6MAY W10701355
7SCREW
8NUT, HEX
9MAY W10657328
10MAY W10629046
11Screw
12SCREW
13WHITE
14THERMISTOR, GAS INLET
15FUSE, THERMAL (91C)
16NUT, HEX (LEFT HAND THREAD)
17MAY W10638203
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 8533971
23MAY W10608812
24MAY W10219015
25MAY W10626460
26MAY W10219342
27MAY W10664120
28MAY W10767090
29MAY W10767074
30SCREW
31SCREW,8-18 X 3/8
32MAY W10608817
33SEAL, PLATE COVER
34MAY W10608814
35MAY 338906
36MAY W10344699
37MAY 697772
38HOUSING, OUTLET
39MAY W10623481
40CUT-OFF, THERMAL
41THERMOSTAT, HI LIMIT
42THERMISTOR
43MAY W10608815
44MAY W10667717
45MAY W10608803
46MAY 8573824
47MAY W10608813
