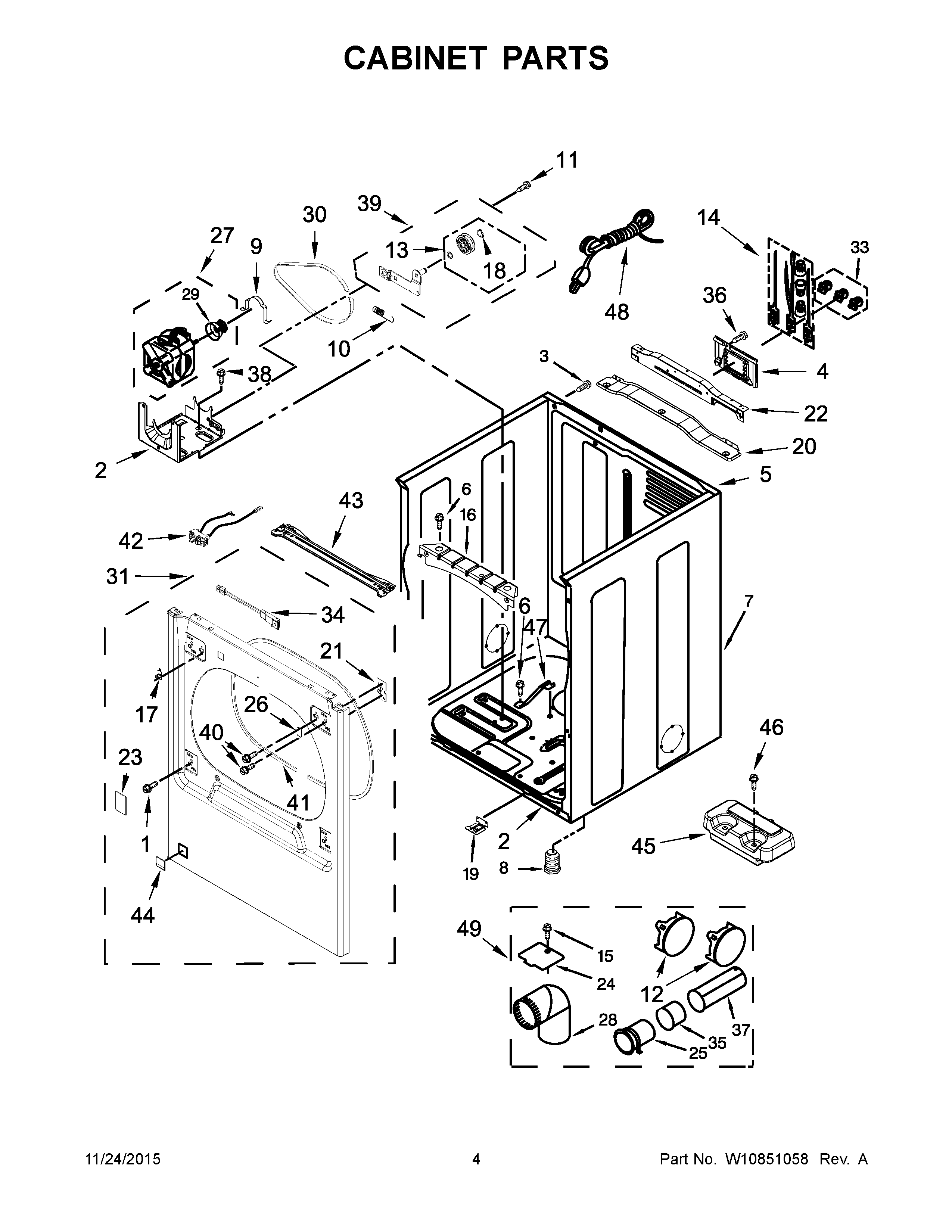

MGDB835DW2 03 – CABINET PARTS

MGDB835DW2 03 – CABINET PARTS

Written by

in

MGDB835DW2 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1SCREW
2MAY W10613683
3MAY W10636208
4MAY 8317339
5MAY W10824895
6Screw
7ACABINET (WHITE (WITHOUT CUTOUT))
7PANEL, SIDE (WHITE (WITH CUTOUT))
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12MAY 49252
13MAY W10468057
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15MAY W10718190
16MAY W10632348
17MAY W10775540
18WASHER, TRI RING
19MAY W10632347
20BULKHEAD BRACKET, REAR PANEL (WHITE)
21MAY W10596959
22MAY W10622391
23PLUG, HINGE (WHITE)
24MAY 3394331
25PIPE, EXHAUST (MEDIUM)
26MAY W10111888
27MAY W10806761
28MAY 49026
29MAY W10669447
30MAY W10610886
31MAY W10777207
32MAY W10578053
33MAY 279393
34MAY W10459026
35MAY 8563750
36MAY W10567155
37PIPE, EXHAUST (LONG)
38SCREW
39ASSEMBLY, IDLER
40MAY 3400805
41MAY 3387242
42SWITCH, BROKEN BELT
43MAY W10722502
44PLUG, FRONT PANEL (WHITE)
45MAY W10622383
46MAY W10660592
47MAY 8529757
48CORD, POWER
49KIT, 4-WAY VENT
