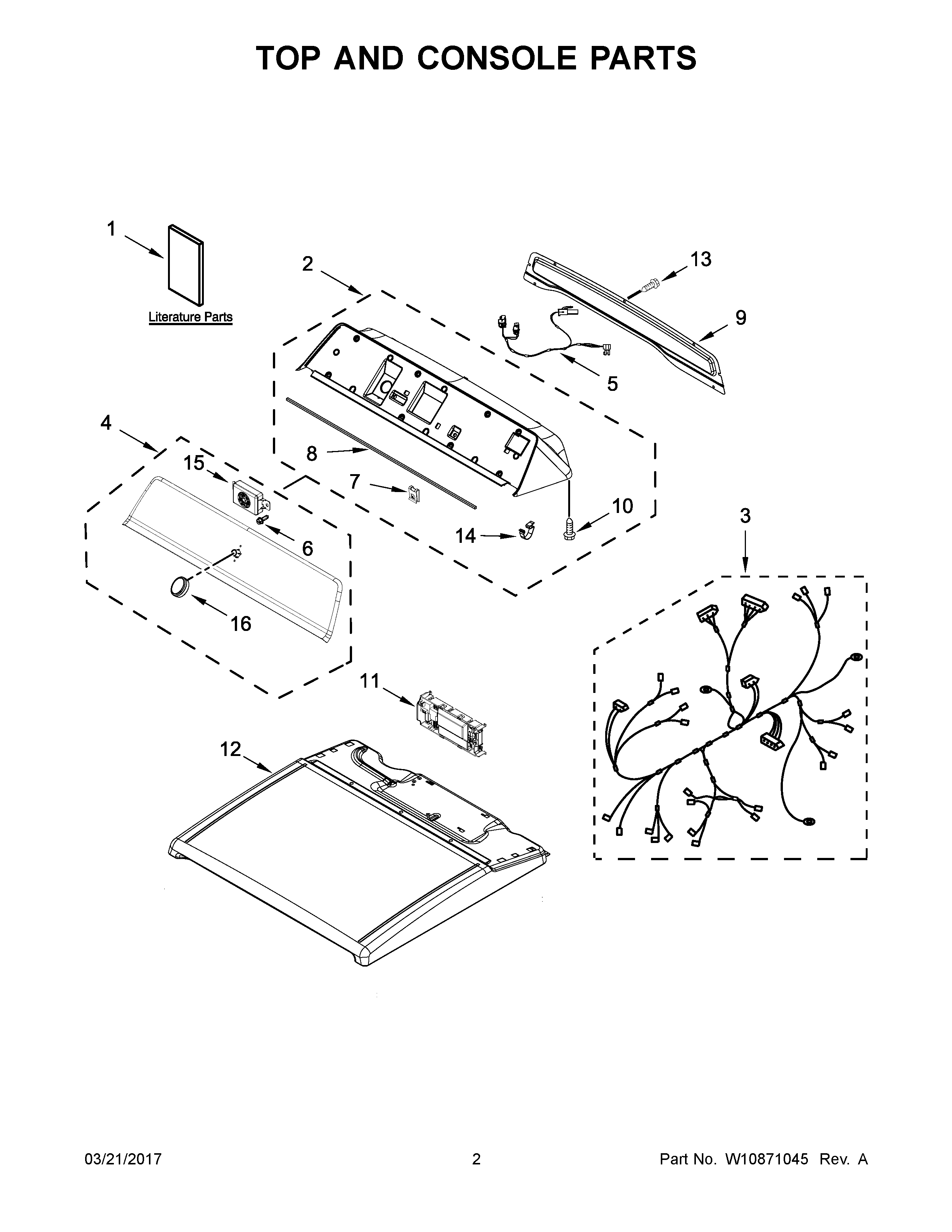

MGDB835DW3 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10725269
1B	MAY W10777449
1A	MAY W10680141
2	ASSEMBLY, CONSOLE (WHITE)
3	WIRING HARNESS
4	FASCIA
5	MAY W10788429
6	MAY 489470
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	SCREW
11	CONTROL, ELECTRONIC
12	MAY W10508981
13	SCREW
14	MAY 8312709
15	ASSEMBLY, SPEAKER
16	ASSEMBLY, CONTROL KNOB (CHROME)
