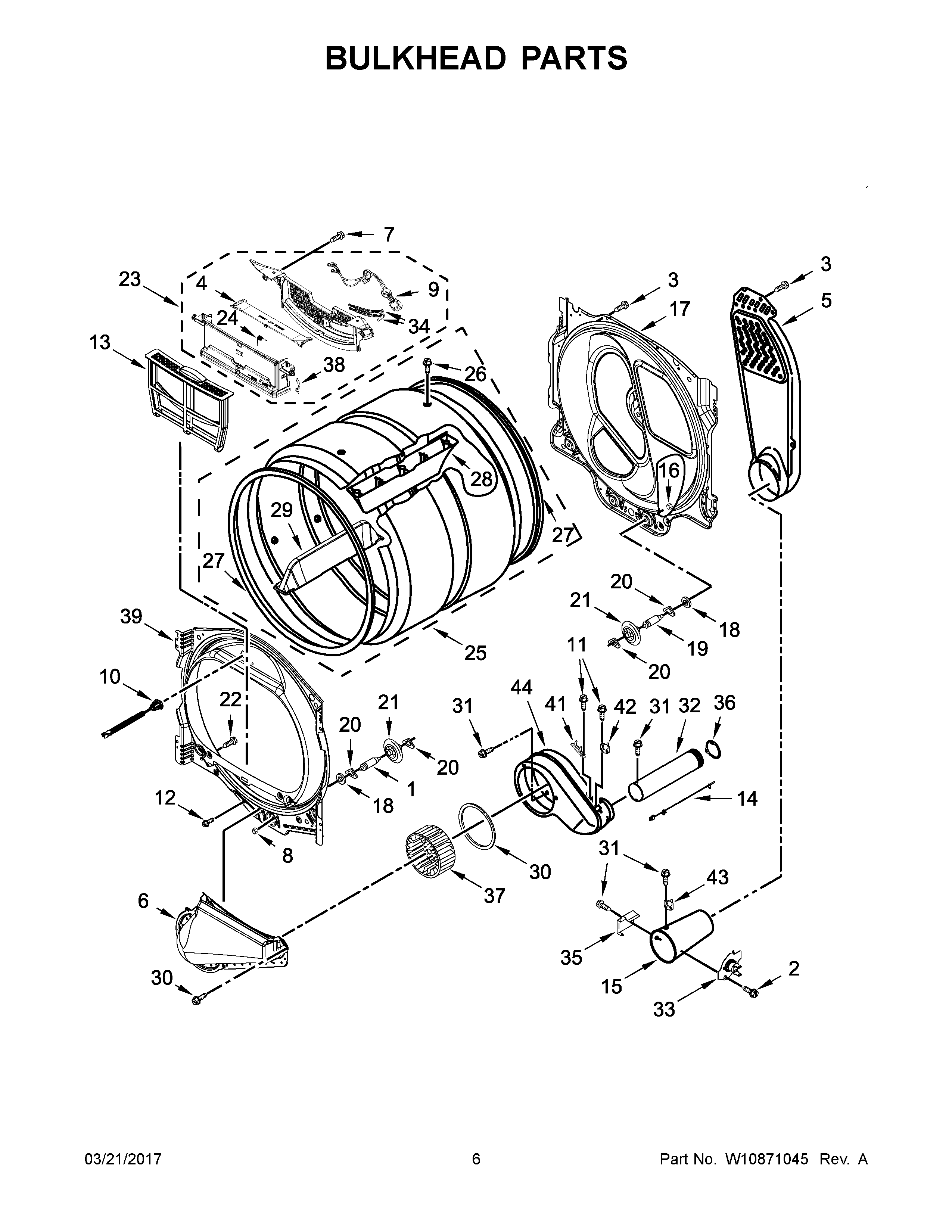

MGDB835DW3 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	Screw
3	SCREW
4	MAY W10608808
5	DUCT, INLET ASSEMBLY
6	MAY W10868982
7	SCREW
8	NUT, HEX
9	MAY W10657328
10	MAY W10629046
11	Screw
12	SCREW
13	WHITE
14	THERMISTOR, GAS INLET
15	MAY 8573824
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10638203
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SCREW
23	MAY W10608812
24	MAY W10219015
25	MAY W10626460
26	MAY W10219342
27	MAY W10664120
28	MAY W10767074
29	MAY W10767090
30	MAY W10868675
31	SCREW,8-18 X 3/8
32	MAY W10608817
33	CUT-OFF, THERMAL
34	MAY W10608814
35	MAY 338906
36	MAY W10344699
37	MAY 697772
38	MAY W10608815
39	MAY W10861007
40	MAY W10608813
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	THERMOSTAT, HI LIMIT
44	MAY W10667717
