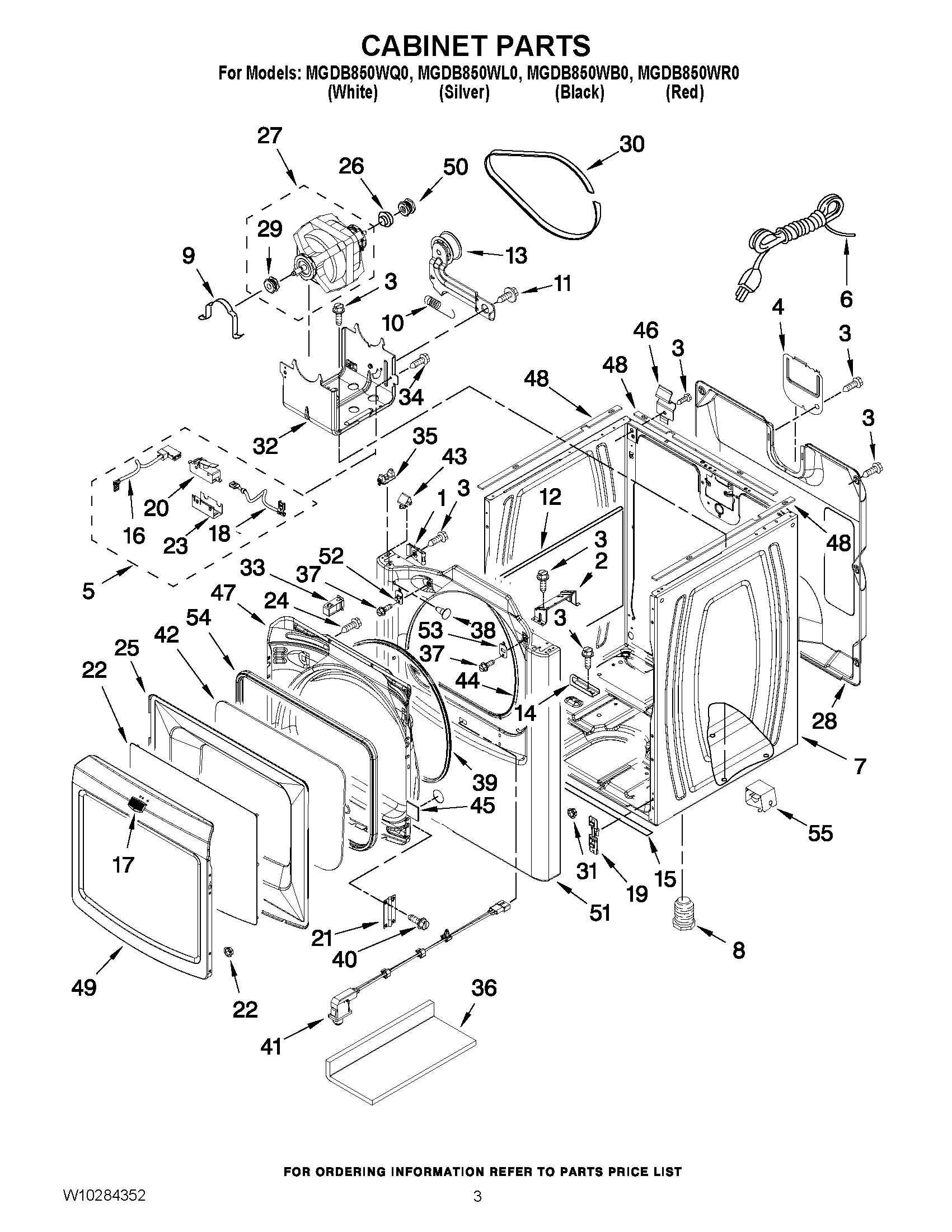

MGDB850WL0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Ground (2)
2	MAY 8544753
3	SCREW
4	MAY 8558833
5	MAY 8564012
6	MAY 344020
7	MAY W10223155
7	MAY W10283292
7	CABINET (INCLUDES ITEM 51 )
7	MAY W10283291
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY W10123956
13	MAY 8547160
14	BRACKET, PIPE
15	MAY W10224768
16	MAY 8539892
17	MAY W10323735
18	Wire, Belt (To Protector)
19	MAY 3394083
20	Switch, Broken Belt
21	HINGE ASSEMBLY (BLACK)
21	HINGE ASSEMBLY
21	MAY W10252473
21	HINGE ASSEMBLY (MERCURY SILVER)
22	MAY W10111858
23	MAY 8564011
24	SCREW, 10-16 X 1/2
25	MAY W10111880
26	MAY 3393657
27	MAY W10136932
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	Plug, Hole
32	MAY 8547158
33	MAY W10111905
34	Bolt, 6-20 x 1 1/4
35	LOCATOR, SNAP-DOWN
36	MAY W10215725
37	MAY 3400805
38	MAY W10144494
39	MAY W10221653
40	MAY 342055
41	MAY W10201785
42	MAY W10111857
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY 8573008
45	MAY W10256411
45	PLUG, FRONT PANEL (WHITE)
45	MAY W10249704
46	MAY 238088
47	MAY W10252475
47	MAY W10111910
47	MAY W10111900
47	Door, Inner
48	SEAL, FOAM
49	MAY W10252478
49	MAY W10252479
49	MAY W10111909
49	Door, Outer
50	MAY W10136930
51	MAY W10283299
51	PANEL, FRONT (SILVER)
51	PANEL, FRONT (BLACK)
51	MAY W10235342
52	Strike, Door
53	MAY W10111888
54	MAY W10111859
55	Cover-Gas Valve
