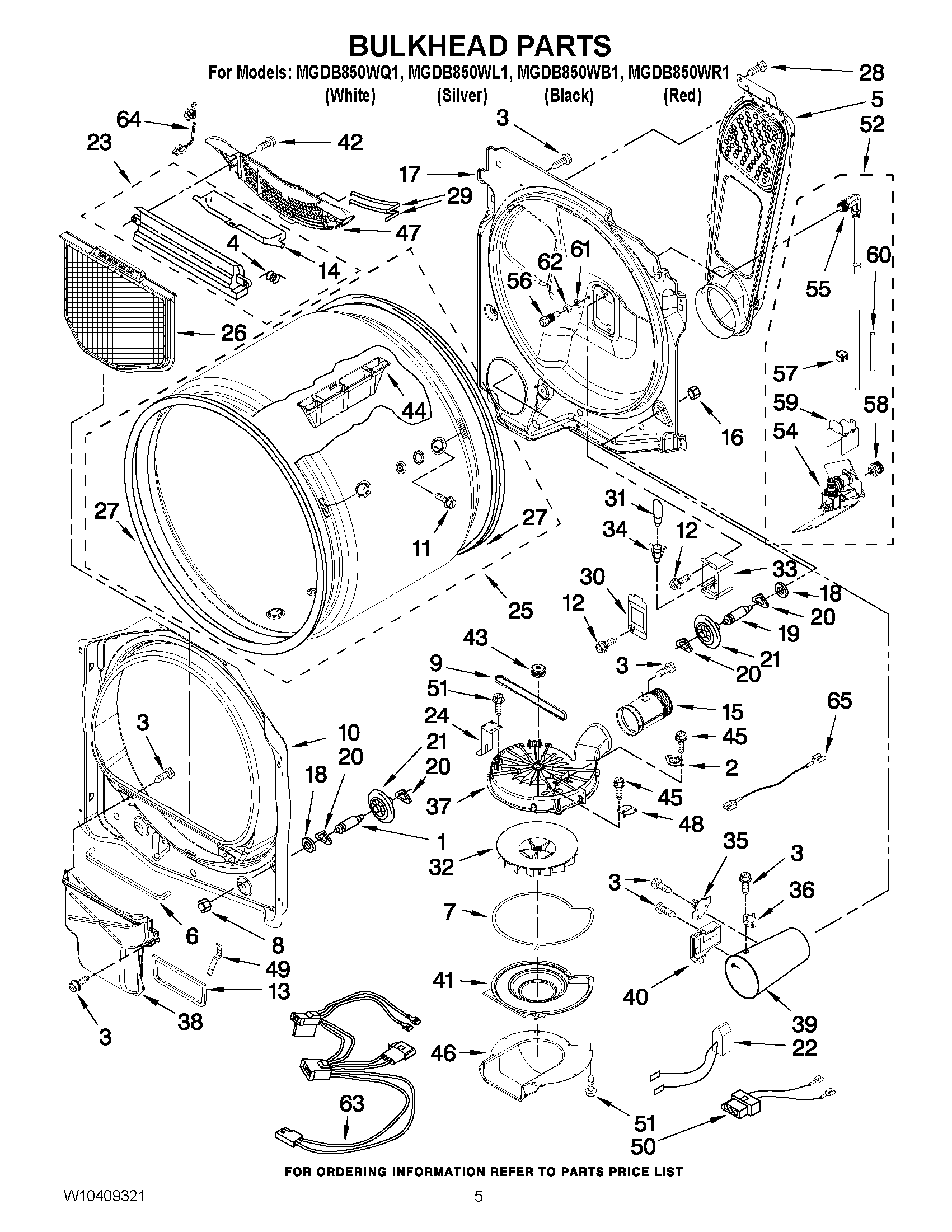

MGDB850WL1 03 – BULKHEAD PARTSadmin2025-04-26T11:29:02+00:00MGDB850WL1 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | THERMISTOR |
| 3 | SCREW,8-18 X 3/8 |
| 4 | Spring, Lint Screen Door |
| 5 | MAY 8544757 |
| 6 | MAY 697813 |
| 7 | MAY 8573068 |
| 8 | NUT, HEX |
| 9 | MAY 8544742 |
| 10 | MAY 8557244 |
| 11 | MAY W10219342 |
| 12 | SCREW |
| 13 | MAY 8544721 |
| 14 | MAY 3394984 |
| 15 | MAY 8544755 |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY W10139797 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | MAY 8539889 |
| 23 | MAY 3394985 |
| 24 | BRACKET, HOUSING BLOWER |
| 25 | MAY 8557269 |
| 26 | MAY W10049370 |
| 27 | MAY W10116344 |
| 28 | Screw |
| 29 | SENSOR, ELECTRODE |
| 30 | MAY 3402841 |
| 31 | MAY 3406124 |
| 32 | MAY 8544737 |
| 33 | MAY 3977373 |
| 34 | Socket Assembly |
| 35 | CUT-OFF, THERMAL |
| 36 | THERMOSTAT, HI LIMIT |
| 37 | MAY W10256512 |
| 38 | MAY 8544786 |
| 39 | MAY 8573824 |
| 40 | MAY 338906 |
| 41 | BLOWER, COVER (INCLUDES, ITEM 11) |
| 42 | SCREW |
| 43 | MAY 8544739 |
| 44 | MAY 8563860 |
| 45 | MAY 3350424 |
| 46 | MAY 8544718 |
| 47 | Grille, Outlet |
| 48 | THERMAL FUSE (91C) |
| 49 | MAY 8573070 |
| 50 | Connector Sensor |
| 51 | MAY 97787 |
| 52 | Valve & Hose (Complete) |
| 54 | MAY W10129424 |
| 55 | NOZZLE & HOSE ASSEMBLY (INCLUDES ITEMS, 59, 64, 65 & 66 ) |
| 56 | MAY W10277503 |
| 57 | MAY W10044599 |
| 58 | MAY W10044605 |
| 59 | MAY W10160575 |
| 60 | MAY W10345257 |
| 61 | MAY W10044579 |
| 62 | Nut, Brass 9/16 - 24 x 1/2 |
| 63 | Harness, Gas |
| 64 | MAY W10171086 |
| 65 | Jumper-Tco Hi-Limit |
