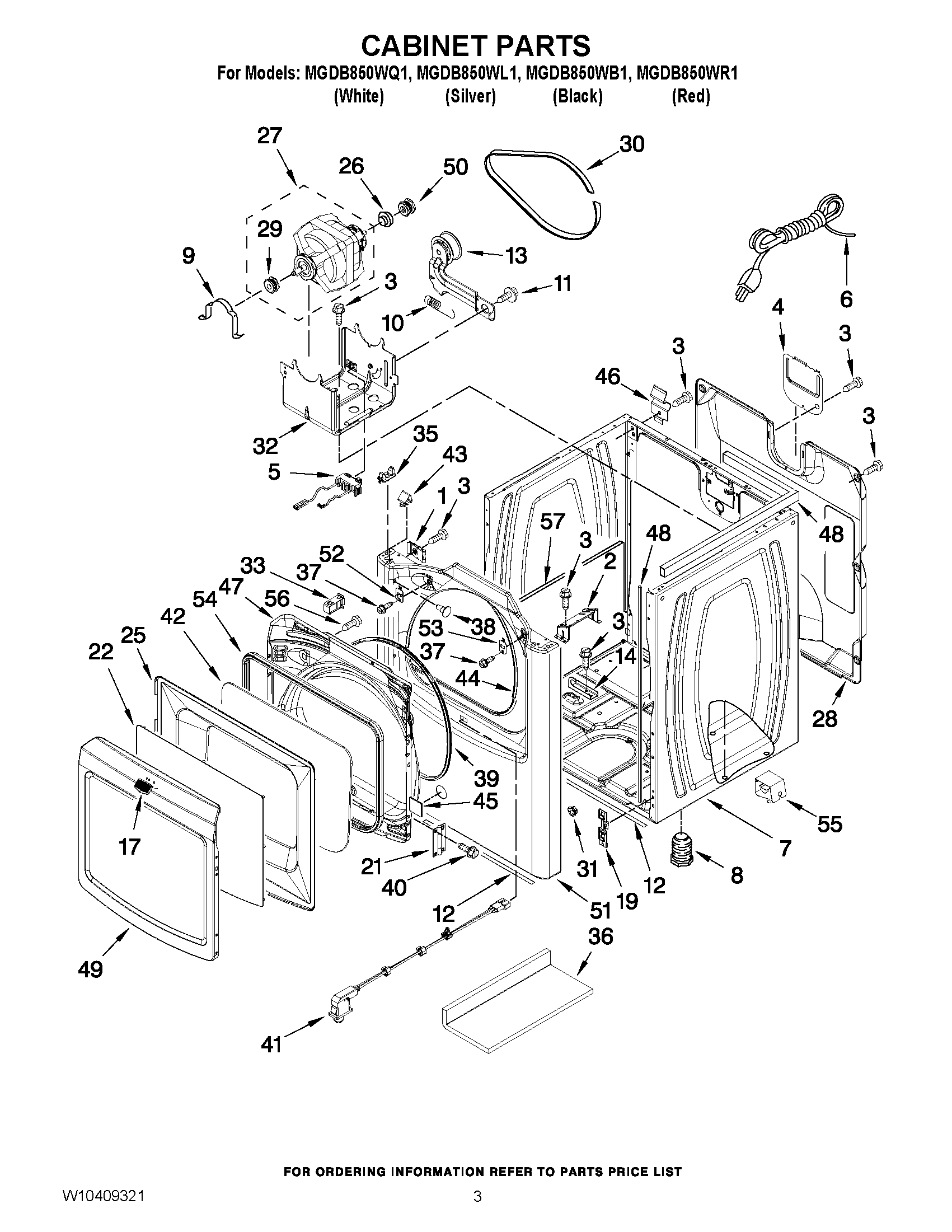

MGDB850WQ1 02 – CABINET PARTS
Written by
in
MGDB850WQ1 02 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
Clip, Ground (2)
2
MAY 8544753
3
SCREW
4
MAY 8558833
5
MAY W10314253
6
MAY 344020
7
MAY W10283291
7
MAY W10223155
7
MAY W10283292
7
CABINET (INCLUDES ITEM 51 )
8
MAY 3392100
9
MAY 660658
10
MAY 3387374
11
SCREW
12
MAY W10224768
13
MAY 8547160
14
BRACKET, PIPE
17
MAY W10323735
19
MAY 3394083
21
HINGE ASSEMBLY
22
WINDOW, OUTER
25
MAY W10111880
26
MAY 3393657
27
MAY W10136932
28
MAY W10140148
29
MAY W10139247
30
MAY W10136934
31
Plug, Hole
32
MAY 8547158
33
MAY W10111905
35
LOCATOR, SNAP-DOWN
36
MAY W10215725
37
MAY 3400805
38
MAY W10144494
39
MAY W10221653
40
MAY 342055
41
MAY W10201785
42
MAY W10111857
43
Lock-Top Front (2)
44
MAY W10044490
45
MAY 8573008
45
PLUG, FRONT PANEL (WHITE)
45
MAY W10249704
45
MAY W10256411
46
MAY 238088
47
MAY W10252475
47
MAY W10111910
47
MAY W10111900
47
Door, Inner
48
Seal, Foam
49
Door, Outer
49
MAY W10111909
49
MAY W10252478
49
MAY W10252479
50
MAY W10136930
51
MAY W10252449
51
MAY W10252448
51
MAY W10236204
51
PANEL, FRONT (WHITE)
52
Strike, Door
53
MAY W10111888
54
MAY W10111859
55
Cover-Gas Valve
56
SCREW, 10-16 X 1/2
57
MAY W10123956
←
