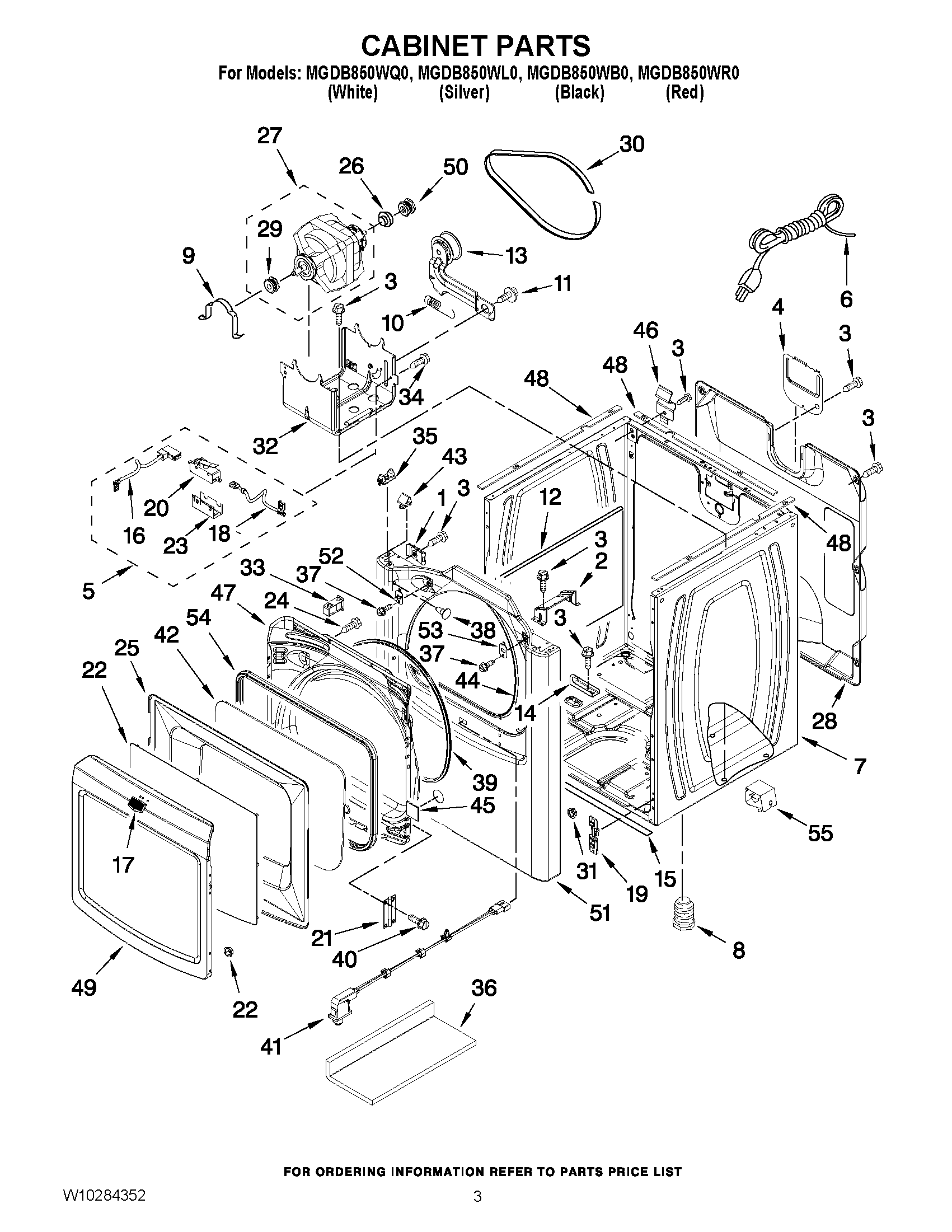

MGDB850WR0 02 – CABINET PARTSadmin2025-04-26T11:30:38+00:00MGDB850WR0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | Clip, Ground (2) |
| 2 | MAY 8544753 |
| 3 | SCREW |
| 4 | MAY 8558833 |
| 5 | MAY 8564012 |
| 6 | MAY 344020 |
| 7 | MAY W10223155 |
| 7 | MAY W10283292 |
| 7 | CABINET (INCLUDES ITEM 51 ) |
| 7 | MAY W10283291 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY W10123956 |
| 13 | MAY 8547160 |
| 14 | BRACKET, PIPE |
| 15 | MAY W10224768 |
| 16 | MAY 8539892 |
| 17 | MAY W10323735 |
| 18 | Wire, Belt (To Protector) |
| 19 | MAY 3394083 |
| 20 | Switch, Broken Belt |
| 21 | HINGE ASSEMBLY (BLACK) |
| 21 | HINGE ASSEMBLY |
| 21 | MAY W10252473 |
| 21 | HINGE ASSEMBLY (MERCURY SILVER) |
| 22 | MAY W10111858 |
| 23 | MAY 8564011 |
| 24 | SCREW, 10-16 X 1/2 |
| 25 | MAY W10111880 |
| 26 | MAY 3393657 |
| 27 | MAY W10136932 |
| 28 | MAY W10140148 |
| 29 | MAY W10139247 |
| 30 | MAY W10136934 |
| 31 | Plug, Hole |
| 32 | MAY 8547158 |
| 33 | MAY W10111905 |
| 34 | Bolt, 6-20 x 1 1/4 |
| 35 | LOCATOR, SNAP-DOWN |
| 36 | MAY W10215725 |
| 37 | MAY 3400805 |
| 38 | MAY W10144494 |
| 39 | MAY W10221653 |
| 40 | MAY 342055 |
| 41 | MAY W10201785 |
| 42 | MAY W10111857 |
| 43 | Lock-Top Front (2) |
| 44 | MAY W10044490 |
| 45 | MAY 8573008 |
| 45 | MAY W10256411 |
| 45 | PLUG, FRONT PANEL (WHITE) |
| 45 | MAY W10249704 |
| 46 | MAY 238088 |
| 47 | MAY W10252475 |
| 47 | MAY W10111910 |
| 47 | MAY W10111900 |
| 47 | Door, Inner |
| 48 | SEAL, FOAM |
| 49 | MAY W10252478 |
| 49 | MAY W10252479 |
| 49 | MAY W10111909 |
| 49 | Door, Outer |
| 50 | MAY W10136930 |
| 51 | MAY W10283299 |
| 51 | PANEL, FRONT (SILVER) |
| 51 | PANEL, FRONT (BLACK) |
| 51 | MAY W10235342 |
| 52 | Strike, Door |
| 53 | MAY W10111888 |
| 54 | MAY W10111859 |
| 55 | Cover-Gas Valve |
