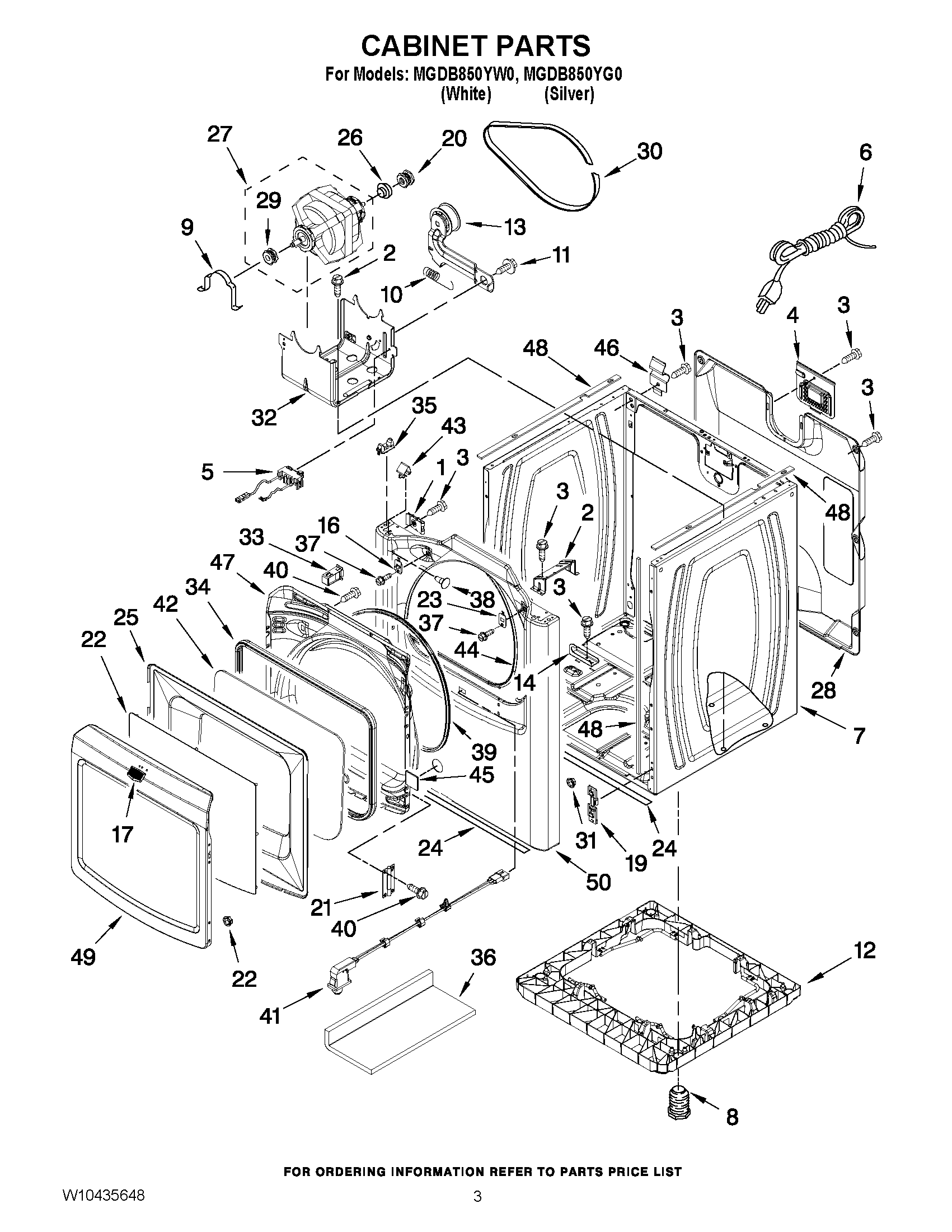

MGDB850YG0 02 – CABINET PARTS

Products

Position	Product
1	Clip, Ground (2)
2	MAY 8544753
3	SCREW
4	MAY 8558833
5	MAY W10314253
6	MAY 344020
7	CABINET (INCLUDES ITEM 51 )
7	MAY W10338830
8	MAY W10363894
9	MAY 660658
10	MAY 3387374
11	SCREW
12	RISER, FULL
13	MAY 8547160
14	BRACKET, PIPE
16	Strike, Door
17	MAY W10323735
19	MAY 3394083
20	MAY W10136930
21	HINGE ASSEMBLY (MERCURY SILVER)
22	WINDOW, OUTER
23	MAY W10111888
24	MAY W10224768
25	BEZEL, DOOR
26	MAY 3393657
27	MAY W10136932
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	Plug, Hole
32	MAY 8547158
33	MAY W10111905
34	MAY W10111859
35	LOCATOR, SNAP-DOWN
36	MAY W10215725
37	MAY 3400805
38	MAY W10144494
39	MAY W10221653
40	MAY 342055
41	MAY W10201785
42	MAY W10111857
43	Lock-Top Front (2)
44	MAY W10044490
45	PLUG, FRONT PANEL (COSMETALLIC)
45	PLUG, FRONT PANEL (WHITE)
46	MAY 238088
47	Door, Inner
47	DOOR, INNER (GRANITE)
48	SEAL, FOAM
49	MAY W10252478
49	DOOR, OUTER (GRANITE)
50	MAY W10235342
50	MAY W10252457
