MGDB850YW2 05 – BURNER ASSEMBLY

MGDB850YW2 05 – BURNER ASSEMBLY

Written by

in

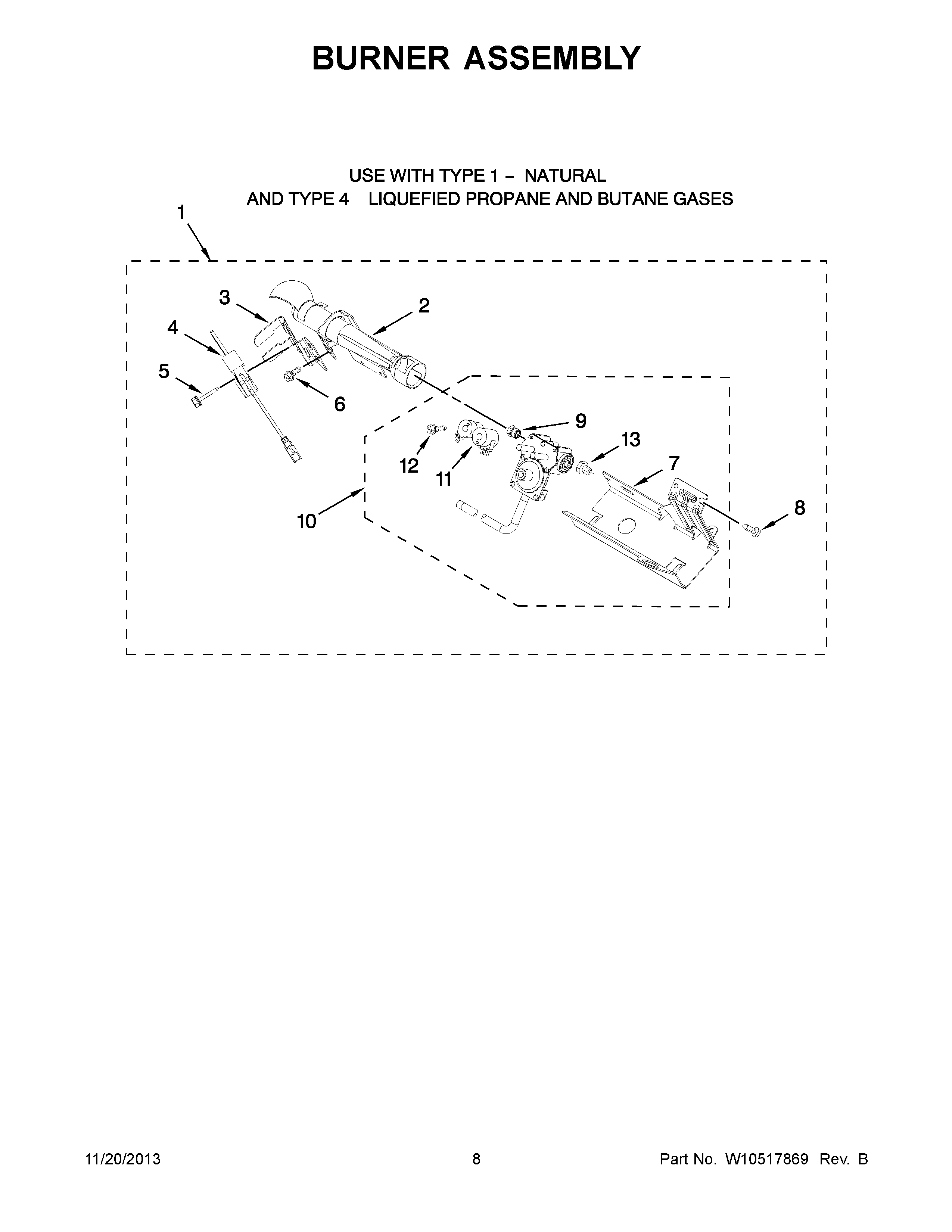

MGDB850YW2 05 – BURNER ASSEMBLY

Products

PositionProduct
NICONVERSION KIT
NILINER (NOT A SERVICEABLE PART)
1MAY W10398742
2MAY 8573010
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY W10183823
8SCREW
9ORIFICE, BURNER (TYPE 1 (NATURAL))
9Orifice, Burner (Type 4 (Propane))
10MAY W10304606
11MAY W10368268
13MAY W10295523
