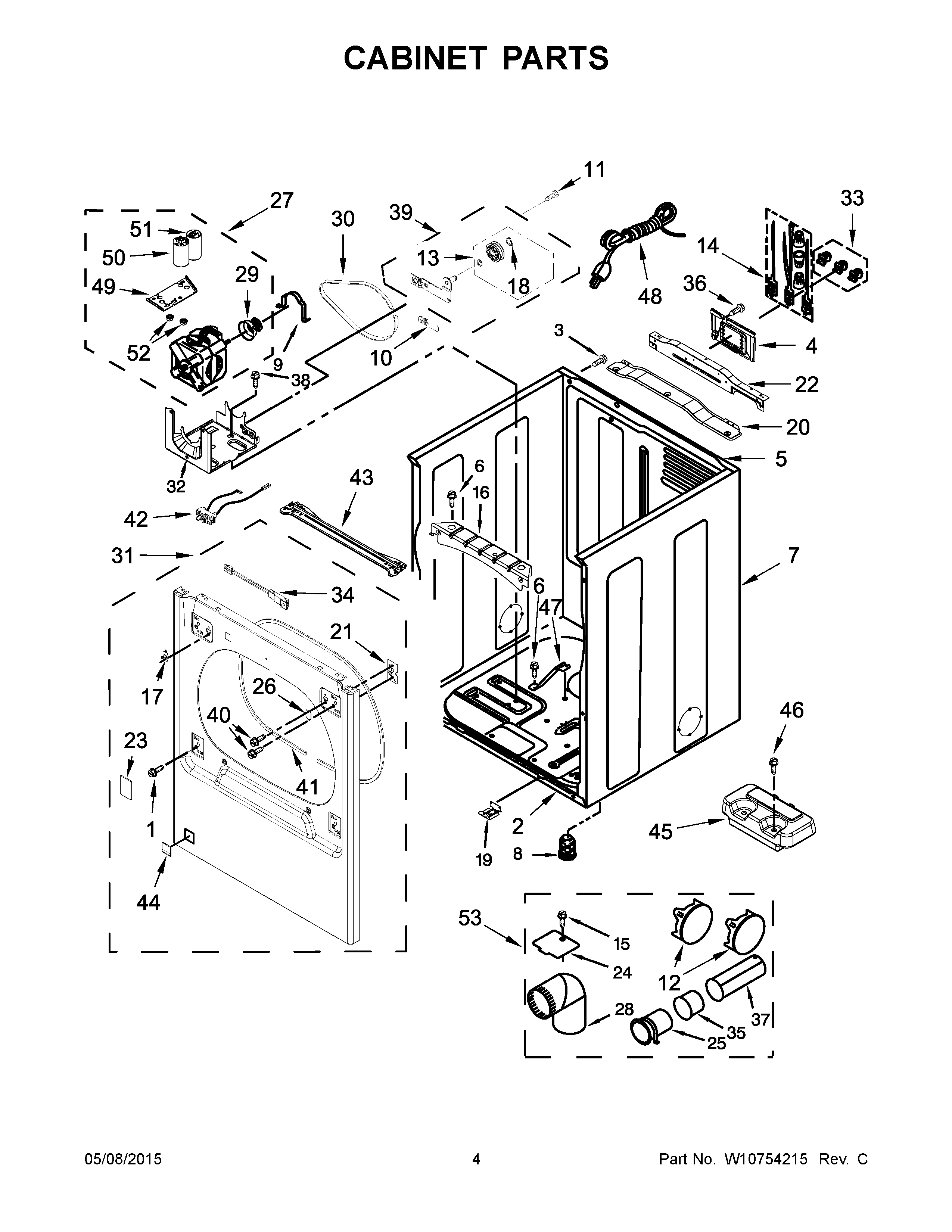

MGDB855DC0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 342055
2	MAY W10613683
3	MAY W10636208
4	MAY 8317339
5	MAY W10622361
6	Screw
7B	CABINET (WHITE (WITHOUT CUTOUT))
7A	CABINET (CHROME SHADOW (WITH CUTOUT))
7	PANEL, SIDE (WHITE (WITH CUTOUT))
7C	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12A	MAY W10151499
12	MAY 49252
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SCREW
16	MAY W10632348
17	MAY W10775540
18	WASHER, TRI RING
19	MAY W10632347
20	BULKHEAD BRACKET, REAR PANEL (WHITE)
20A	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
21	MAY W10596959
22	MAY W10622391
23A	PLUG, HINGE (CHROME SHADOW)
23	PLUG, HINGE (WHITE)
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	MAY W10111888
27	MAY W10687541
28	MAY 49026
29	PULLEY, MOTOR
30	MAY W10610886
31A	MAY W10777208
31	MAY W10777207
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	MAY 8563750
36	MAY W10567155
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	MAY 3400805
41	MAY 3387242
42	SWITCH, BROKEN BELT
43	MAY W10722502
44A	PLUG, FRONT PANEL (CHROME SHADOW)
44	PLUG, FRONT PANEL (WHITE)
45	MAY W10622383
46	MAY W10660592
47	MAY 8529757
48	CORD, POWER
49	BRACKET ASSEMBLY
50	CAPACITOR, MOTOR RUN
51	CAPACITOR, MOTOR START
52	NUT
53	KIT, 4-WAY VENT
