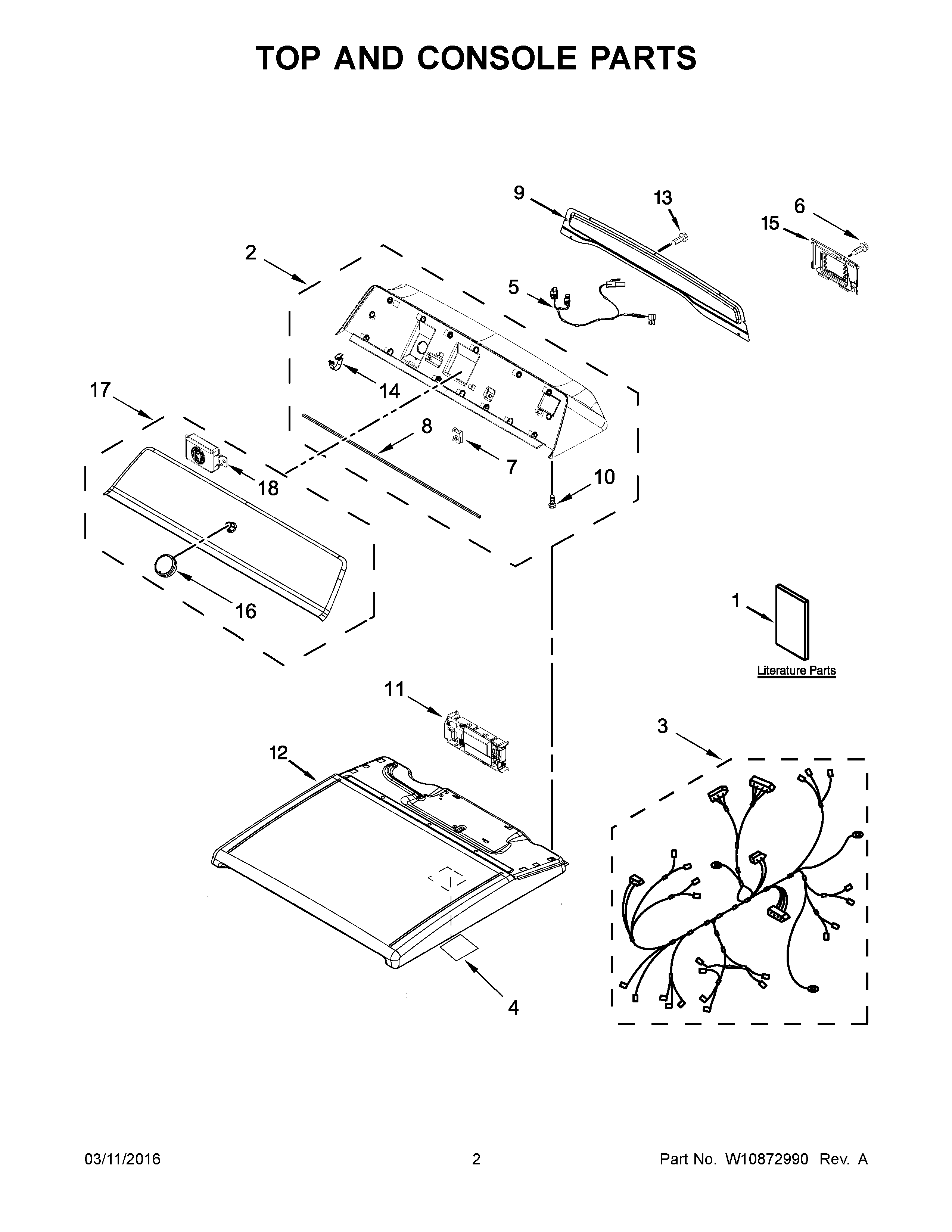

MGDB855DC3 02 – TOP AND CONSOLE PARTS

MGDB855DC3 02 – TOP AND CONSOLE PARTS

Written by

in

MGDB855DC3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10725269
1CMAY W10720372
1BMAY W10777449
1AMAY W10680141
2ASSEMBLY, CONSOLE (WHITE)
2AASSEMBLY, CONSOLE (CHROME SHADOW)
3WIRING HARNESS
4MAY W10123956
5MAY W10788429
6MAY 489470
7NUT, "U"
8MAY W10726632
9MAY W10622402
10MAY W10219342
11MAY W10793300
12ATOP (CHROME SHADOW)
12MAY W10508981
13MAY 9740849
14MAY 8312709
15MAY 8317339
16ASSEMBLY, CONTROL KNOB (CHROME)
17MAY W10740703
18ASSEMBLY, SPEAKER
