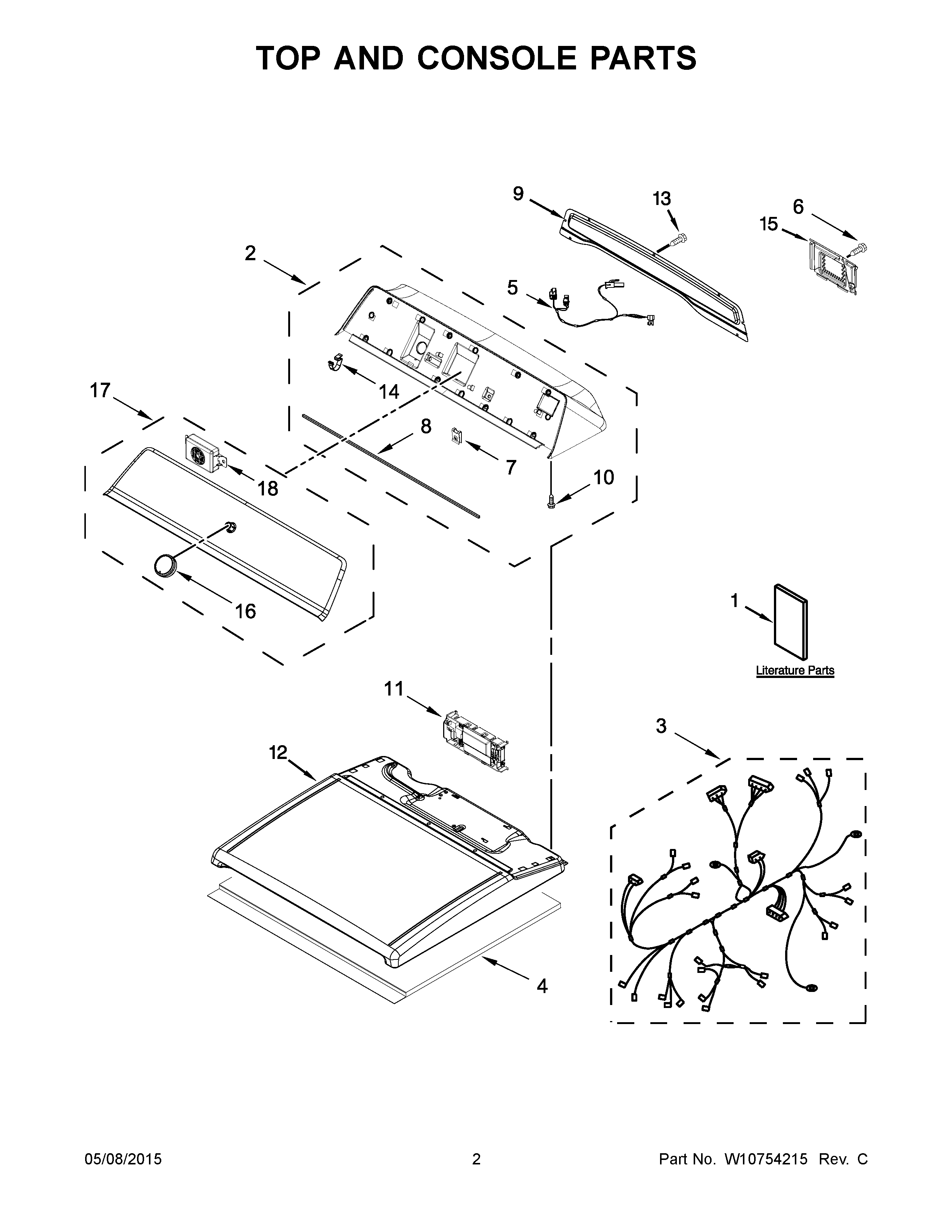

MGDB855DW0 02 – TOP AND CONSOLE PARTS

MGDB855DW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGDB855DW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AMAY W10680141
1CMAY W10720372
1MAY W10725269
1BMAY W10680150
2AASSEMBLY, CONSOLE (CHROME SHADOW)
2ASSEMBLY, CONSOLE (WHITE)
3MAY W10706041
4MAY W10123956
5MAY W10593673
6MAY 489470
7NUT, "U"
8MAY W10726632
9MAY W10622402
10MAY W10219342
11MAY W10771987
12ATOP (CHROME SHADOW)
12MAY W10508981
13MAY 9740849
14MAY 8312709
15MAY W10316167
16ASSEMBLY, CONTROL KNOB (CHROME)
17MAY W10618908
18ASSEMBLY, SPEAKER
