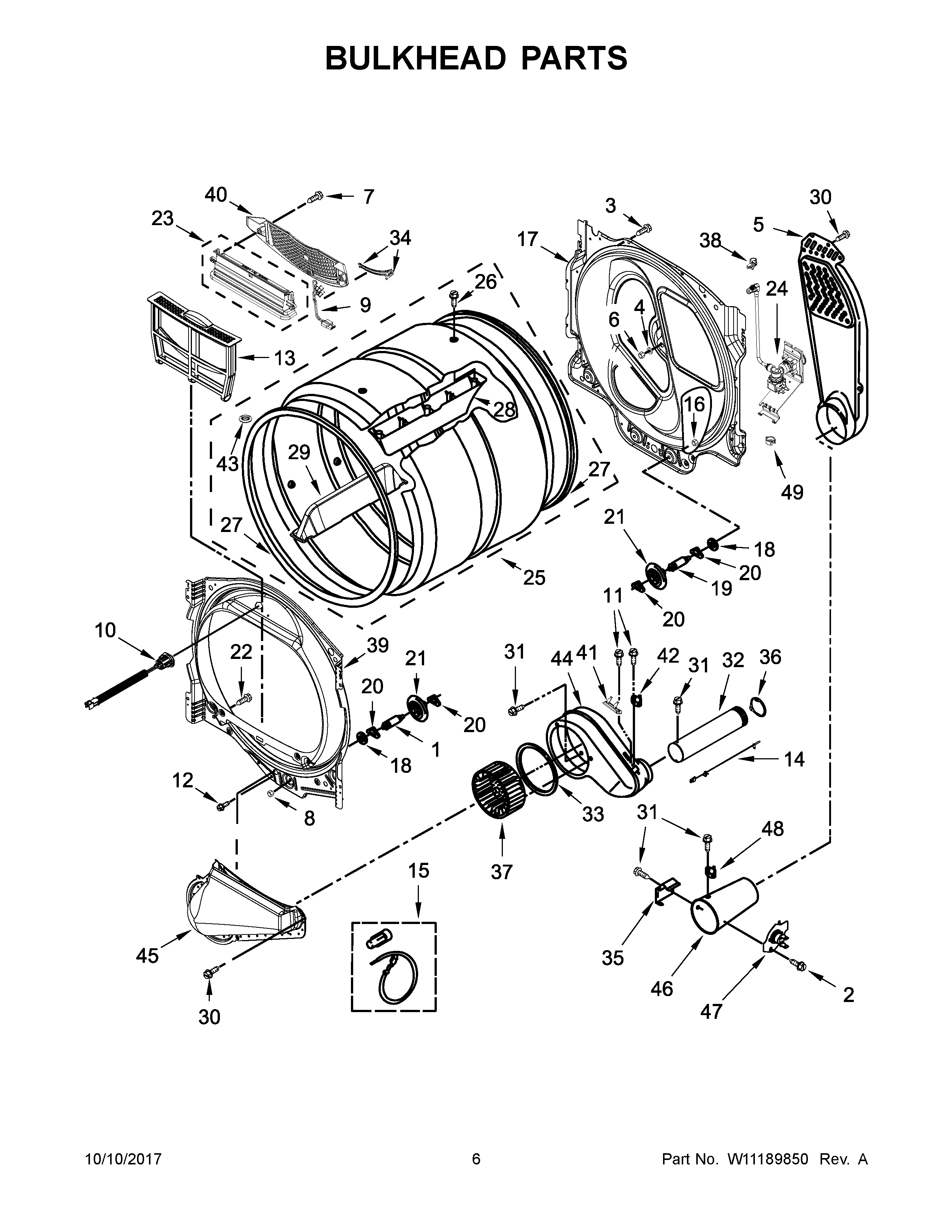

MGDB855DW4 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	Screw
3	SCREW
4	MAY W10044579
5	DUCT, INLET ASSEMBLY
6	NUT, BRASS
7	SCREW
8	NUT, HEX
9	MAY W10657328
10	MAY W10629046
11	Screw
12	SCREW
13	WHITE
14	THERMISTOR, GAS INLET
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	BULKHEAD, REAR
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10460893
23	MAY W10608812
24	VALVE AND HOSE ASSEMBLY
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10664120
28	MAY W10767090
29	MAY W10767074
30	MAY 8533974
31	SCREW,8-18 X 3/8
32	MAY W10608817
33	MAY W10868675
34	MAY W10608814
35	MAY 338906
36	MAY W10344699
37	MAY 697772
38	MAY 3391018
39	MAY W10861007
40	MAY W10608813
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	CAP, PLUG
44	MAY W10667717
45	MAY W10868982
46	MAY 8573824
47	CUT-OFF, THERMAL
48	THERMOSTAT, HI LIMIT
49	MAY W10044599
