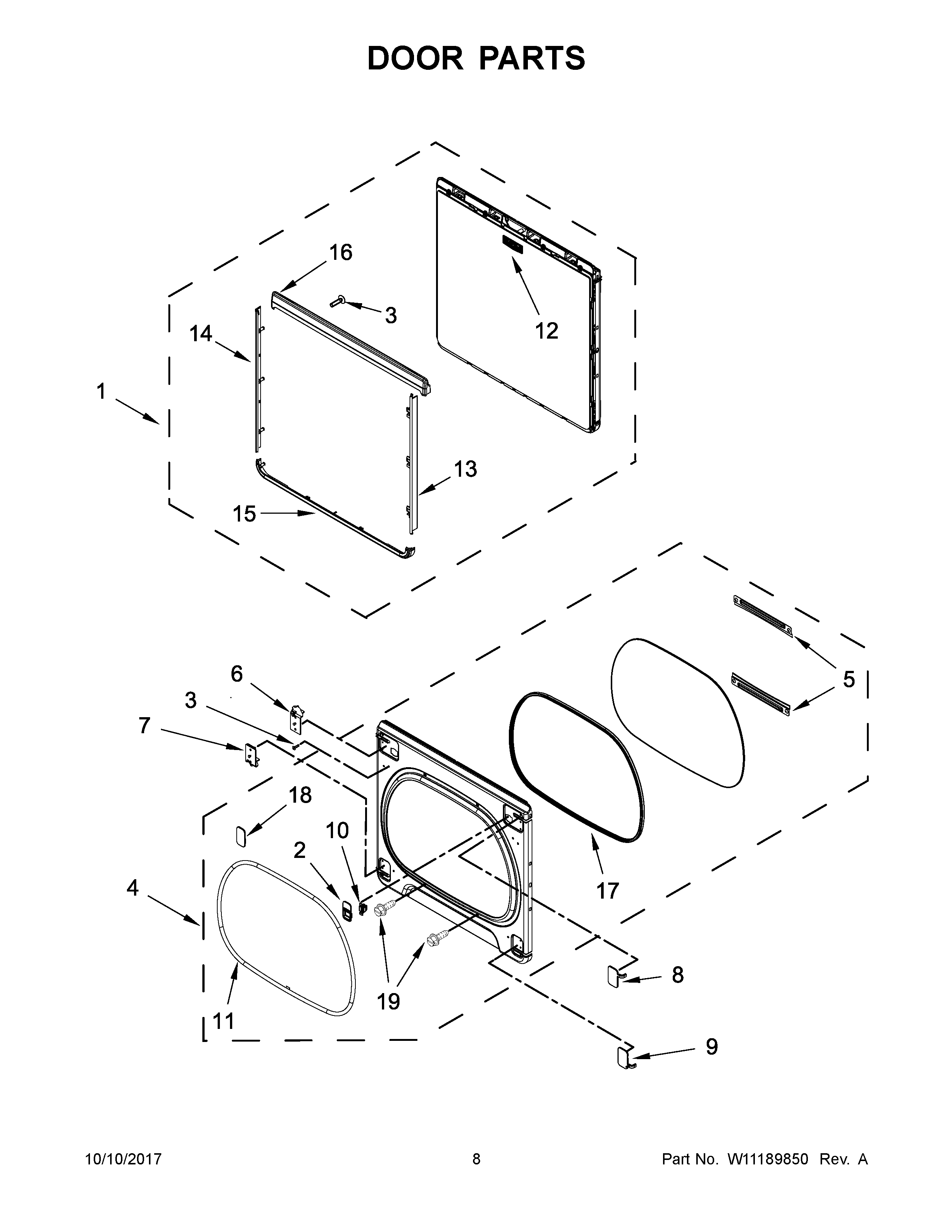

MGDB855DW4 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, OUTER DOOR (CHROME SHADOW)
2A	BEZEL, DOOR CATCH (CHROME SHADOW)
2	MAY W10631401
3	Screw
4A	ASSEMBLY, INNER DOOR (CHROME SHADOW)
4	MAY W10614997
5	MAY W10621182
6	MAY W10783754
7	MAY W10783755
8	MAY W10631395
8A	HINGE COVER, TOP (CHROME SHADOW)
9	MAY W10631396
9A	HINGE COVER, BOTTOM (CHROME SHADOW)
10	MAY W10610880
11	MAY W10763835
12	BADGE
13	MAY W10631398
14	MAY W10631399
15	MAY W10631400
16	MAY W10608739
17	MAY W10726214
18A	COVER, DOOR CATCH (CHROME SHADOW)
18	COVER, DOOR CATCH (WHITE)
19	MAY 342055
