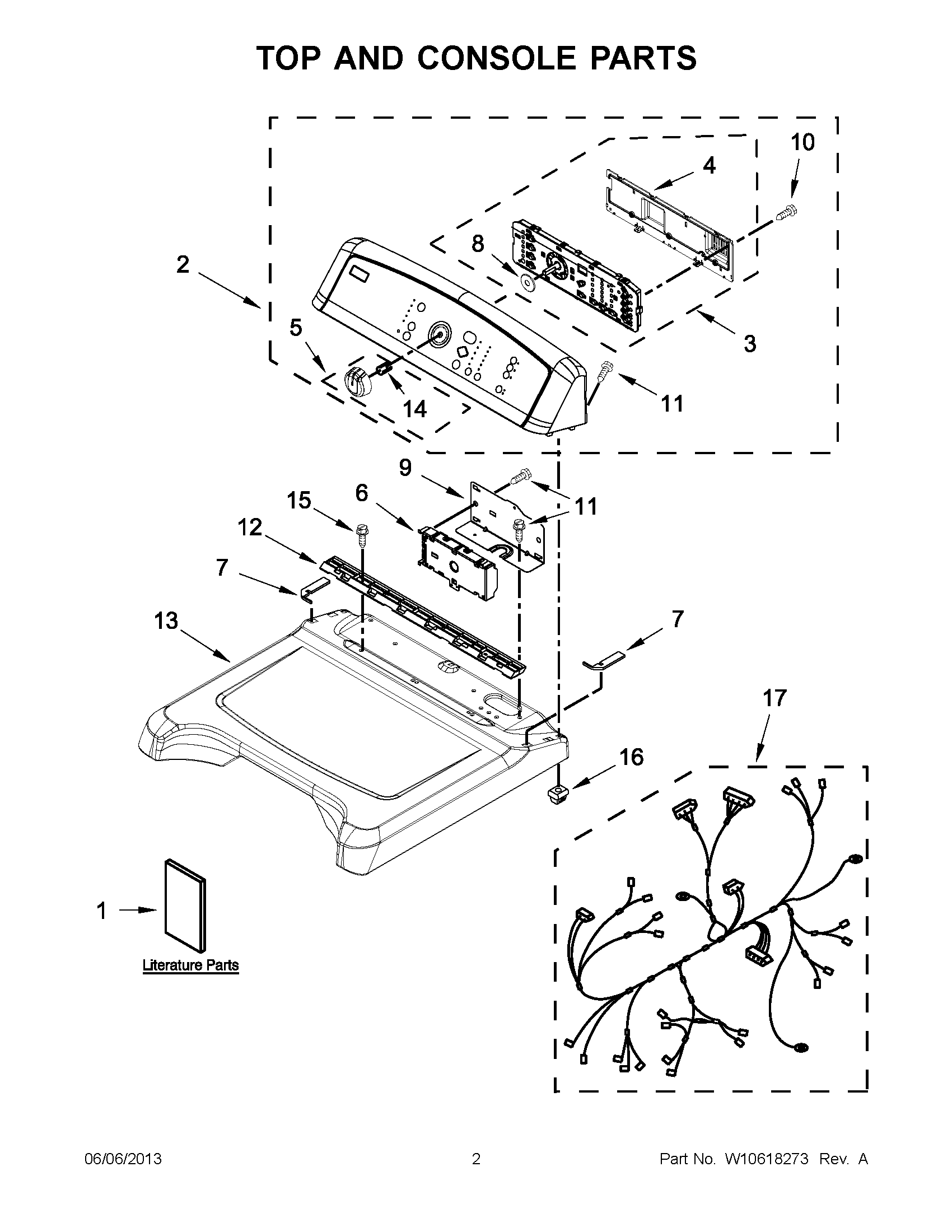

MGDB880BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10562336
1MAY W10562334
1MAY W10393006
2ASSEMBLY, CONSOLE (WHITE)
3MAY W10388670
4COVER, REAR
5MAY W10571098
6MAY W10536008
7Foam-Top (Left-Side)
7Foam-Top (Right-Side)
8SEAL, UI
9MAY 8563853
10Screw, 6-19 x 3/64
11Screw
12MAY 8558863
13TOP (INCLUDES ITEM. 8 )
14MAY W10153920
15Screw, 8-18 x 3/4
16SCREW, GROMMET
17HARNESS, WIRING MAIN
