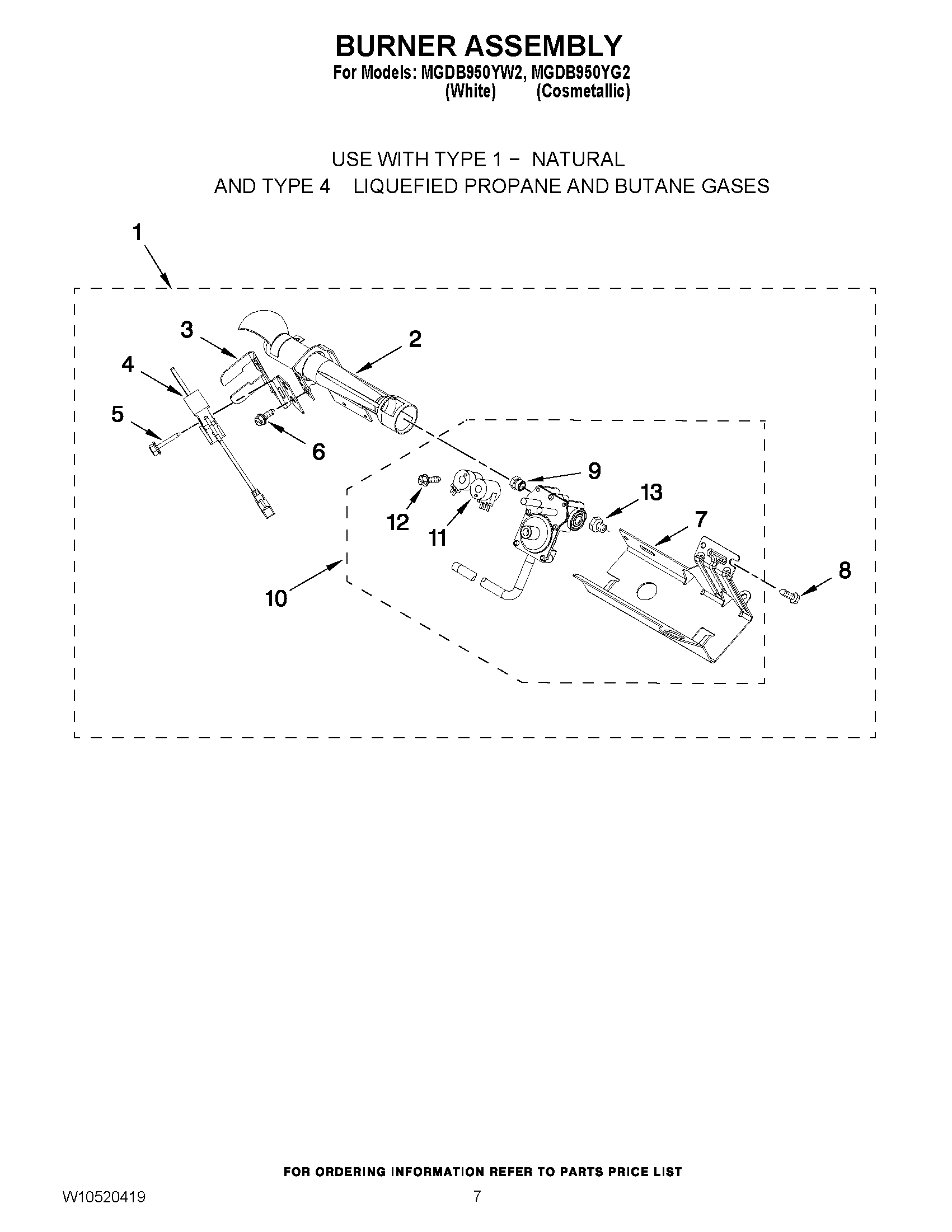

MGDB950YG2 04 – BURNER ASSEMBLY

MGDB950YG2 04 – BURNER ASSEMBLY

Written by

in

MGDB950YG2 04 – BURNER ASSEMBLY

Products

PositionProduct
1MAY W10398742
2MAY 8573010
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY W10183823
8SCREW
9ORIFICE, BURNER (TYPE 1 (NATURAL))
9Orifice, Burner (Type 4 (Propane))
10MAY W10304606
11MAY W10368268
12MAY 326049536
13MAY W10295523
