MGDB950YW2 04 – BURNER ASSEMBLY – Aparts

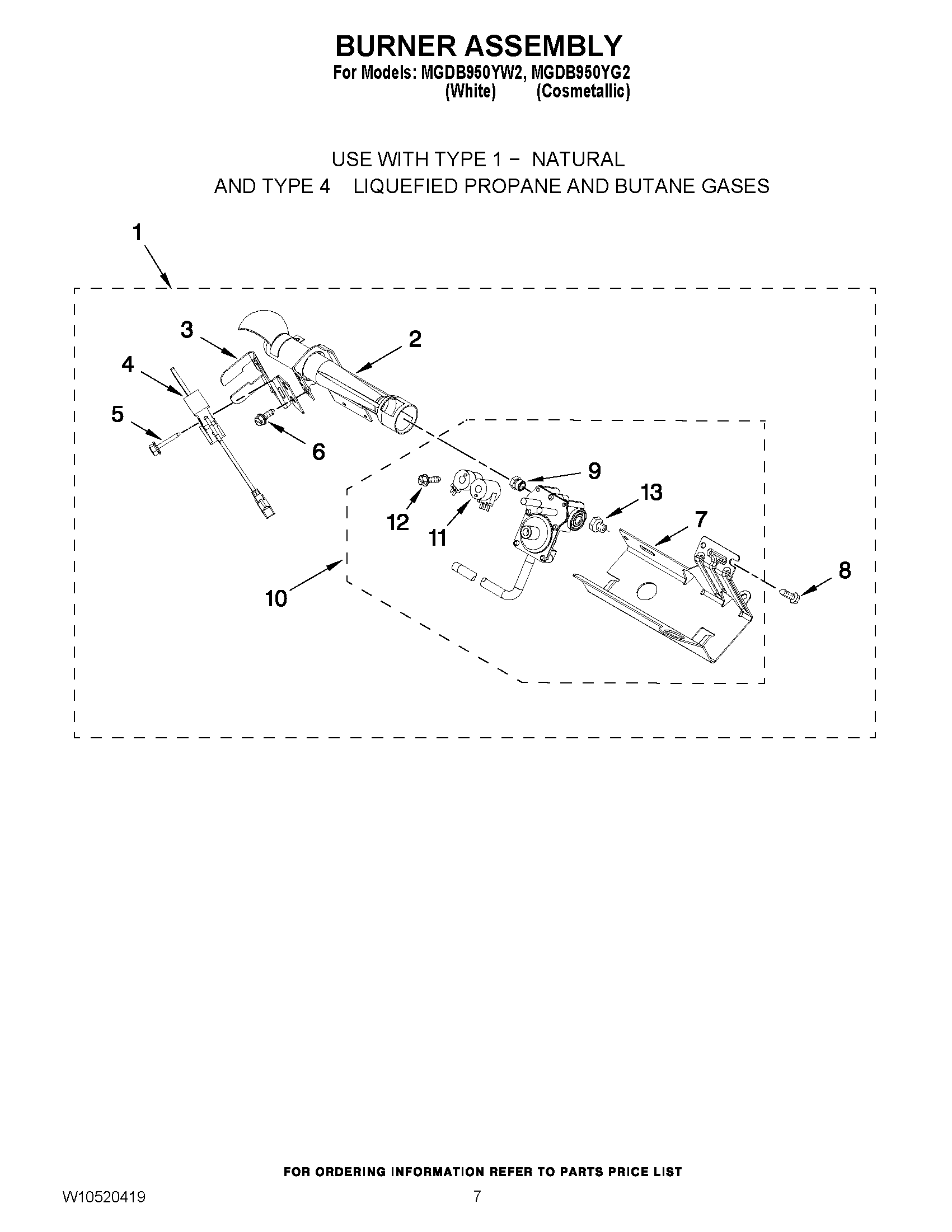

MGDB950YW2 04 – BURNER ASSEMBLY

Products

Position	Product
1	MAY W10398742
2	MAY 8573010
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY W10183823
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
9	Orifice, Burner (Type 4 (Propane))
10	MAY W10304606
11	MAY W10368268
12	MAY 326049536
13	MAY W10295523
