MGDB955FC0 02 – TOP AND CONSOLE PARTS – Aparts

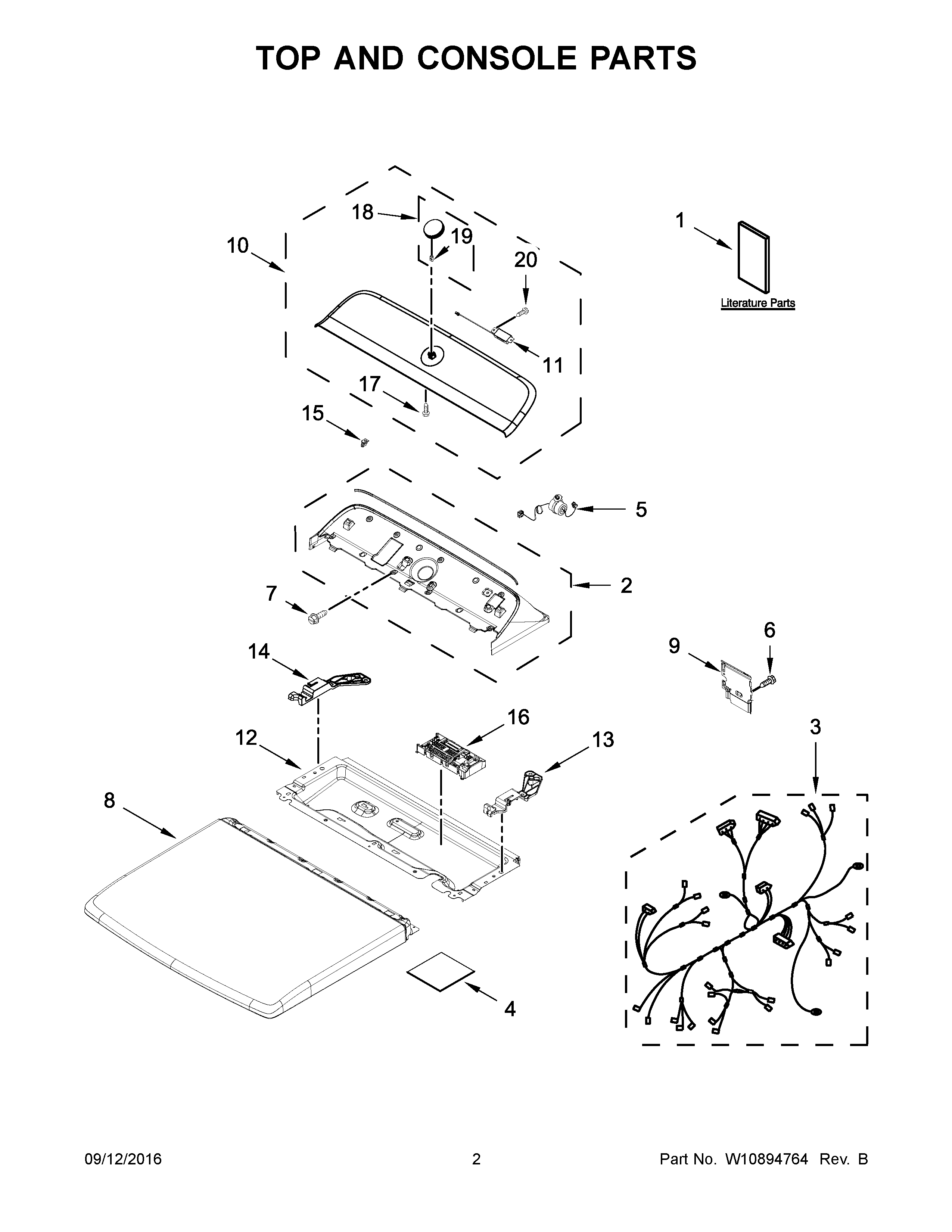

MGDB955FC0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10884084
1A	MAY W10885280
1C	MAY W10769192
1B	MAY W10846781
2	MAY W10795731
2A	MAY W10795788
3	MAY W10834389
4	MAY W10836097
5	MAY W10822560
6	MAY W10460893
7	SCREW
8A	MAY W10748431
8	MAY W10748430
9	MAY 8317339
10	MAY W10830754
11	ASSEMBLY, SPEAKER
12	MAY W10686684
13	MAY W10746238
14	MAY W10746239
15	MAY W10711050
16	MAY W10889255
17	MAY 489470
18	MAY W10830755
19	CLIP, SPRING
20	MAY 9740849
