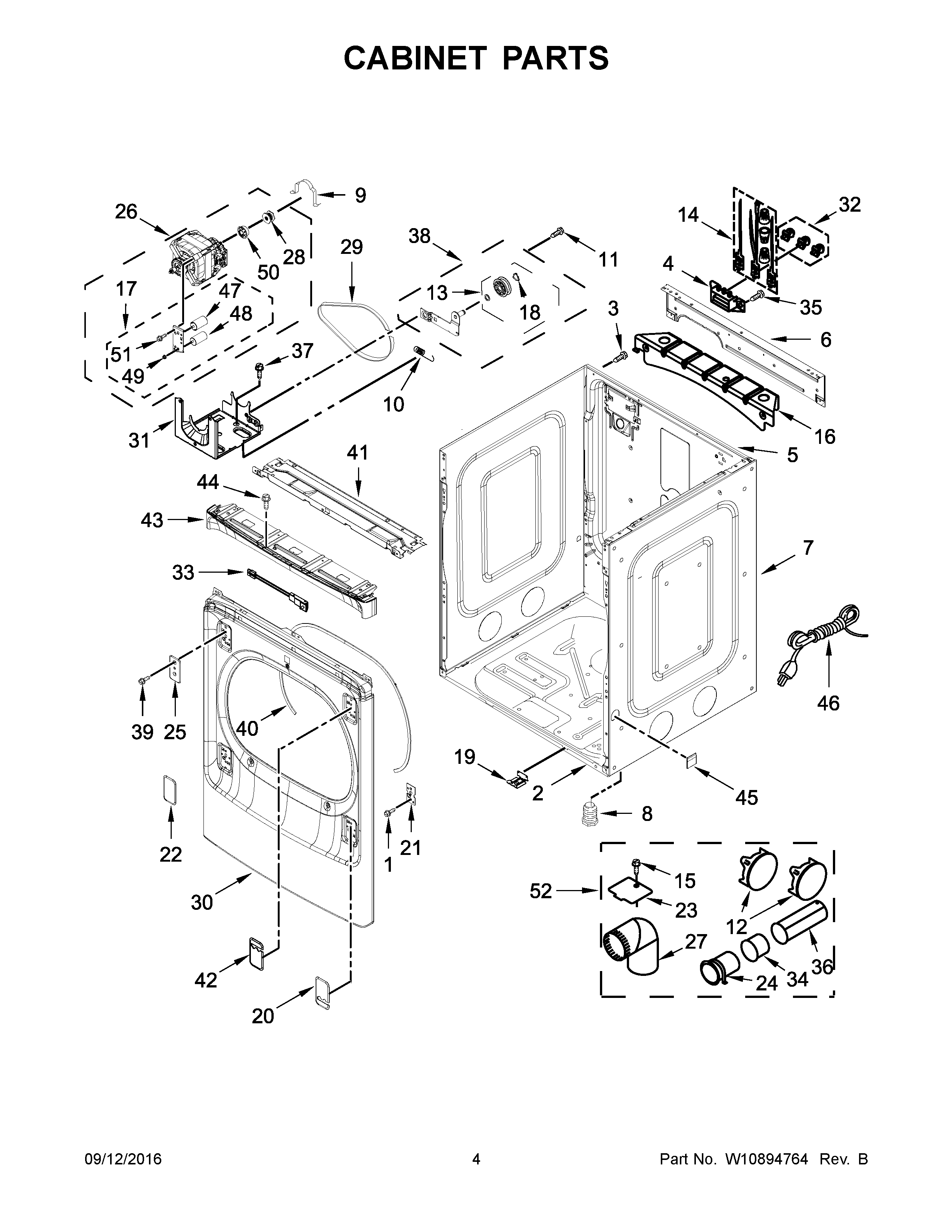

MGDB955FC0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	SCREW
4	MAY 3397659
5	PANEL, REAR
6	MAY W10622396
7A	MAY W10681832
7C	PANEL, SIDE (WITH SIGHT HOLE) (CHROME SHADOW)
7	MAY W10663407
7B	PANEL, SIDE (WITH SIGHT HOLE) (WHITE)
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY 49252
12A	MAY W10151499
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10567155
16	MAY W10632348
17	BRACKET ASSEMBLY
18	WASHER, TRI RING
19	MAY W10632347
20	MAY W10627438
20A	MAY W10627439
21	MAY W10596959
22	MAY W10627437
22A	MAY W10627445
23	MAY 3394331
24	PIPE, EXHAUST (MEDIUM)
25A	MAY W10857675
25	MAY W10857673
26	MOTOR ASSEMBLY
27	MAY 49026
28	PULLEY, MOTOR
29	MAY W10597350
30	MAY W10627425
30A	MAY W10627426
31	MAY W10578053
32	MAY 279393
33	MAY W10761357
34	MAY 8563750
35	SCREW, 10-16 X 1/2
36	PIPE, EXHAUST (LONG)
37	SCREW
38	ASSEMBLY, IDLER
39	SCREW
40	MAY 3387242
41	MAY W10627432
42A	MAY W10627444
42	MAY W10627436
43A	MAY W10756880
43	MAY W10756879
44	MAY 8534022
45	PLUG, FRONT PANEL (WHITE)
45A	PLUG, FRONT PANEL (CHROME SHADOW)
46	CORD, POWER
47	CAPACITOR, MOTOR RUN
48	CAPACITOR, MOTOR START
49	NUT
50	MAY 3393657
51	SCREW
52	MAY W10858320
