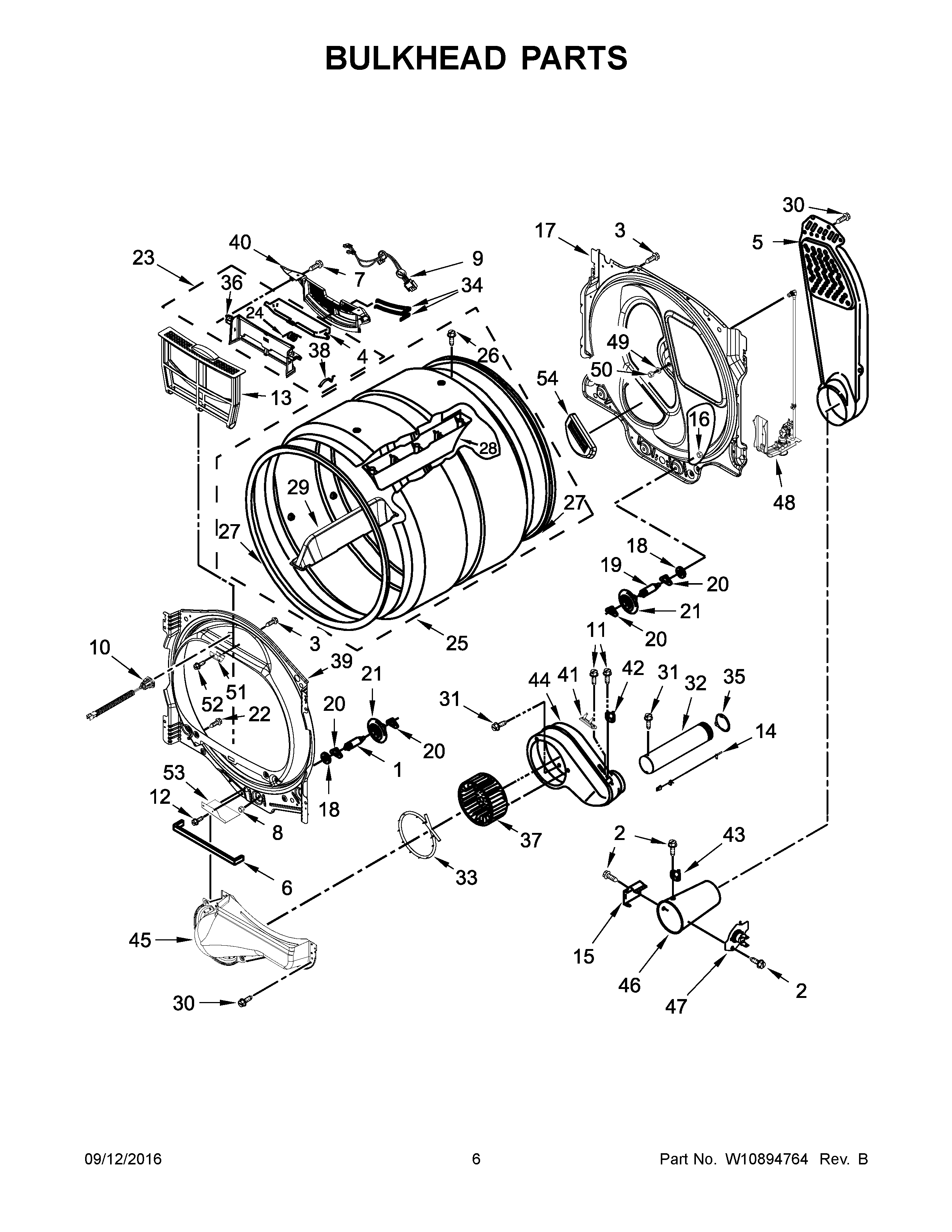

MGDB955FC0 04 – BULKHEAD PARTS

MGDB955FC0 04 – BULKHEAD PARTS

Written by

in

MGDB955FC0 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2Screw
3SCREW
4MAY W10608808
5DUCT, INLET ASSEMBLY
6MAY W10701355
7SCREW
8NUT, HEX
9MAY W10657328
10MAY W10761356
12SCREW
13WHITE
14THERMISTOR, GAS INLET
15MAY 338906
16NUT, HEX (LEFT HAND THREAD)
17MAY W10712886
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY W10366705
23MAY W10608812
24MAY W10219015
25MAY W10626235
26MAY W10219342
27MAY W10664120
28MAY W10726737
29MAY W10726735
30Screw
31SCREW,8-18 X 3/8
32MAY W10608817
33MAY W10868675
34MAY W10608814
35MAY W10344699
36MAY W10608806
37MAY 697772
38MAY W10608815
39MAY W10861007
40MAY W10608813
41FUSE, THERMAL (91C)
42THERMISTOR
43THERMOSTAT, HI LIMIT
44MAY W10667717
45MAY W10868982
46MAY 8573824
47CUT-OFF, THERMAL
48VALVE AND HOSE ASSEMBLY
49MAY W10044579
50Nut, Brass 9/16 – 24 x 1/2
51MAY W10627446
52MAY W10718190
53SHIELD, BLOWER HOUSING
54SENSOR ASSEMBLY, QUAD BULKHEAD
