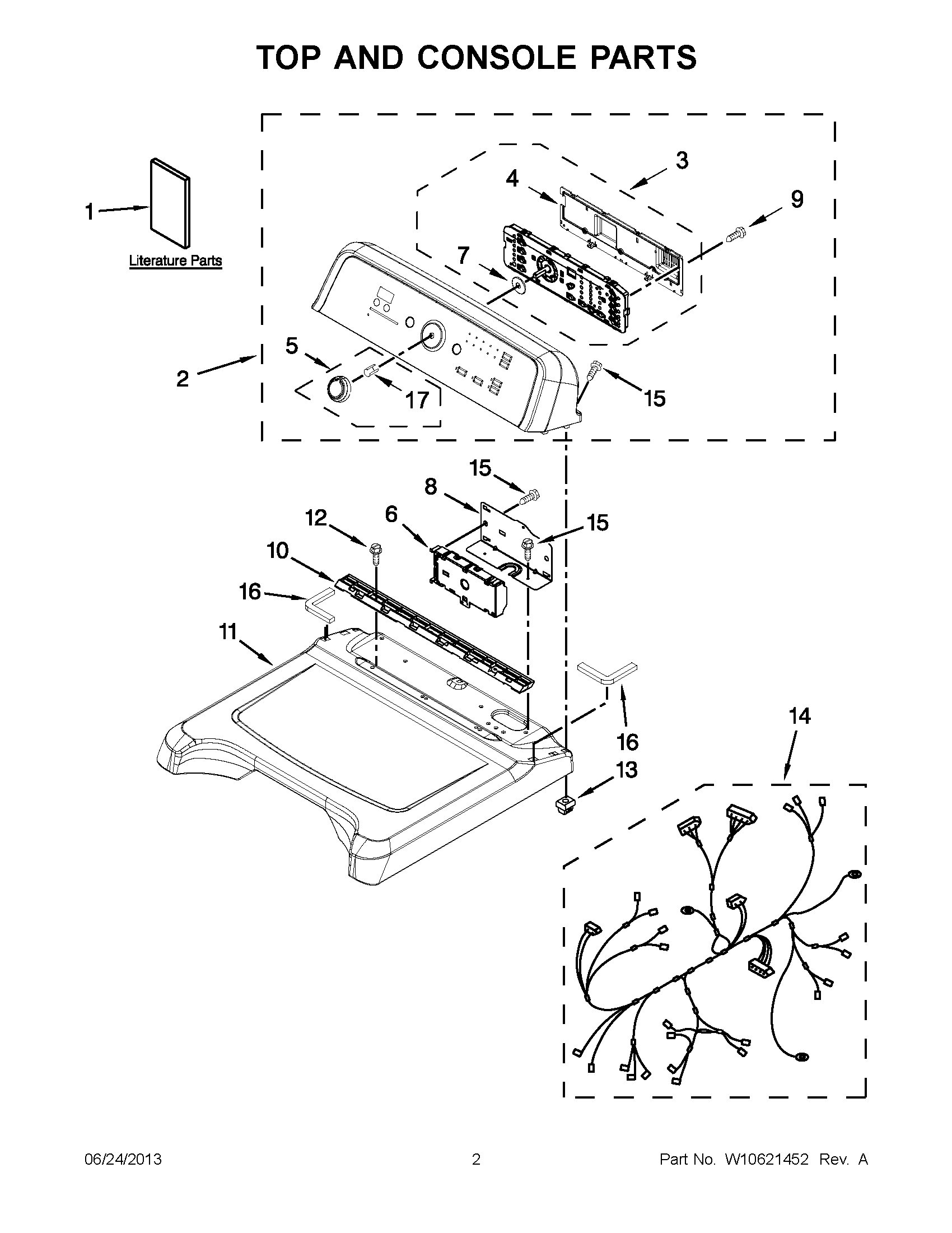

MGDB980BW0 01 – TOP AND CONSOLE PARTS

MGDB980BW0 01 – TOP AND CONSOLE PARTS

Written by

in

MGDB980BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10562336
1MAY W10562334
1MAY W10393006
2MAY W10562320
2MAY W10562321
3ASSEMBLY, USER INTERFACE
4COVER, REAR
5MAY W10571098
6MAY W10536008
7SEAL, UI
8MAY 8563853
9Screw, 6-19 x 3/64
10MAY 8558863
11TOP (INCLUDES ITEM. 8 )
11TOP (GRANITE)
12Screw, 8-18 x 3/4
13SCREW, GROMMET
14HARNESS, WIRING MAIN
15Screw
16Foam-Top (Left-Side)
16Foam-Top (Right-Side)
17MAY W10153920
