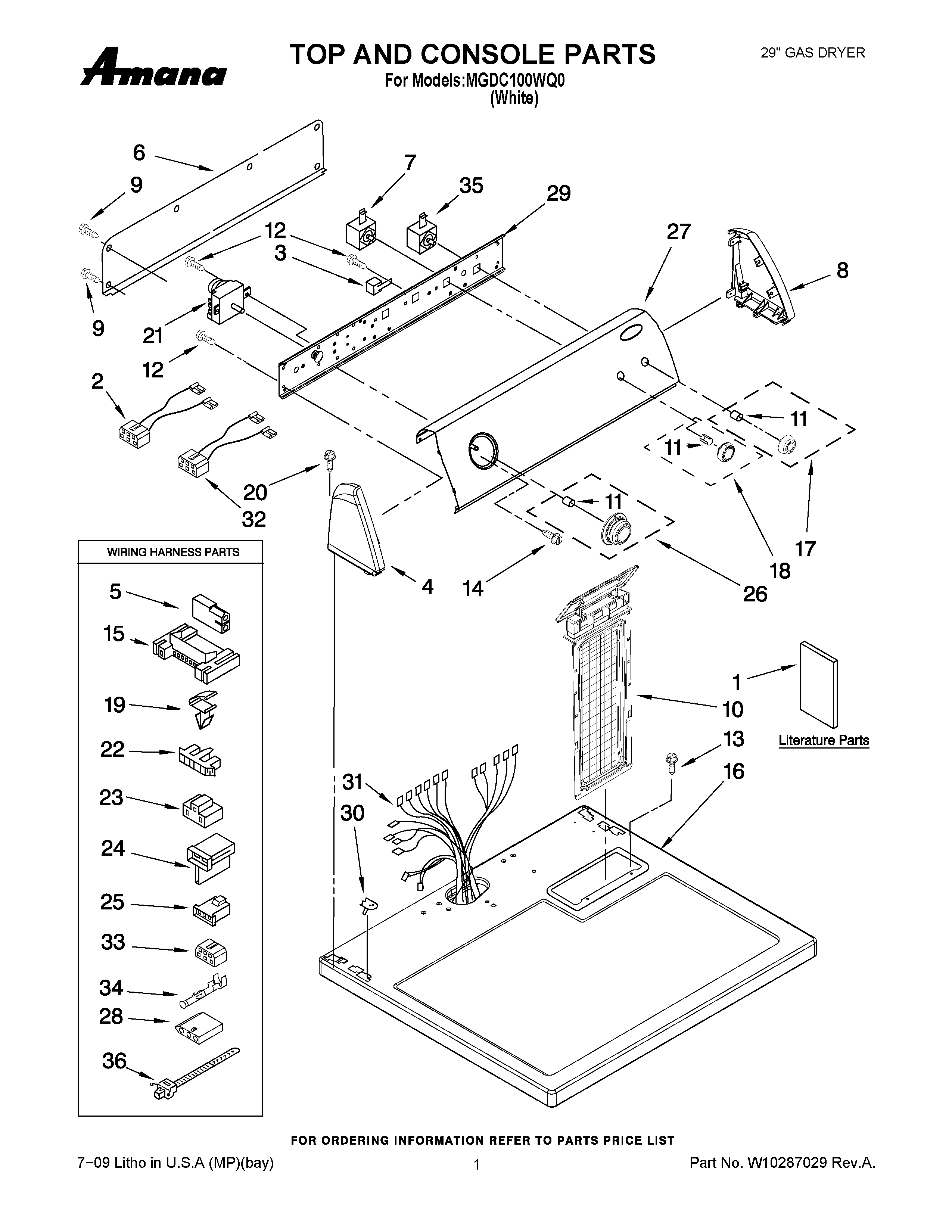

MGDC100WQ0 01 – TOP AND CONSOLE PARTS

MGDC100WQ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGDC100WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10089185
1MAY 8576796
1Instructions, Installation (English)
1MAY W10088780
2Wire, Jumper Black (PTS)
3MAY 694419
4MAY 8271365
5Plug, 2-Way Terminal
6MAY 8274261
7Switch, Wrinkle Guard
8MAY 8271359
9Screw
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8557930
17Knob Assembly Push-To-Start (White)
18MAY W10180218
19CLIP, HARNESS
20Screw, Console
21MAY 3977678
22Connector-Timer
23Connector (PTS) Relay
24CONNECTOR, 2-POSITION (GAS VALVE)
25MAY 3403498
26MAY W10180219
27MAY W10270639
28MAY 3936144
29MAY 8271418
30Nut, Push-In
31MAY 8299876
32MAY 3401695
33Connector
34Terminal
35MAY 3977456
36Tie, Cable
