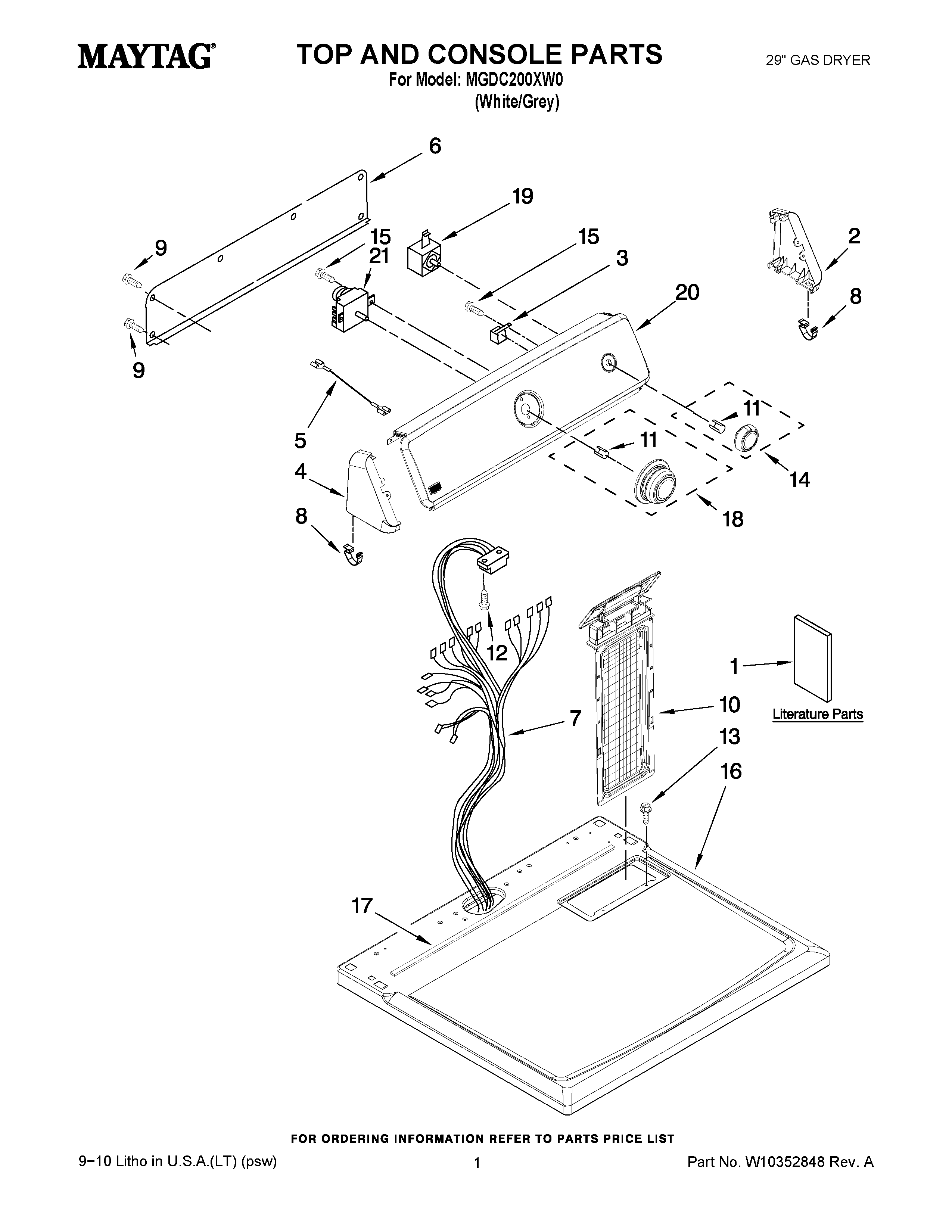

MGDC200XW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10274613
1	MAY W10096990
1	INSTALLATION, INSTRUCTION
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	WIRE, JUMPER (BUZZER)
6	MAY W10103406
7	MAY W10346390
8	MAY 8312709
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	ASSEMBLY, CONTROL KNOB (GREY)
15	MAY 3348629
16	MAY W10225059
17	MAY W10316616
18	ASSEMBLY, KNOB & DIAL (GREY)
19	MAY 3404233
20	ASSEMBLY, CONSOLE PANEL & BRACKET
21	MAY 3977678
