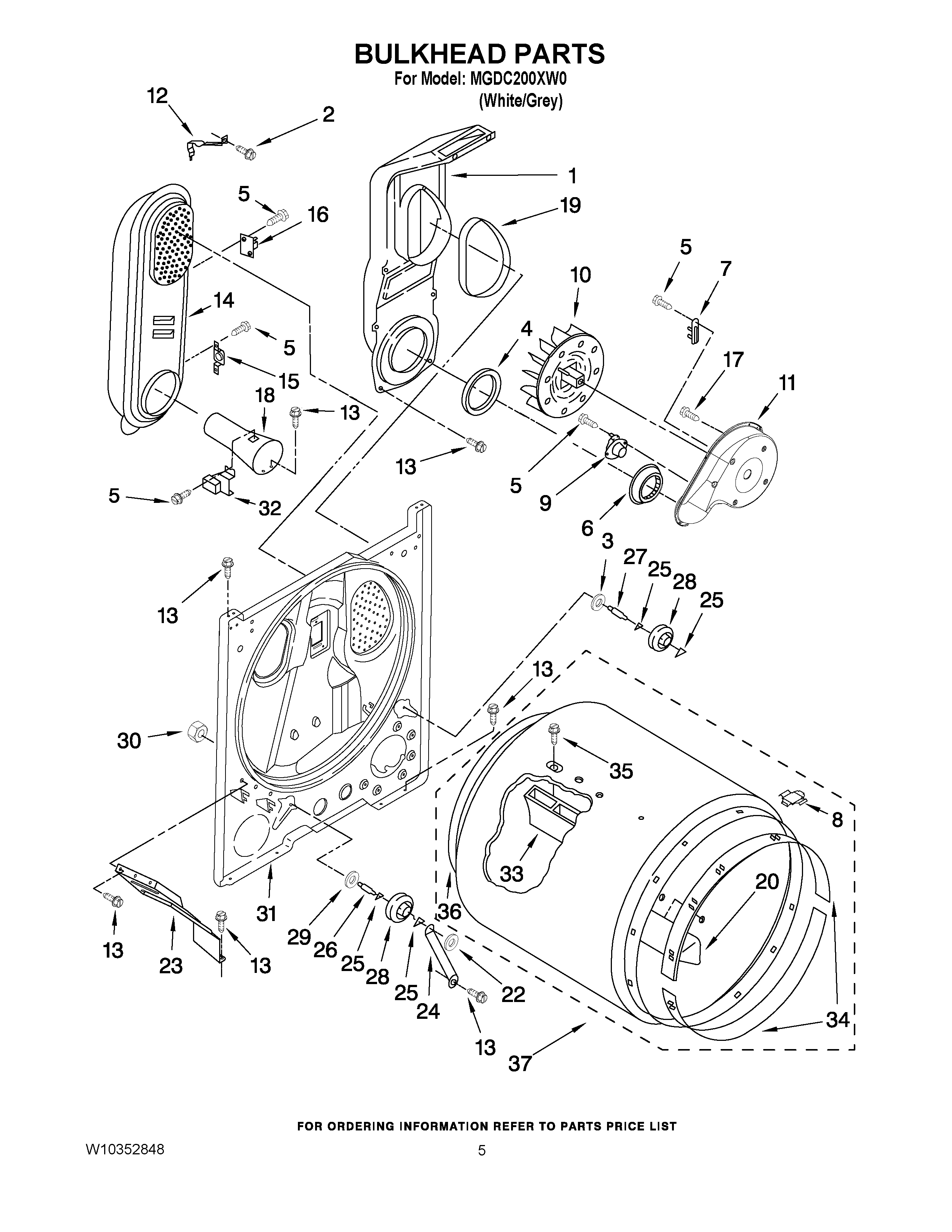

MGDC200XW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 280010
17	SCREW
18	FUNNEL, BURNER LIGHT
19	MAY 339956
20	BAFFLE, DRUM (SHORT)
22	NUT, PUSH ON
23	BRACKET, BULKHEAD CHUTE
24	MAY 3976434
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	ROLLER, SUPPORT
29	WASHER
30	MAY W10298789
31	MAY 3403410
32	MAY 338906
33	MAY W10306677
34	Bearing, Ring
35	MAY W10219342
36	MAY 3406130
37	MAY 695587
