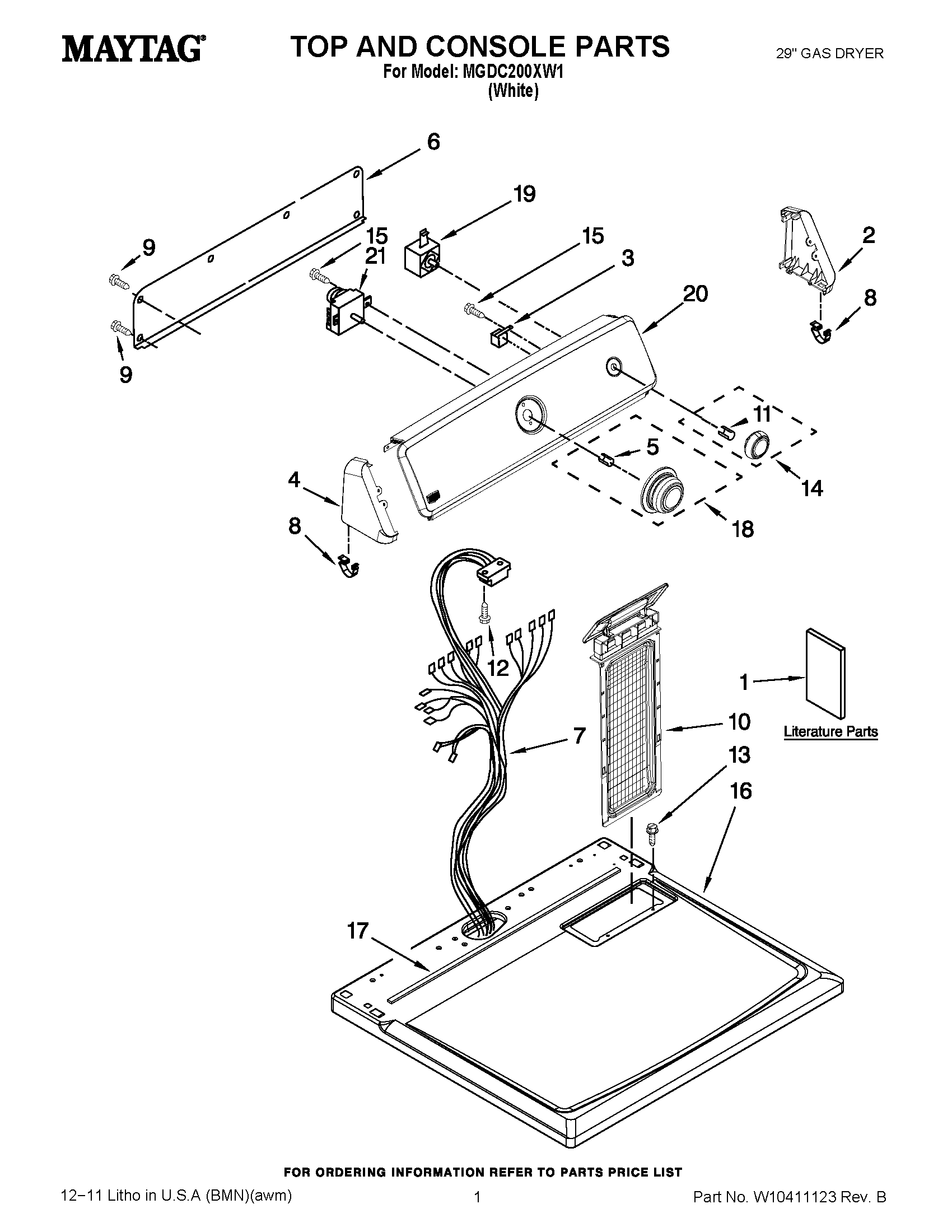

MGDC200XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10185990
1MAY W10096990
1INSTALLATION, INSTRUCTION
2Endcap (R.H.)
3MAY 694419
4Endcap (L.H.)
5Spring, Clip Knob
6MAY W10103406
7MAY W10366760
8MAY 8312709
9Screw
10Screen, Lint
11CLIP, SPRING
12MAY 8533971
13SCREW
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY 3348629
16MAY W10225059
17MAY W10316616
18ASSEMBLY, KNOB & DIAL (GREY)
19MAY 3404233
20ASSEMBLY, CONSOLE PANEL & BRACKET
21TIMER ASSEMBLY
