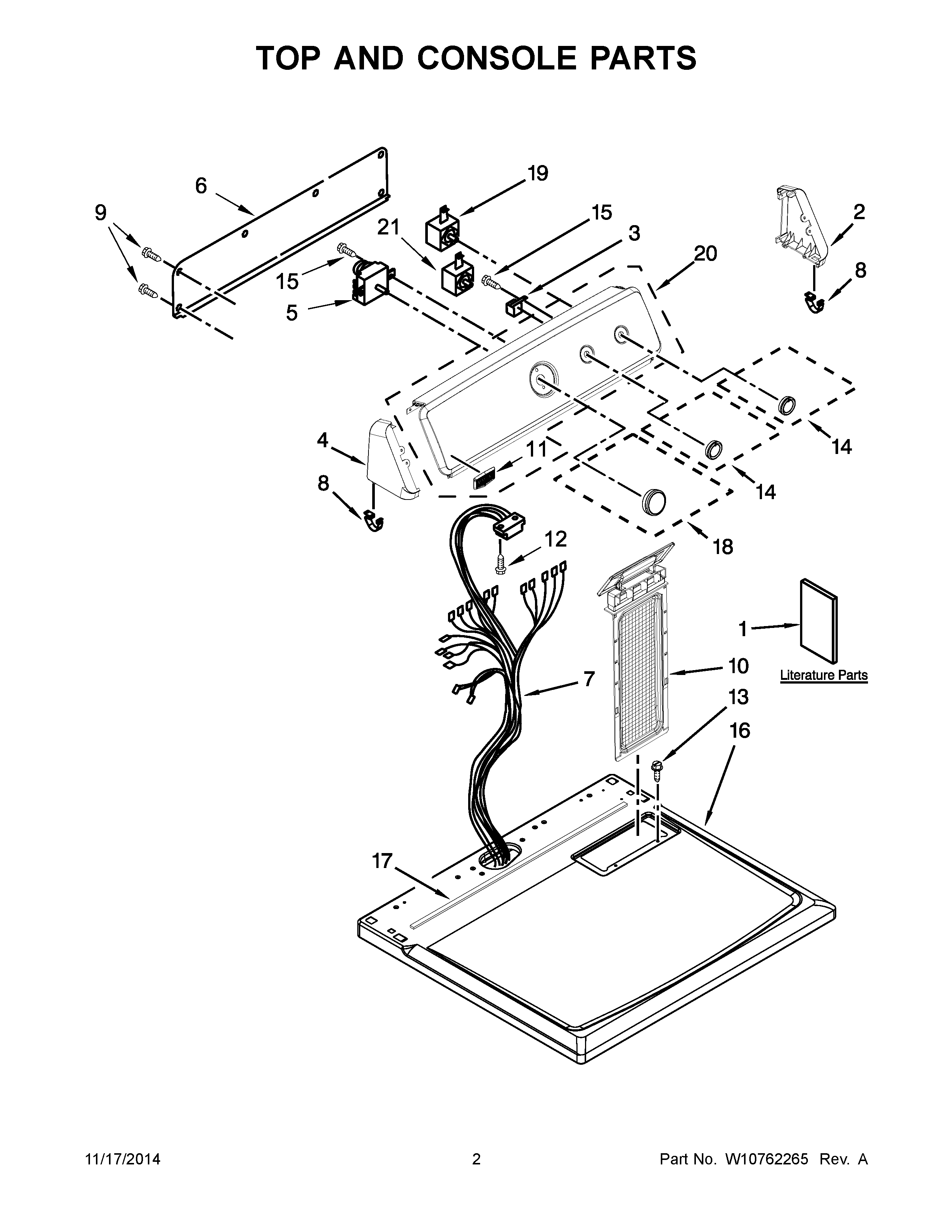

MGDC215EW0 02 – TOP AND CONSOLE PARTS

MGDC215EW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGDC215EW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10185986
1A	MAY W10562360
1	MAY W10562354
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	TIMER ASSEMBLY (60 HZ.)
6	MAY W10103406
7	MAY W10565801
8	MAY 8312709
9	Screw
10	MAY W10717210
11	BADGE
12	MAY 8533971
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY 8559800
17	MAY W10316616
18	MAY W10558463
19	MAY W10117655
20	MAY W10692611
21	Switch, Temperature
