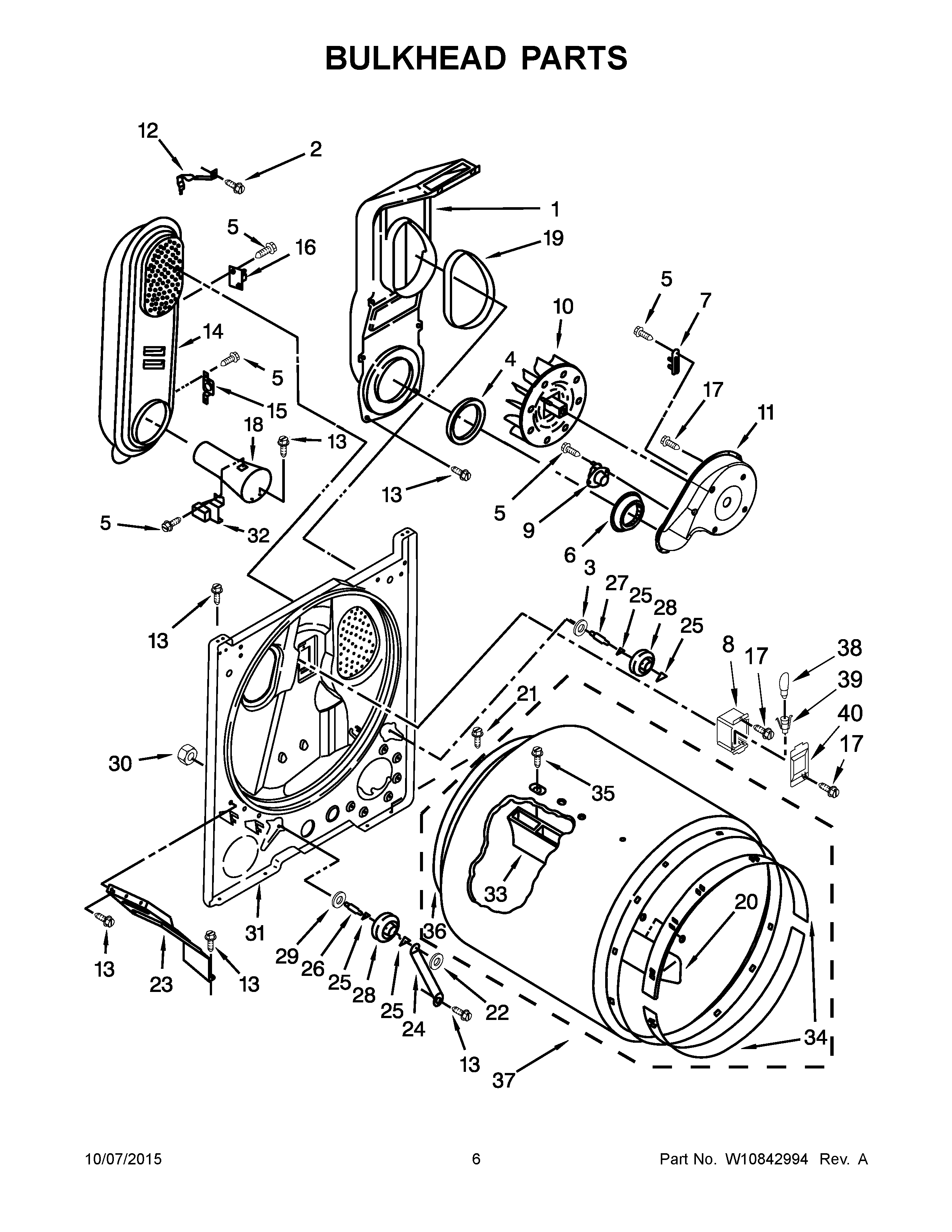

MGDC215EW1 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	MAY 3977373
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermal Cutoff (Includes Illus. 48)
16	MAY W10423382
17	SCREW
18	FUNNEL, BURNER LIGHT
19	MAY 339956
20	BAFFLE, DRUM (SHORT)
21	SCREW
22	NUT, PUSH ON
23	BRACKET, BULKHEAD CHUTE
24	MAY 3976434
25	WASHER, TRI RING
26	MAY W10359270
27	MAY W10359269
28	ROLLER, SUPPORT
29	WASHER
30	MAY W10298789
31	MAY W10714468
32	MAY 338906
33	BAFFLE, DRUM (LONG)
34	Bearing, Ring
35	MAY W10219342
36	MAY W10725245
37	ASSEMBLY, DRUM (COMPLETE)
38	MAY 3406124
39	MAY W10214261
40	MAY 3402841
