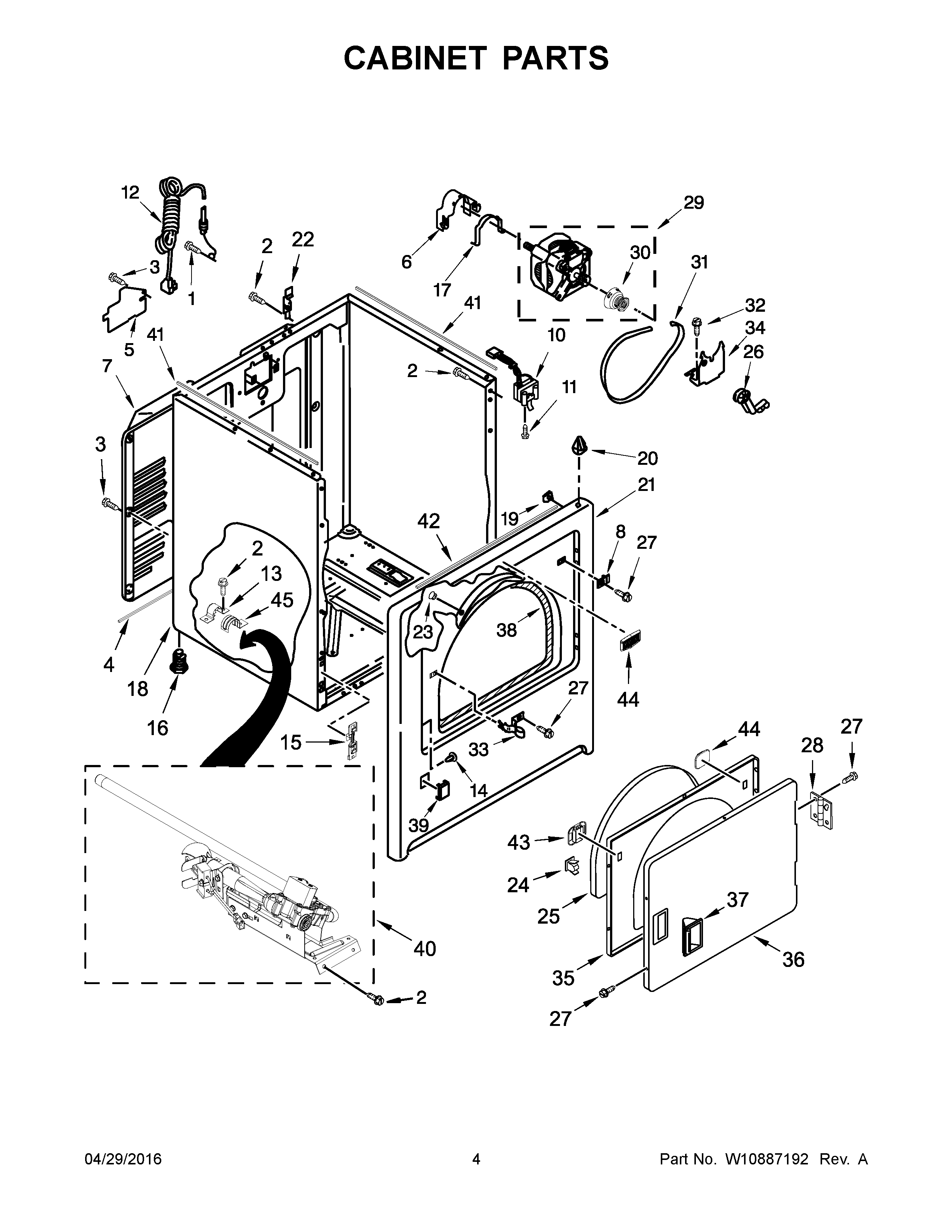

MGDC215EW2 03 – CABINET PARTSadmin2025-04-26T11:29:16+00:00MGDC215EW2 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY 8533974 |
| 2 | SCREW |
| 3 | Screw |
| 4 | SEAL, SPILL GUARD |
| 5 | MAY 3396795 |
| 6 | Clamp, Motor (With Shield) |
| 7 | MAY W10571724 |
| 8 | PLUG, STRIKE |
| 9 | COVER, DOOR CATCH |
| 10 | SWITCH, DOOR |
| 11 | SCREW |
| 12 | MAY 344020 |
| 13 | MAY 341029 |
| 14 | PLUG, HINGE HOLES |
| 15 | CLIP, FRONT PANEL |
| 16 | MAY W10561321 |
| 17 | CLAMP, MOTOR MOUNT |
| 18 | CABINET (WHITE) |
| 19 | Clip, Ground |
| 20 | MAY 8066092 |
| 21 | MAY W10664698 |
| 22 | Hinge, Top |
| 23 | Clip, Felt Pad |
| 24 | MAY W10610880 |
| 25 | SEAL, DOOR |
| 26 | IDLER ASSEMBLY |
| 27 | MAY 342055 |
| 28 | ASSEMBLY, HINGE AND PIN |
| 29 | ASSEMBLY, MOTOR |
| 30 | Pulley, Motor |
| 31 | BELT, DRIVE |
| 32 | BOLT |
| 33 | Strike, Door |
| 34 | MAY 348780 |
| 35 | DOOR, INNER |
| 36 | DOOR, FRONT (WHITE) |
| 37 | HANDLE, DOOR (WHITE) |
| 38 | ASSEMBLY, SEAL AND BEARING |
| 39 | PLUG, FRONT PANEL (WHITE) |
| 40 | MAY W10336852 |
| 41 | SEAL, FOAM |
| 42 | SEAL, SPILL GUARD |
| 43 | BEZEL, DOOR CATCH |
| 44 | BADGE |
| 45 | MAY W10727507 |
