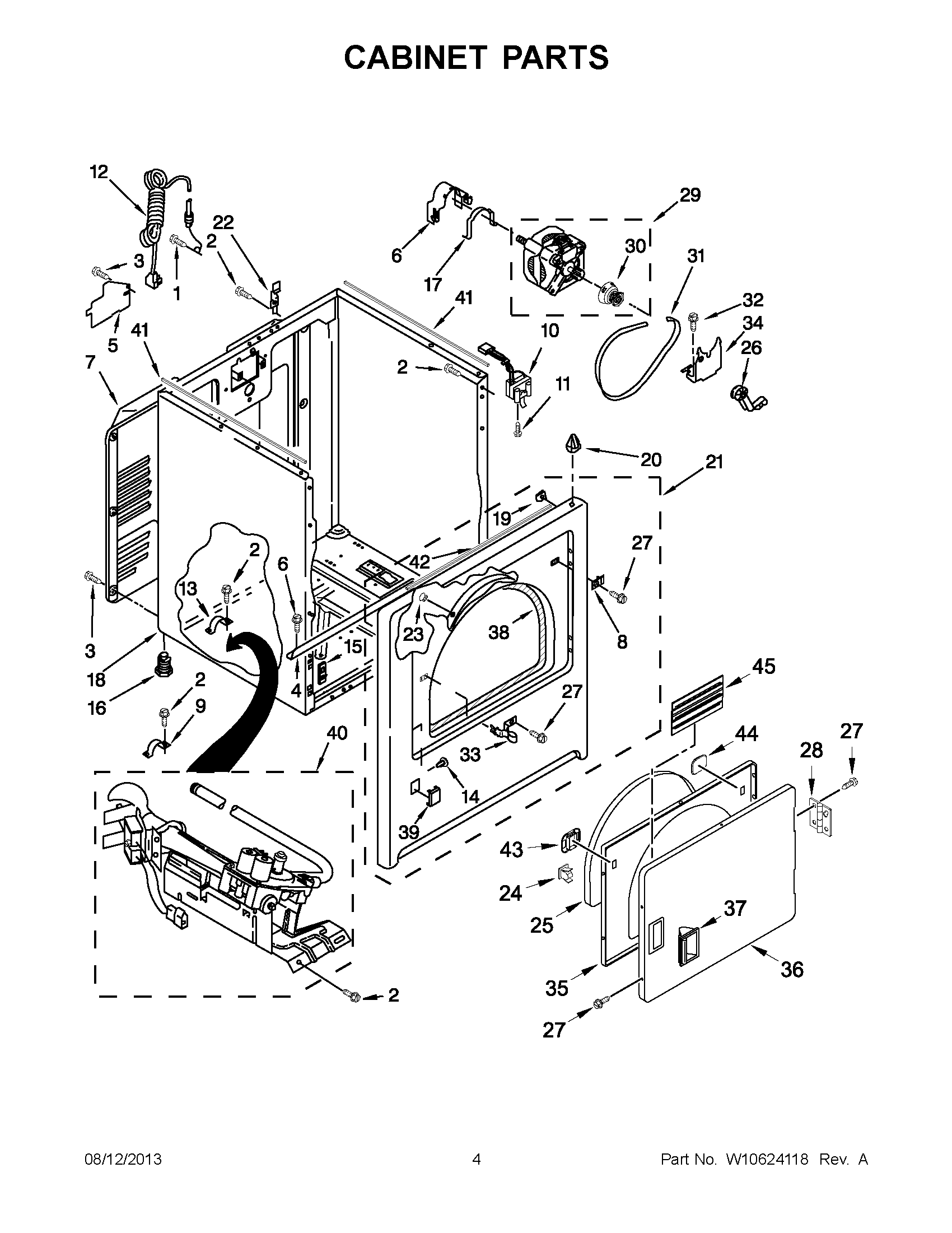

MGDC300BW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8533974
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	MAY 3980175
10	SWITCH, DOOR
11	SCREW
12	MAY W10440460
13	MAY 341029
14	PLUG, HINGE HOLES
15	MAY 3394083
16	MAY W10561321
17	CLAMP, MOTOR MOUNT
18	SEAL-SPILL GUARD
19	Clip, Ground
20	MAY 8066092
21	PANEL FRONT (WHITE)
22	Hinge, Top
23	Clip, Felt Pad
24	MAY W10529190
25	MAY W10389572
26	IDLER ASSEMBLY
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	ASSEMBLY, MOTOR
30	Pulley, Motor
31	BELT, DRIVE
32	BOLT
33	Strike, Door
34	MAY 348780
35	DOOR, INNER
36	DOOR FRONT
37	Handle, Door
38	SEAL & BEARING ASSEMBLY
39	PLUG, FRONT PANEL (WHITE)
40	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
41	SEAL, FOAM
42	SEAL, SPILL GUARD
43	BEZEL, DOOR CATCH
44	COVER, DOOR CATCH
45	MAY W10532676
