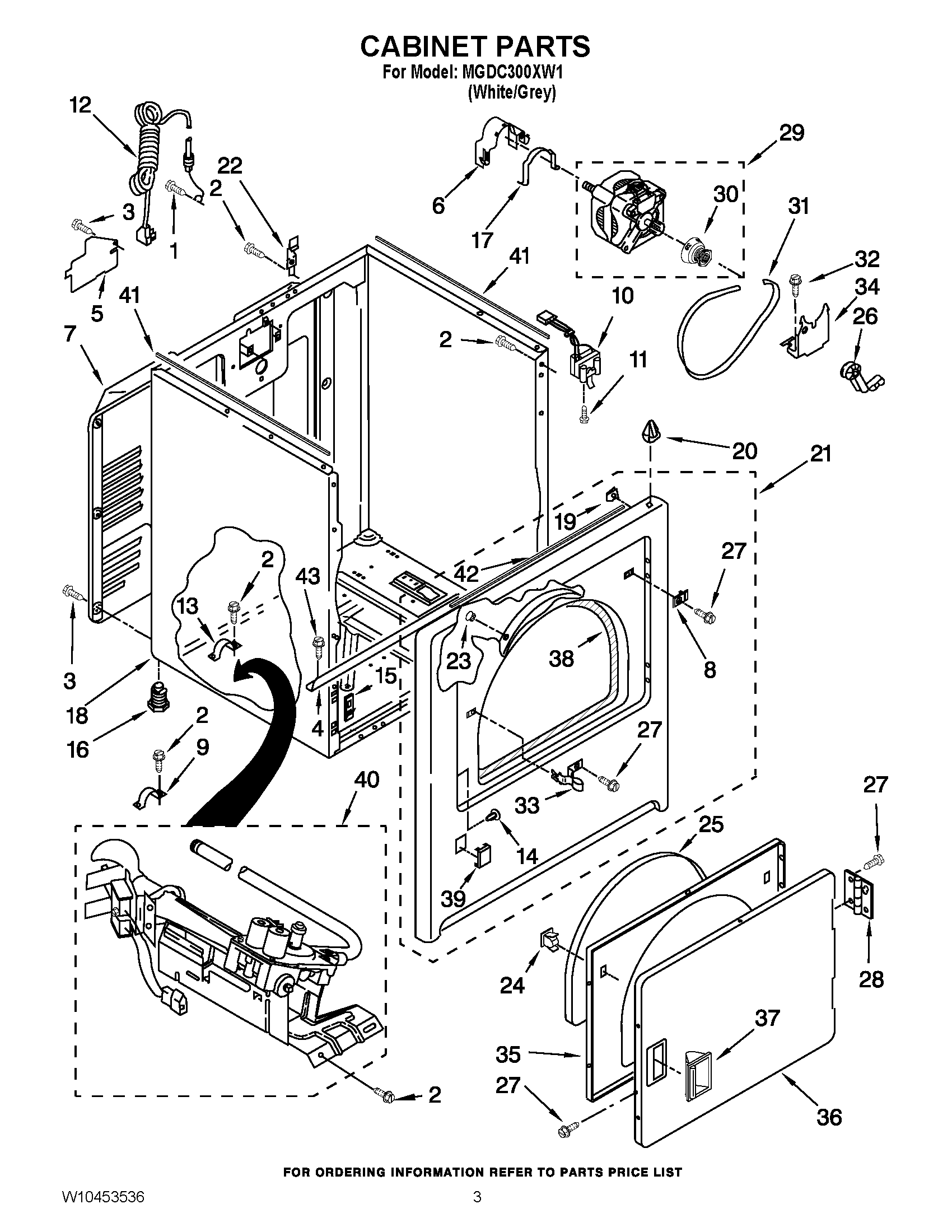

MGDC300XW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	CLAMP, MOTOR MOUNT
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
12	MAY W10440460
13	MAY 341029
14	PLUG, HINGE HOLES
15	MAY 3394083
16	MAY 3392100
17	Clamp, Motor (With Shield)
18	SEAL-SPILL GUARD
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY W10224857
22	Hinge, Top
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	IDLER PULLEY & BEARING ASSY.
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MAY 8066206
30	Pulley, Motor
31	BELT, DRIVE
32	BOLT
33	Strike, Door
34	MAY 348780
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3406129
39	PLUG, FRONT PANEL (WHITE)
40	MAY W10336852
41	SEAL, FOAM
42	SEAL, SPILL GUARD
43	SCREW
