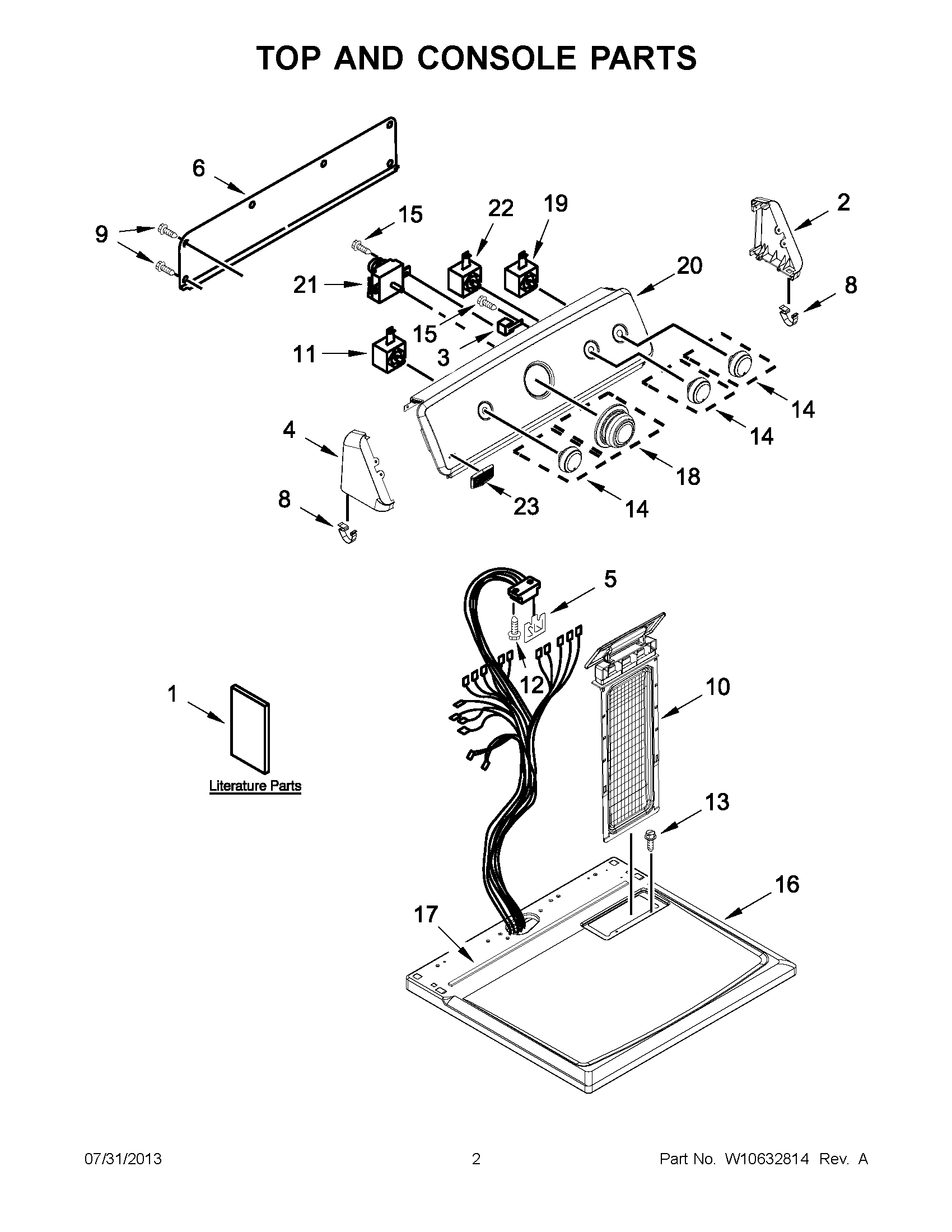

MGDC400BW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10562360
1	MAY W10562354
1	MAY W10118081
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	MAY W10476828
6	MAY W10103406
7	MAY W10565803
8	MAY 8312709
9	Screw
10	Screen, Lint
11	MAY 3405156
12	MAY 8533971
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY W10225059
17	MAY W10316616
18	MAY W10558463
19	MAY W10117655
20	CONSOLE PANEL & BRACKET ASSEMBLY (WHITE)
21	TIMER ASSEMBLY (60 HZ.)
22	Switch, Rotary Temperature
23	MAY W10199708
