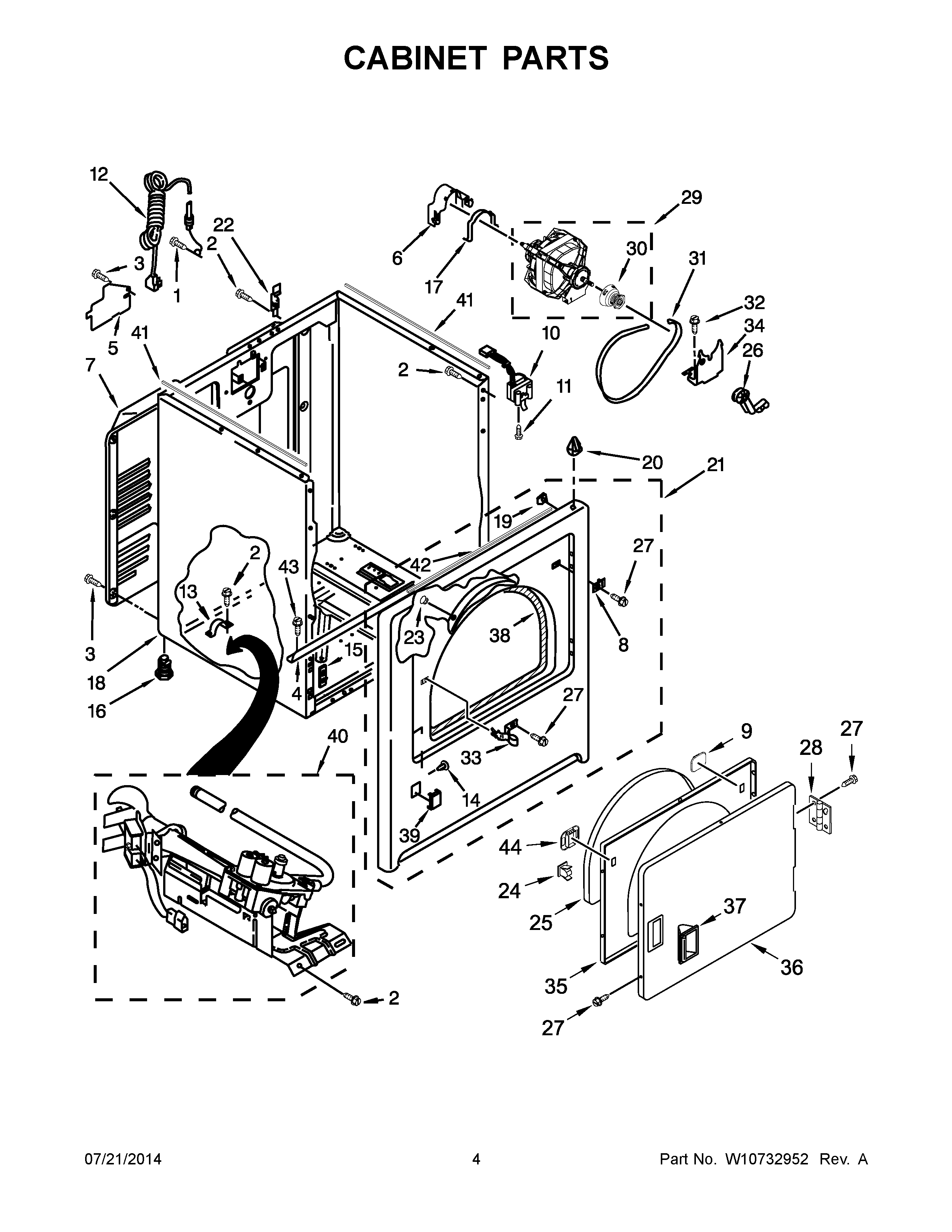

MGDC400BW2 03 – CABINET PARTS

MGDC400BW2 03 – CABINET PARTS

Written by

in

MGDC400BW2 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	CLAMP, MOTOR MOUNT
7	MAY W10571724
8	PLUG, STRIKE
9	COVER, DOOR CATCH
10	SWITCH, DOOR
11	SCREW
12	MAY 344020
13	MAY 341029
14	PLUG, HINGE HOLES
15	MAY 3394083
16	MAY W10561321
17	Clamp, Motor (With Shield)
18	SEAL-SPILL GUARD
19	Clip, Ground
20	MAY 8066092
21	PANEL FRONT (WHITE)
22	Hinge, Top
23	Clip, Felt Pad
24	MAY W10610880
25	MAY W10389572
26	IDLER ASSEMBLY
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	ASSEMBLY, MOTOR
30	Pulley, Motor
31	BELT, DRIVE
32	BOLT
33	Strike, Door
34	MAY 348780
35	DOOR, INNER
36	DOOR FRONT
37	HANDLE, DOOR (WHITE)
38	MAY W10663510
39	PLUG, FRONT PANEL (WHITE)
40	MAY W10336852
41	SEAL, FOAM
42	SEAL, SPILL GUARD
43	SCREW
44	BEZEL, DOOR CATCH
