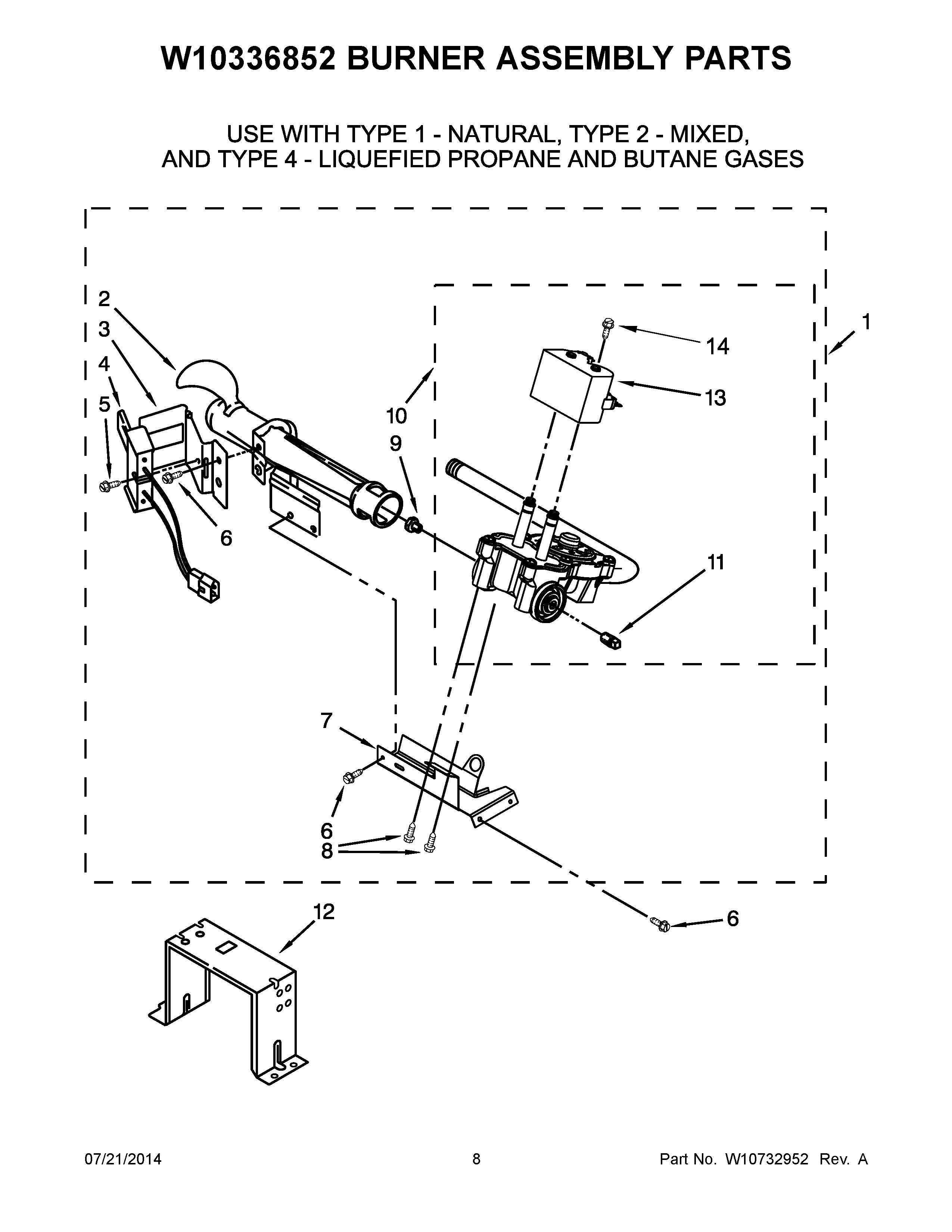

MGDC400BW2 05 – W10336852 BURNER ASSEMBLY PARTS
Written by
in
MGDC400BW2 05 – W10336852 BURNER ASSEMBLY PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
MAY W10307153
1
MAY W10336852
2
MAY 688617
3
MAY 694298
4
MAY 686590
5
MAY W10366705
6
SCREW
7
MAY 693986
8
SCREW
9
TYPE 1 (NATURAL)
10
MAY W10304604
11
MAY W10295523
12
MAY 3389889
13
MAY W10328463
14
MAY 326049536
←
