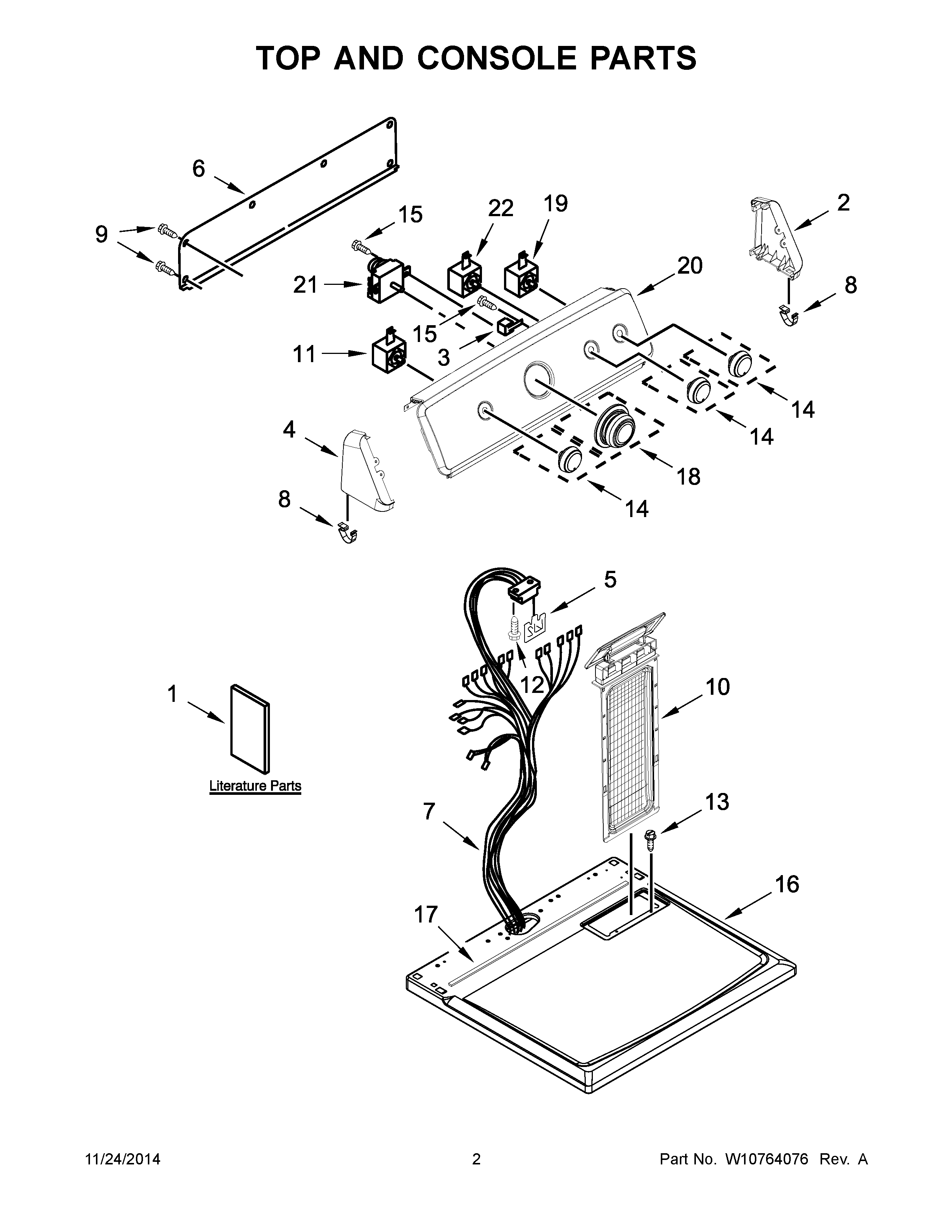

MGDC415EW0 02 – TOP AND CONSOLE PARTS

MGDC415EW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGDC415EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AMAY W10562360
1MAY W10562354
1BMAY W10185994
2Endcap (R.H.)
3MAY 694419
4Endcap (L.H.)
5MAY W10476828
6MAY W10103406
7MAY W10640710
8MAY 8312709
9Screw
10MAY W10717210
11MAY 3405156
12MAY 8533971
13SCREW
14MAY W10562155
15MAY 3348629
16MAY 8559800
17MAY W10316616
18MAY W10558463
19MAY W10117655
20MAY W10692612
21MAY W10185992
22Switch, Rotary Temperature
