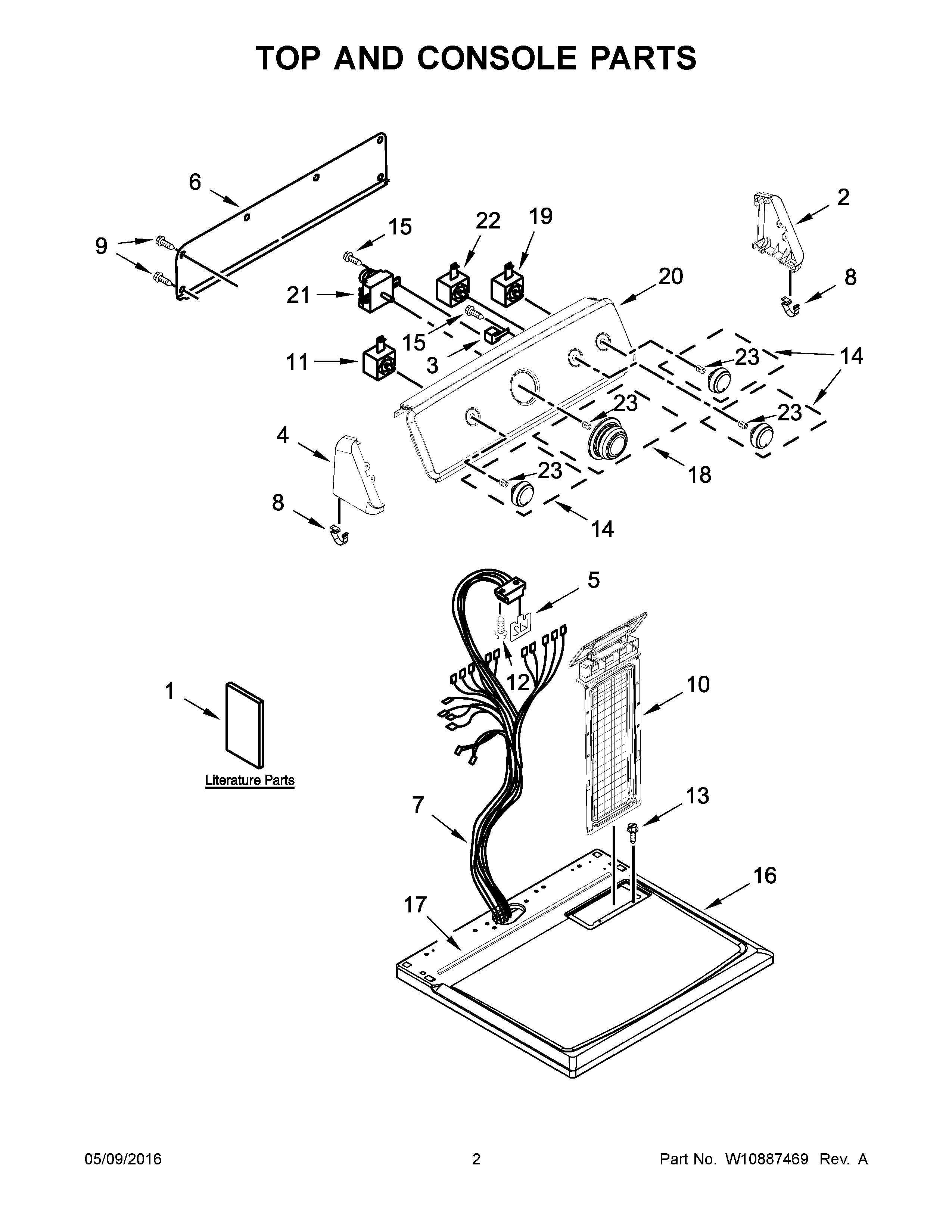

MGDC415EW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10876314
1	MAY W10562354
1A	MAY W10848818
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	MAY W10476828
6	MAY W10103406
7	MAY W10865740
8	MAY 8312709
9	Screw
10	MAY W10717210
11	MAY 3405156
12	MAY 8533971
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY 8559800
17	MAY W10316616
18	MAY W10558463
19	MAY W10117655
20	MAY W10692612
21	MAY W10185992
22	Switch, Rotary Temperature
23	Spring, Clip Knob
