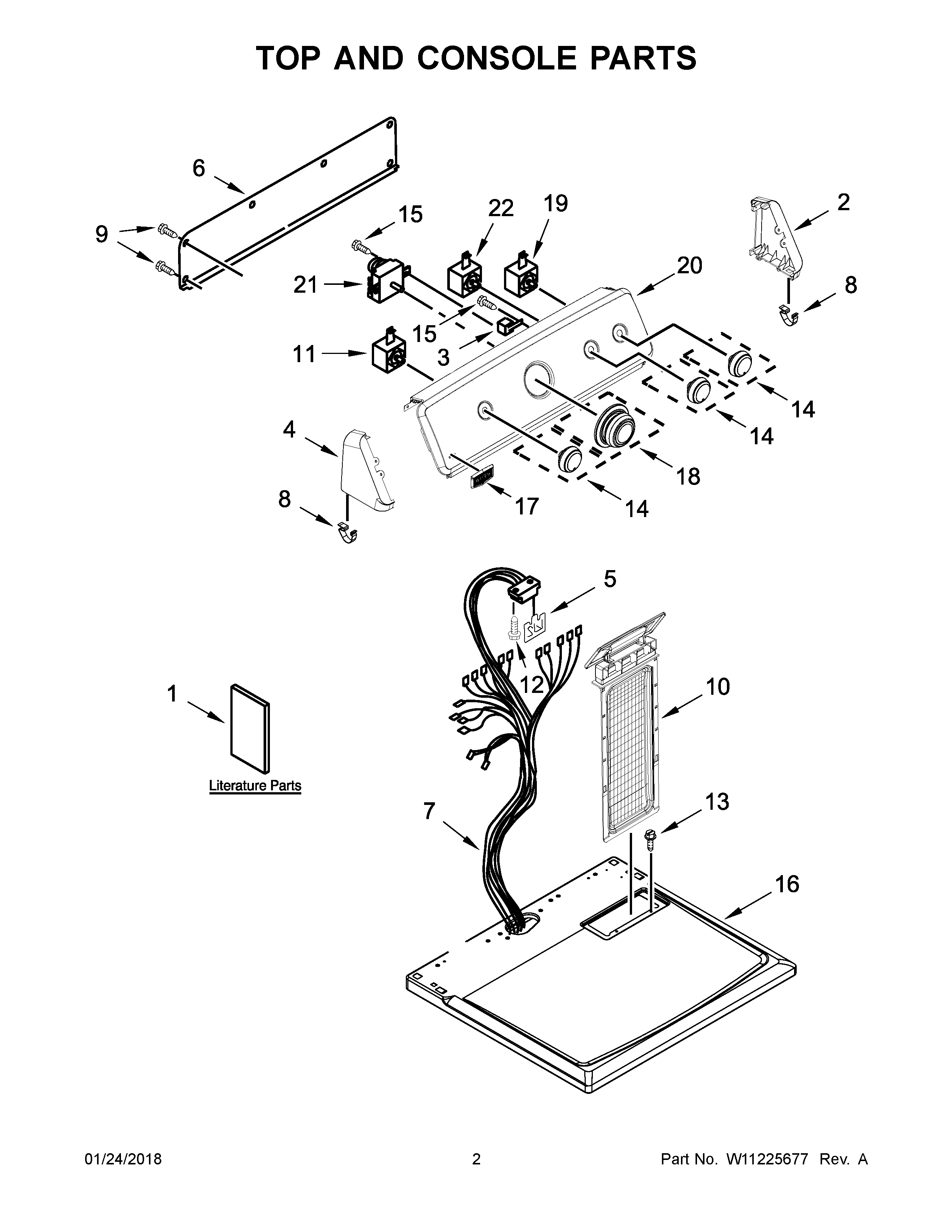

MGDC465HW0 02 – TOP AND CONSOLE PARTS

MGDC465HW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGDC465HW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10848818
1B	MAY W10876314
1	MAY W11185722
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	MAY W10476828
6	MAY W10103406
7	MAY W10865740
8	MAY 8312709
9	MAY WP693995
10	MAY W10717210
11	MAY 3405156
12	MAY 8533971
13	SCREW
14	MAY W10562155
15	MAY WP90767
16	MAY 8559800
17	BADGE
18	MAY W10558463
19	MAY W10117655
20	MAY W11178666
21	MAY W10185992
22	Switch, Rotary Temperature
