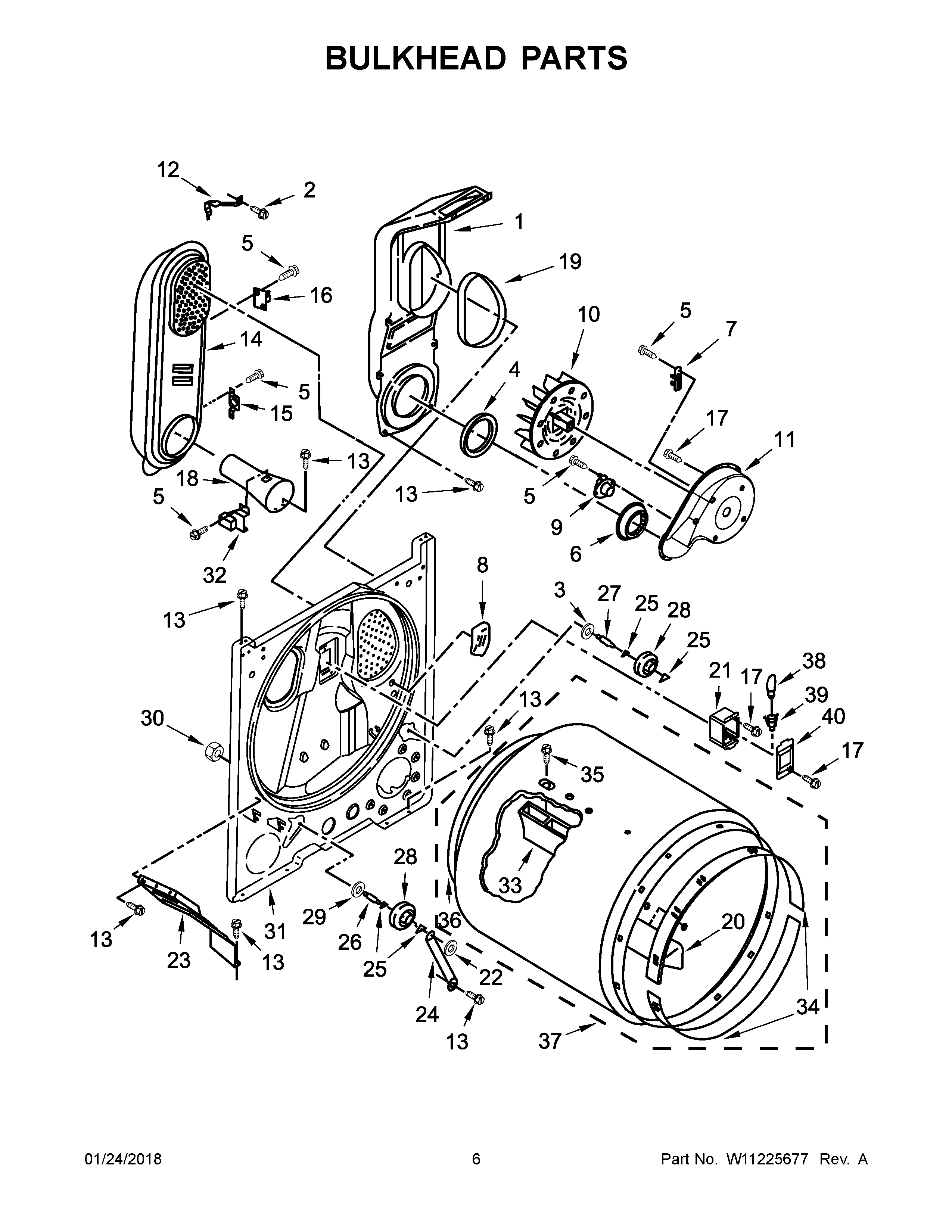

MGDC465HW0 04 – BULKHEAD PARTSadmin2025-04-26T11:30:52+00:00MGDC465HW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, LINT CHUTE |
| 2 | Screw |
| 3 | MAY WP3388703 |
| 4 | MAY 347139 |
| 5 | MAY WP90767 |
| 6 | MAY W10389567 |
| 7 | MAY WP3392519 |
| 8 | PAD, SENSOR |
| 9 | MAY 8318268 |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | MAY 279771 |
| 13 | SCREW |
| 14 | BOX, HEATER (96C) |
| 16 | KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) |
| 17 | MAY WP488729 |
| 18 | FUNNEL, BURNER LIGHT |
| 19 | MAY WP339956 |
| 20 | BAFFLE, DRUM (SHORT) |
| 21 | MAY 8578825 |
| 22 | MAY WP90296 |
| 23 | BRACKET, BULKHEAD CHUTE |
| 24 | BRACKET, SUPPORT |
| 25 | MAY WPW10512946 |
| 26 | MAY WPW10359270 |
| 27 | MAY WPW10359269 |
| 28 | MAY 3397590 |
| 29 | WASHER |
| 30 | MAY W11229607 |
| 31 | BULKHEAD |
| 32 | MAY WP338906 |
| 33 | BAFFLE, DRUM (LONG) |
| 34 | Bearing, Ring |
| 35 | MAY W10219342 |
| 36 | SEAL, REAR DRUM |
| 37 | ASSEMBLY, DRUM (COMPLETE) |
| 38 | MAY 3406124 |
| 39 | MAY W10214261 |
| 40 | MAY 3402841 |
