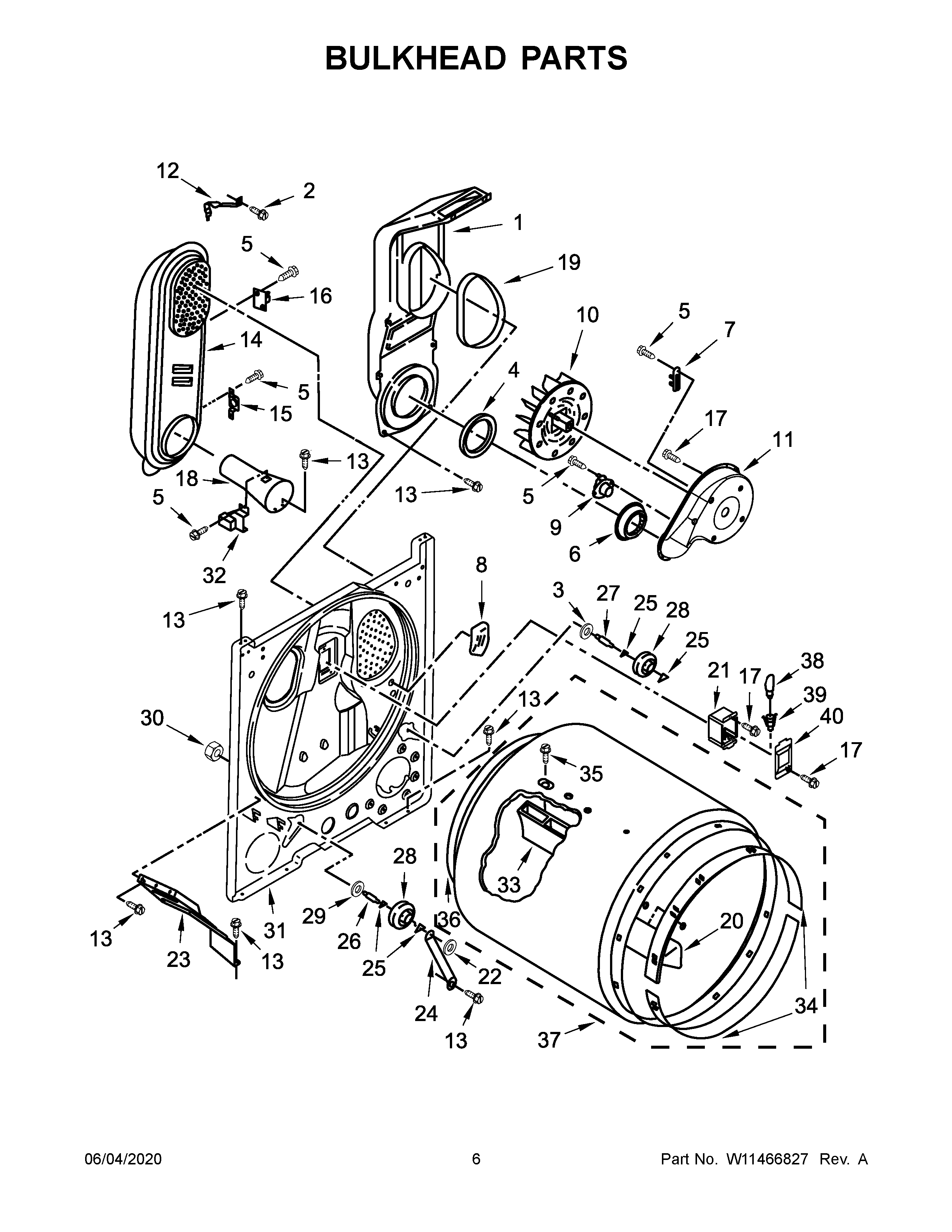

MGDC465HW1 04 – BULKHEAD PARTS

MGDC465HW1 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8W11545746 Whirlpool Sensor
9WP8318268 Whirlpool Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
17WP488729 Whirlpool Refrigerator Door Screw
18WP8066049 Whirlpool Funnel Assembly
19SEAL
20WP3403636 Whirlpool Drum Baffle
218578825 Whirlpool Bracket
22WP90296 Whirlpool Clip
23W11398682 Whirlpool Bracket
24W11684613 Whirlpool Bracket
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26SHAFT SUPPORT ROLLER DRYER
27SHAFT SUPPORT ROLLER DRYER
28WPW10314173 Whirlpool Dryer Drum Support Wheel
29WP348197 Whirlpool Washer Assembly
30W11229607 Whirlpool Nut
31W10828905 Whirlpool Bulkhead OS1
32WP338906 Whirlpool Dryer Gas Sensor
33BAFFLE-DRM
34279441 Whirlpool Front Bearing Ring
35W10853898 Whirlpool Screw
36W10612022 Whirlpool Felt Seal
37W10899578 Whirlpool Dryer Drum Assembly
38WP22002263 Whirlpool Dryer 10W Light Bulb
39W11222979 Whirlpool Socket
40W11226088 Whirlpool Lens Assembly
