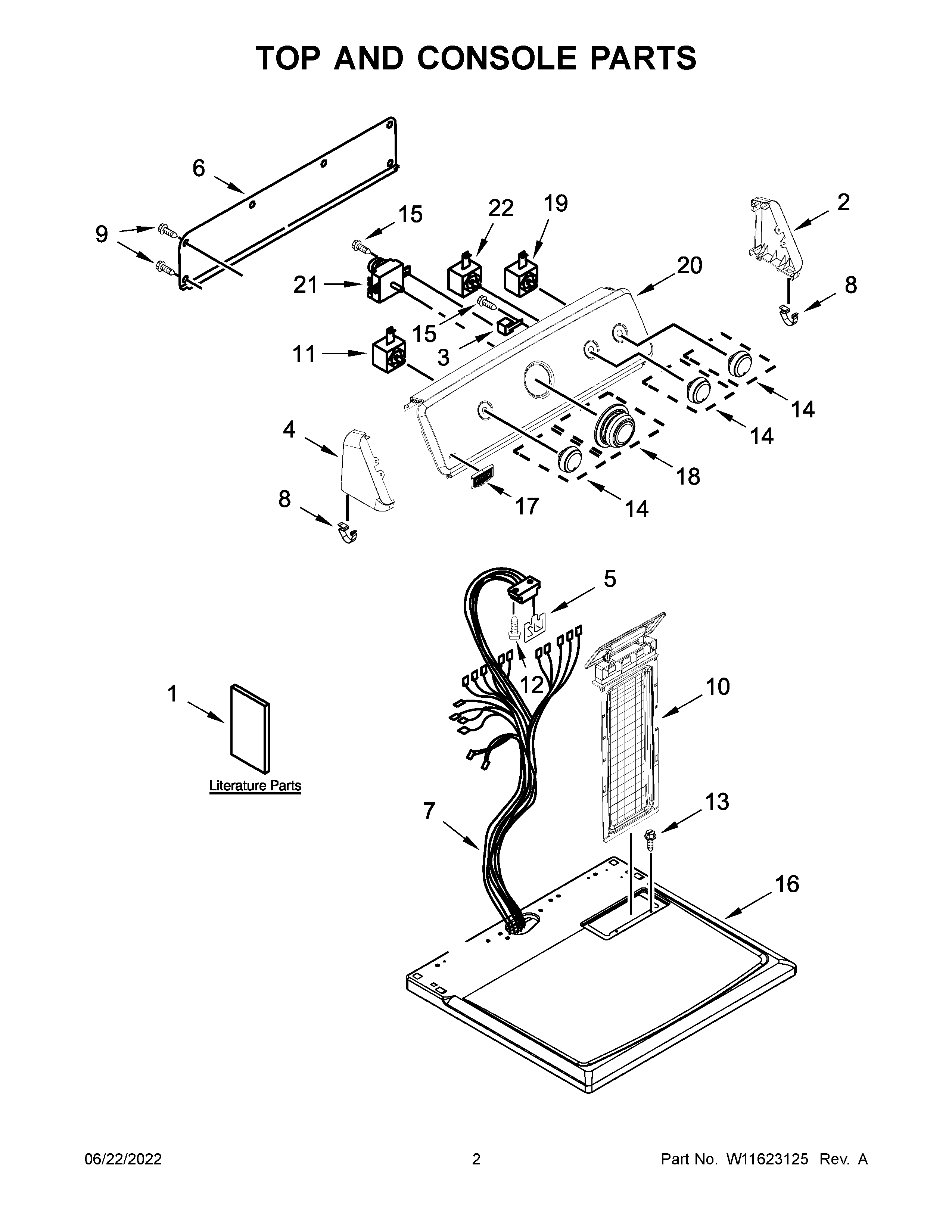

MGDC465HW2 02 – TOP AND CONSOLE PARTS
Written by
in
MGDC465HW2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
QUICK START GUIDE
1
OWNERS MANUAL
1B
WIRING DIAGRAM
2
WPW10193821 Whirlpool Endcap
3
WP694419 Whirlpool Buzzer Adjuster
4
WPW10193824 Whirlpool Endcap
5
WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
6
W10103406 Whirlpool Rear Panel
7
HARNESS, WIRING
8
WP8312709 Whirlpool Endcap Clip
9
WP693995 Whirlpool Screw
10
W11607443 Whirlpool Dryer Screen
11
8530169 Whirlpool Switch
13
W11693756 Whirlpool Screw Assembly
14
WPW10562155 Whirlpool Knob
15
WP90767 Whirlpool Screw
16
WP8563663 Whirlpool Top Assembly
17
WPW10612925 Whirlpool Microwave Nameplate
18
WPW10558463 Whirlpool Knob Assembly
19
WPW10117655 Whirlpool Dryer Start Switch
20
W11219540 Whirlpool Control Panel
21
TIMER
22
WP3405156 Whirlpool Switch
←
