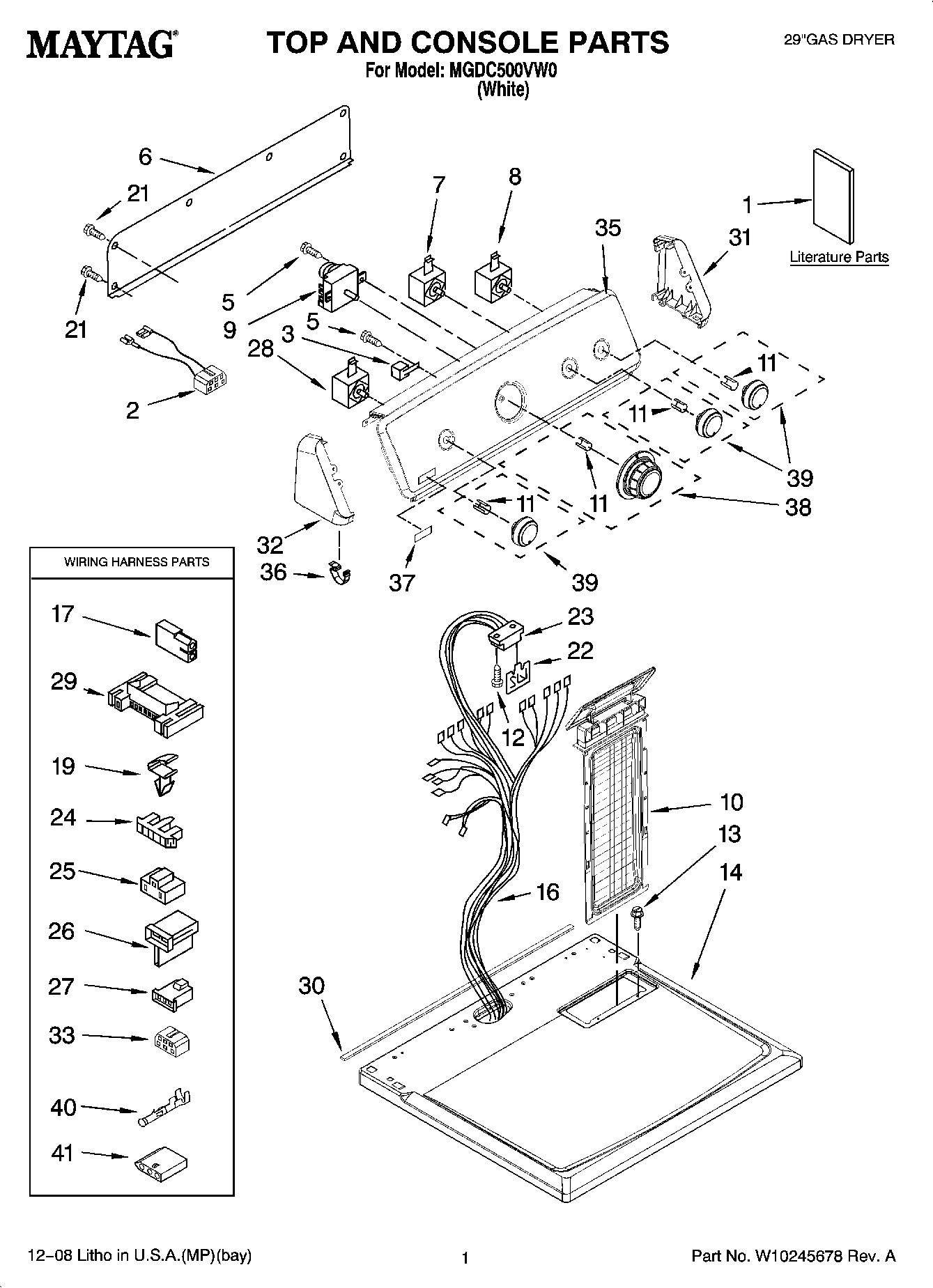

MGDC500VW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10118081
1	Instructions, Installation (English)
1	MAY W10089180
1	MAY W10088780
2	WIRE, JUMPER (BUZZER)
3	MAY 694419
5	MAY 8533971
6	MAY W10103406
7	Switch, Rotary Temperature
8	MAY W10117655
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	MAY 359625
13	SCREW
14	MAY W10225059
16	MAY W10111000
17	Plug, 2-Way Terminal
19	CLIP, HARNESS
21	Screw
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3405156
29	CONNECTOR (MOTOR)
30	MAY W10224672
31	Endcap (R.H.)
32	Endcap (L.H.)
33	Connector
35	MAY W10086737
36	MAY 8312709
37	MAY W10101390
38	MAY W10180219
39	MAY W10180218
40	Terminal
41	MAY 3936144
