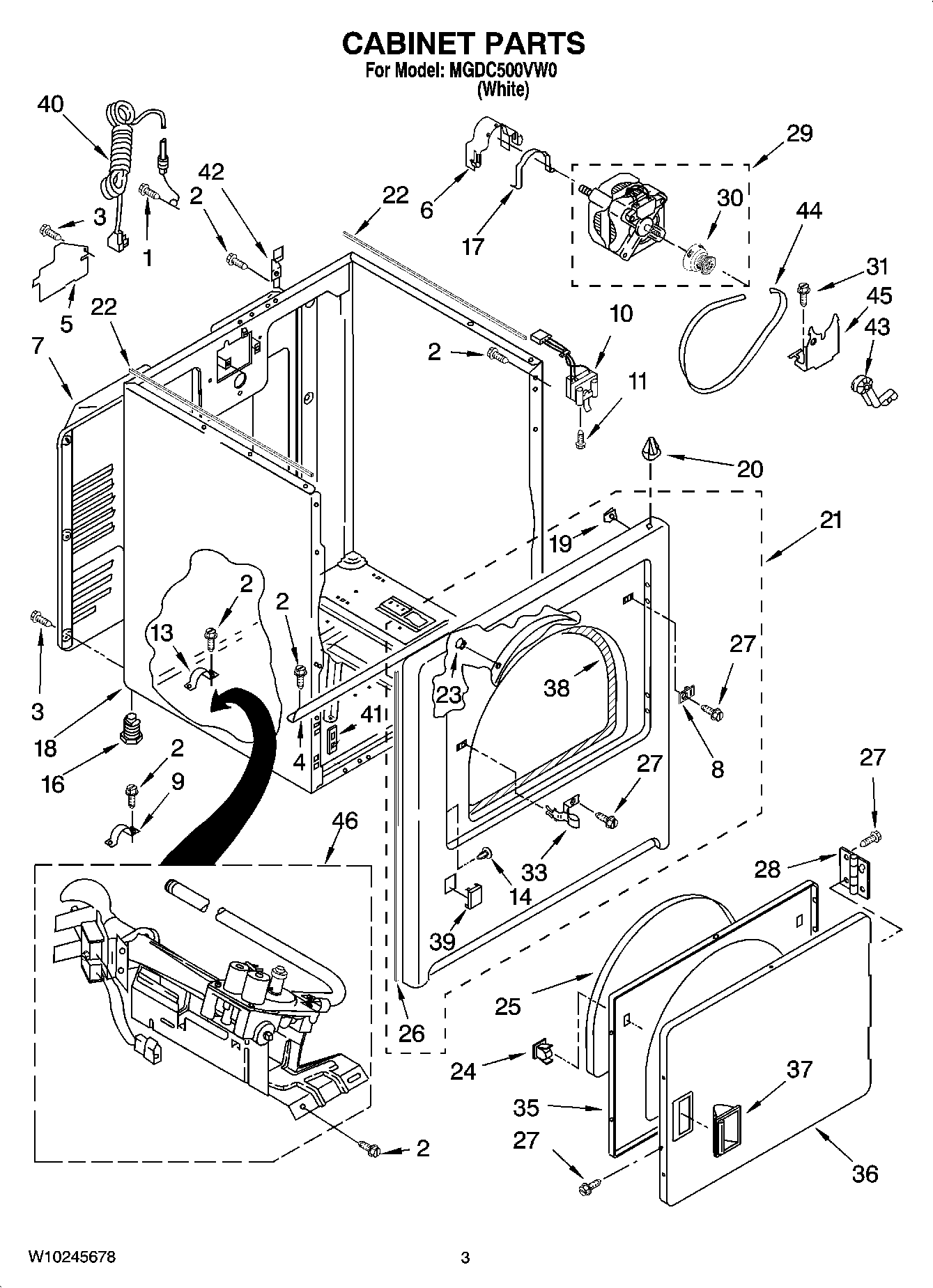

MGDC500VW0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
13	MAY 341029
14	PLUG, HINGE HOLES
16	MAY 279810
16	MAY 3392100
17	CLAMP, MOTOR MOUNT
18	SEAL-SPILL GUARD
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY W10224857
22	MAY W10224671
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	MAY W10224768
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	Motor Assembly
30	Pulley, Motor
31	BOLT
33	Strike, Door
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3406129
39	MAY 3394975
40	MAY 344020
41	MAY 3394083
42	Hinge, Top
43	IDLER ASSEMBLY
44	BELT, DRIVE
45	MAY 348780
46	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
