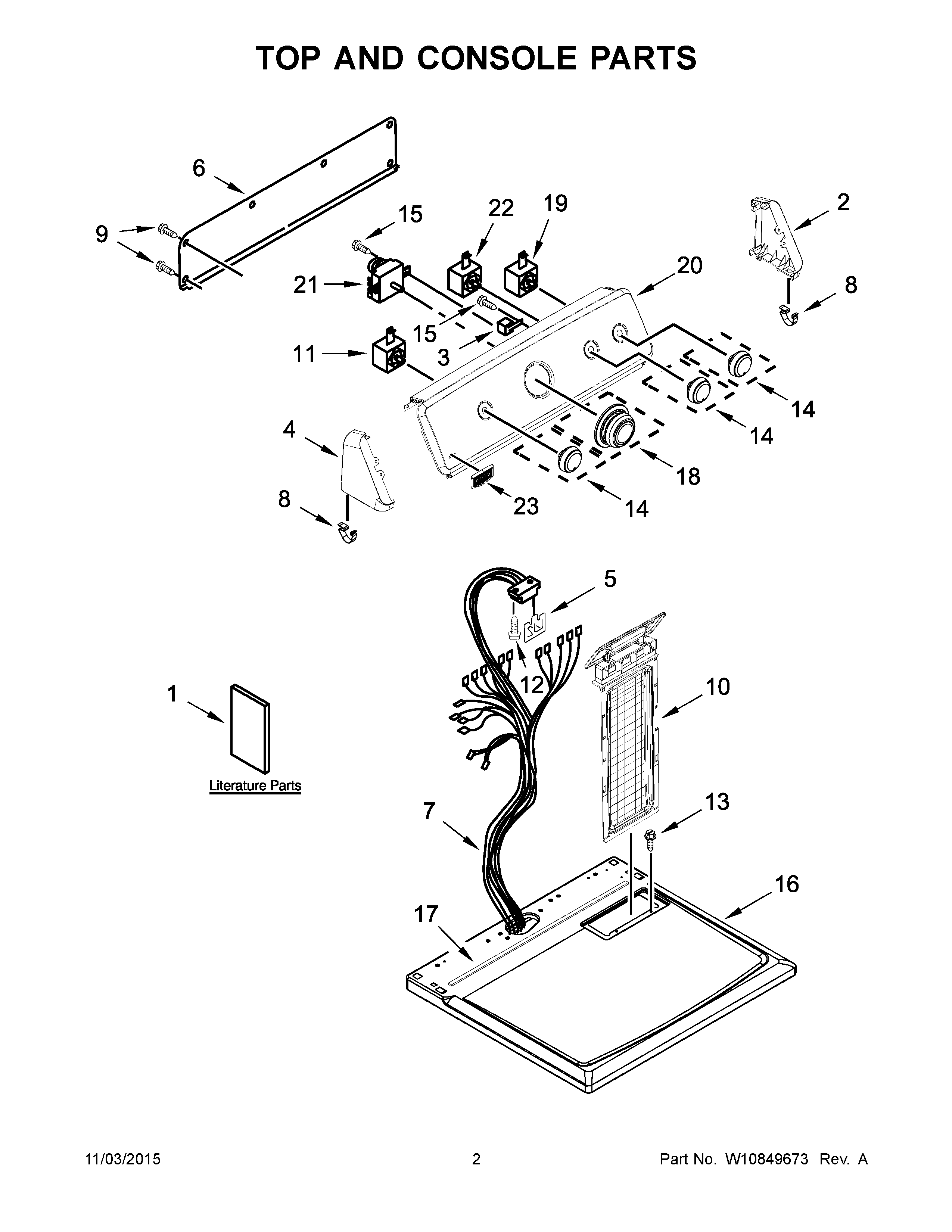

MGDC555DW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10562360
1	MAY W10562354
1B	MAY W10185994
2	Endcap (R.H.)
3	MAY 694419
4	Endcap (L.H.)
5	MAY W10476828
6	MAY W10103406
7	MAY W10640710
8	MAY 8312709
9	Screw
10	MAY W10717210
11	MAY 3405156
12	MAY 8533971
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY 8559800
17	MAY W10316616
18	MAY W10558463
19	MAY W10117655
20	ASSEMBLY, PANEL & BRACKET (WHITE)
21	MAY W10185992
22	Switch, Rotary Temperature
23	BADGE
